Baur BUKCI-3 User Manual

Cable and phase identifier for live lv working

Advertisement

Quick Links

BUKCI-3
CABLE and PHASE IDENTIFIER
For Live LV working
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUKCI-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baur BUKCI-3

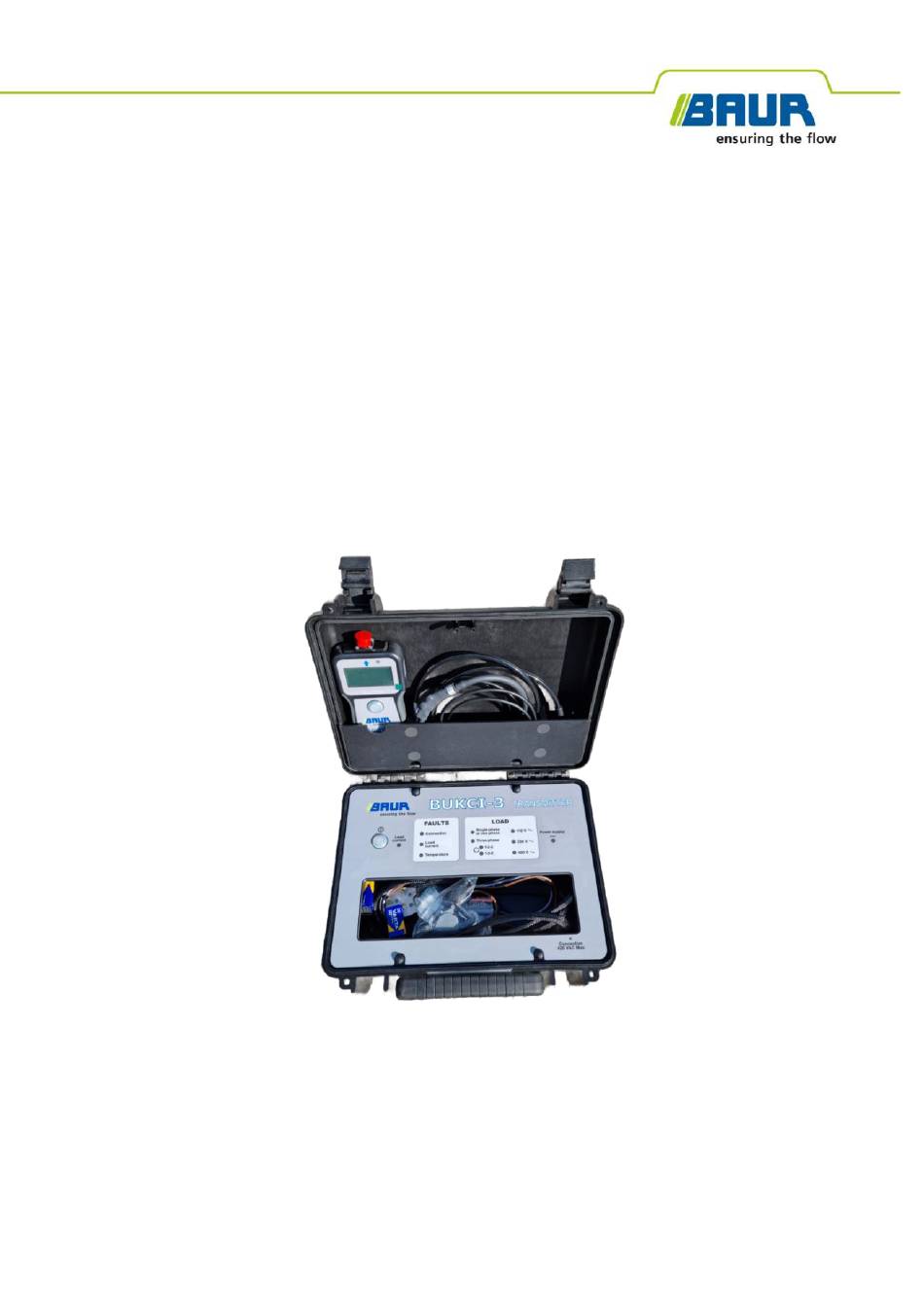

  • Page 1 BUKCI-3 CABLE and PHASE IDENTIFIER For Live LV working User Manual...
  • Page 2: Table Of Contents

    2.1. Operating principle ............5 2.2. System overview ............6 2.3. Connection overview............. 8 DETAILED OPERATION ............9 3.1. Transmitter ..............9 3.2. Receiver ..............11 TROUBLESHOOTING ............17 TECHNICAL SPECIFICATION ..........18 MAINTENANCE ..............19 CONTACT INFORMATION .............20 Page 2 of 20 UM-BUKCI-3-v240517...
  • Page 3: Safety Information

    Opening or dismantling the device should only be carried out by suitably qualified personnel under the supervision of BAUR Test Equipment Ltd. 1.2 Danger Levels Signal words within the instructions specify the danger levels.
  • Page 4: Warning Labels

    Dangerous Voltage Alternating Current IP standard – Protection against dust and water: IPXX TRANSMITTER IP standard – Protection against dust and water : IPXX RECEIVER Do not throw away with household waste Page 4 of 20 UM-BUKCI-3-v240517...
  • Page 5: Overview

    2. Overview The BUKCI-3 is intended for cable and phase identification on a live LV distribution network. It can operate in single-phase or three-phase mode on 50 or 60Hz networks at 115V, 230V, or 400V. The set is comprised of two elements, the transmitter and the receiver.
  • Page 6: System Overview

    2.2 System overview Rogowski Sensor Receiver for phase ID Pocket Cable ID Sensor Pocket Load Current Connection, button Voltage, and Phase Rotation indication Fault indicators Fuses and elbow Connection connectors cables Page 6 of 20 UM-BUKCI-3-v240517...
  • Page 7 1. Transmitter 2. Connection cables 3. Receiver 4. Cable identification sensor 5. Phase identification sensor 6. Spare fuses 7. L shaped plug-in terminal connector Page 7 of 20 UM-BUKCI-3-v240517...
  • Page 8: Connection Overview

    2.3 Connection overview Receiver operation button Page 8 of 20 UM-BUKCI-3-v240517...
  • Page 9: Detailed Operation

    3. Detailed operation 3.1 Transmitter Caution : BUKCI-3 Transmitter is not water- proof. If used in wet weather, place the unit under shelter. Some protection is given if the guidelines below are followed.  Rest the lid on the locks Fold down the ...
  • Page 10 Engineering judgement then needs to be applied, to identify the desired cable, by comparing all cables concerned. Page 10 of 20 UM-BUKCI-3-v240517...
  • Page 11: Receiver

    It is possible to force a power off using the power on/off menu: press the button for at least 4 seconds. When the menu appears, choose the yes or no option by quickly pressing the button and validating using a long press. Page 11 of 20 UM-BUKCI-3-v240517...
  • Page 12 CABLE SEARCHING step: Put the sensor on the cable to be investigated. Wait for the bar graph to become stable, and check for signal. Presence of signal will appear as follows: Page 12 of 20 UM-BUKCI-3-v240517...
  • Page 13 It is necessary to systematically test every cable, then to select the maximum level obtained which designates the cable to be identified: Page 13 of 20 UM-BUKCI-3-v240517...
  • Page 14 Connect the flexible Rogowski coil used for phase identification to the receiver, it will be automatically recognised. The text PHASE SEARCHING will appear on the display. Close the Rogowski coil around the selected phase. Page 14 of 20 UM-BUKCI-3-v240517...
  • Page 15 • First step: Identify the first phase and the neutral • Second step: Connect the transmitter to another phase and the neutral and proceed as above to identify a second phase. The third phase is identified by deduction. Page 15 of 20 UM-BUKCI-3-v240517...
  • Page 16 L2 is the last one to be identified by deduction. If no signal at all is detected, the receiver will only display 2 hyphens ( ). The display of a value in dB necessarily means that a signal has been detected. Page 16 of 20 UM-BUKCI-3-v240517...
  • Page 17: Troubleshooting

    The current drawn is too weak or too strong compared to its nominal value (it is usually the sign of a failure, it should never happen in normal operation). Return the device to Baur Test Equipment Ltd for troubleshooting Page 17 of 20 UM-BUKCI-3-v240517...
  • Page 18: Technical Specification

    115 to 400 VAC ± 10% between L1 & L2 Water and dust IP21 IP53 protection rating Electrical safety IP2X IP2X protection rating Fuse for Connection HPC 30KA (3.3 x 32) 2A Cable A000V Page 18 of 20 UM-BUKCI-3-v240517...
  • Page 19: Maintenance

    6. Maintenance Opening or dismantling the device should only be carried out by BAUR Test Equipment Ltd. Never use solvent, or a solvent-based product to clean the system nor its accessories. For cleaning and maintenance of BUKCI-3, it is sufficient to: Check that the sensors are clean by wiping with a dry cloth •...
  • Page 20: Contact Information

    BAUR Test Equipment Ltd We reserve the right in the interests of our customers to make amendments as a result of further technical development.
