Canada Docks Floating Hexagon Wheel Kit Manual

Advertisement

Quick Links

Floating Hexagon
Wheel Kit
Read this manual and related assembly instructions before attempting to assemble the parts
enclosed to ensure that your new CanadaDocks System is assembled safely and correctly.
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Floating Hexagon Wheel Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for Canada Docks Floating Hexagon Wheel Kit

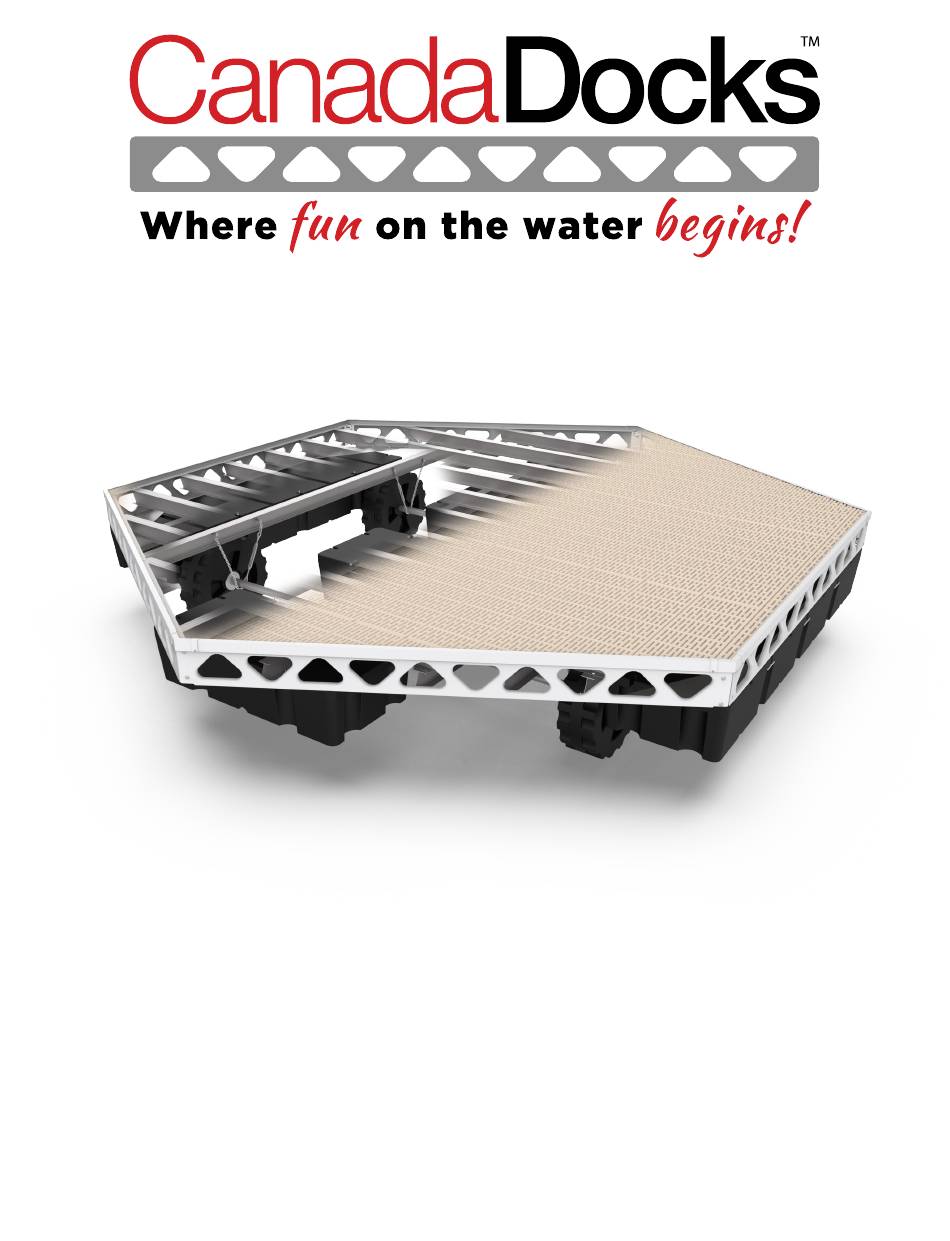

  • Page 1 Floating Hexagon Wheel Kit Read this manual and related assembly instructions before attempting to assemble the parts enclosed to ensure that your new CanadaDocks System is assembled safely and correctly. Page 1...
  • Page 2: Tools Required

    INCLUDED IN KIT: QL25 W452 TB25 CH04 (Approx. 4” long) CH27 (Approx. 27” long) NL38 CB15S Tools Required: 9/16” SOCKET WITH RATCHET TO Power Drill SUIT OR 9/16” WRENCH with 13/32” Drill Bit Measuring MARKING TOOL Tape Build the dock frame as per Large Floating (14’x16’) Hexagon assembly instructions EXCEPT FOR THE TWO INNER FLOATS which will be kept unfastened (see image below).
  • Page 3 Open the retaining wire on the Hitch Pin (GP1). Place the pin into the holes on either side of the axle (AX1). Close the retaining wire on both Hitch Pins (Shown in image above). Repeat for both axles. W452 W452 W452 Hub should face end of axle...
  • Page 4 HELP REQUIRED Float Indent When positioning the axles AXLE LOCATIONS ensure they rest under the indent location on the floats. Place the dock on a flat surface. Using a lever or jack, lift one end of the dock and place the axle (AX1) assembly under the float (as shown above). Do the same for the second axle (AX1) assembly on the opposite end of the dock.
  • Page 5 Drill hole locations for axle Approximately 20” Centre of the axle For each wheel you will need to drill two holes approximately spread 20” apart from the axle of each wheel (see image above). Make each hole 1 - 2 inches above the bottom of the joist.
  • Page 6 Pull the chain assembly tight around the axle and position the end of it near the end of the joist and approximately 1” above the joist. With a marking tool, mark the locations for a second hole to drill. Drill a hole with a 13/32” bit to accommodate the carriage bolt (CB15S) for the next step.
  • Page 7 Turn turnbuckle to tighten assembly onto the axle shaft. Chains should face the inside of the dock. Ensure that the chain assemblies are placed on the joists as shown above. Follow STEPS 7-12 for all wheels on both axles. Page 7...
  • Page 8 Please leave us a Google review We’d love to hear from you and see your photos! Phone 705.434.0359 1.877.434.0359 Email info@canadadocks.ca Address CanadaDocks.ca 3690 Adjala-Tecumseth Tl, Beeton ON L0G 1A0 /CanadaDocks Page 8 Rev 12 18.11.24...
