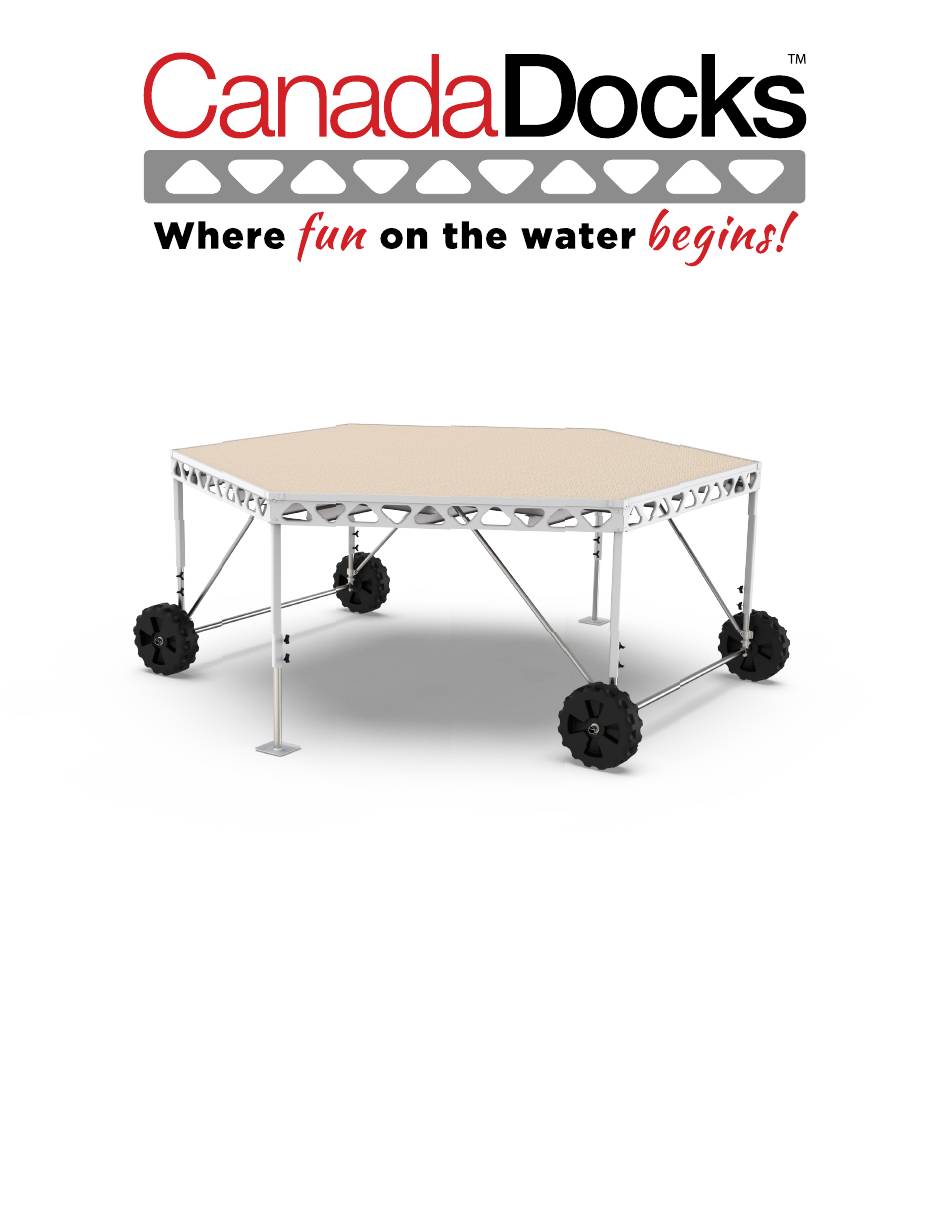

- Page 1 Standing Hexagon Wheel Kit Read this manual and related assembly instructions before attempting to assemble the parts enclosed to ensure that your new CanadaDocks System is assembled safely and correctly. Page 1...
-
Page 2: Tools Required
INCLUDED IN KIT: A single wheel kit includes all the material needed for two axles. Please refer to the chart at the end of the instructions to determine the number of kits needed for your project. NL38 CB35S NG38 CB15S W452 DWSB1 CB075S... - Page 3 Adjustment Clamps Loosen the adjustment knobs on each of the dock legs by turning the knobs counter-clockwise (see above image). This will free the legs so they may be removed. It is recommended to use one to two people to lift a corner of the dock upwards while another person removed one leg from the dock at a time.
- Page 4 CB35S WKAC1 WKAC1 CB35S WKAC1 Leg from Step 2 NG38 NL38 NL38 NG38 Clamp Assembly Legs from Step 1-2 Install a clamp assembly for each side of the axle (AX1). W452 W452 Slide the wheel (WL1) and washer (W452) onto the axle frame (see image above). Slide open the retaining wire on the hitch pin (GP1).
- Page 5 HELP RECOMMENDED Use one person to hold a corner of the dock upwards. Insert one end of the axle assembly at a time into the legs of the dock. *Perform this step for both axle assemblies. Adjust the length of the legs appropriate to the depth of water you will installing the dock in. Turn the adjustment knobs clockwise to tighten the legs.
- Page 6 NL38 CB15S HWKB65 Fasten brace on each of the 4 legs (see image above). Keep the bolts loose in order to easily position the braces in the following steps. Swing one of the four braces upwards until you make contact with joists. With the brace raised on the joist, place a mark.
- Page 7 Drill a hole using a 13/32” drill bit. NL38 CB075S Fasten brace using the provided hardware. Repeat STEPS 9-13 for the other 3 braces. Tighten all braces on the bottom of each leg. PLEASE NOTE: Ensure all hardware is tightened before use.
- Page 8 Please leave us a Google review We’d love to hear from you and see your photos! Phone 705.434.0359 1.877.434.0359 Email info@canadadocks.ca Address CanadaDocks.ca 3690 Adjala-Tecumseth Tl, Beeton ON L0G 1A0 /CanadaDocks Page 8 Rev 08 20.11.24...
