Device Features/Functionality
ON/OFF Switch
Controls power to device
Selector Switch
Press UP/DOWN toggles the selections in each menu screen
Press IN changes the menu screen
Press IN for 3+ seconds changes the flash pattern programming mode types
LEFT Button
Sends programming information to the light
In Parametric Mode, changes the PRIMARY function (Pulse, Split, Rate,
Brightness)
In Comprehensive Mode, programs the light as phase "A"
Hold together with RIGHT button for 3+ seconds to enter LOCK/UNLOCK mode
RIGHT Button
Sends programming information to the light
In Parametric Mode, changes the SECONDARY function (Pulse, Split, Rate,
Brightness)
In Comprehensive Mode, programs the light as phase "B"
Hold together with the LEFT button for 3+ seconds to enter LOCK/UNLOCK mode
IR Window
Location where IR signal is transmitted to the light
Mini-USB Connector Used to charge the battery
Lanyard Post
Attach the supplied lanyard for easy carrying

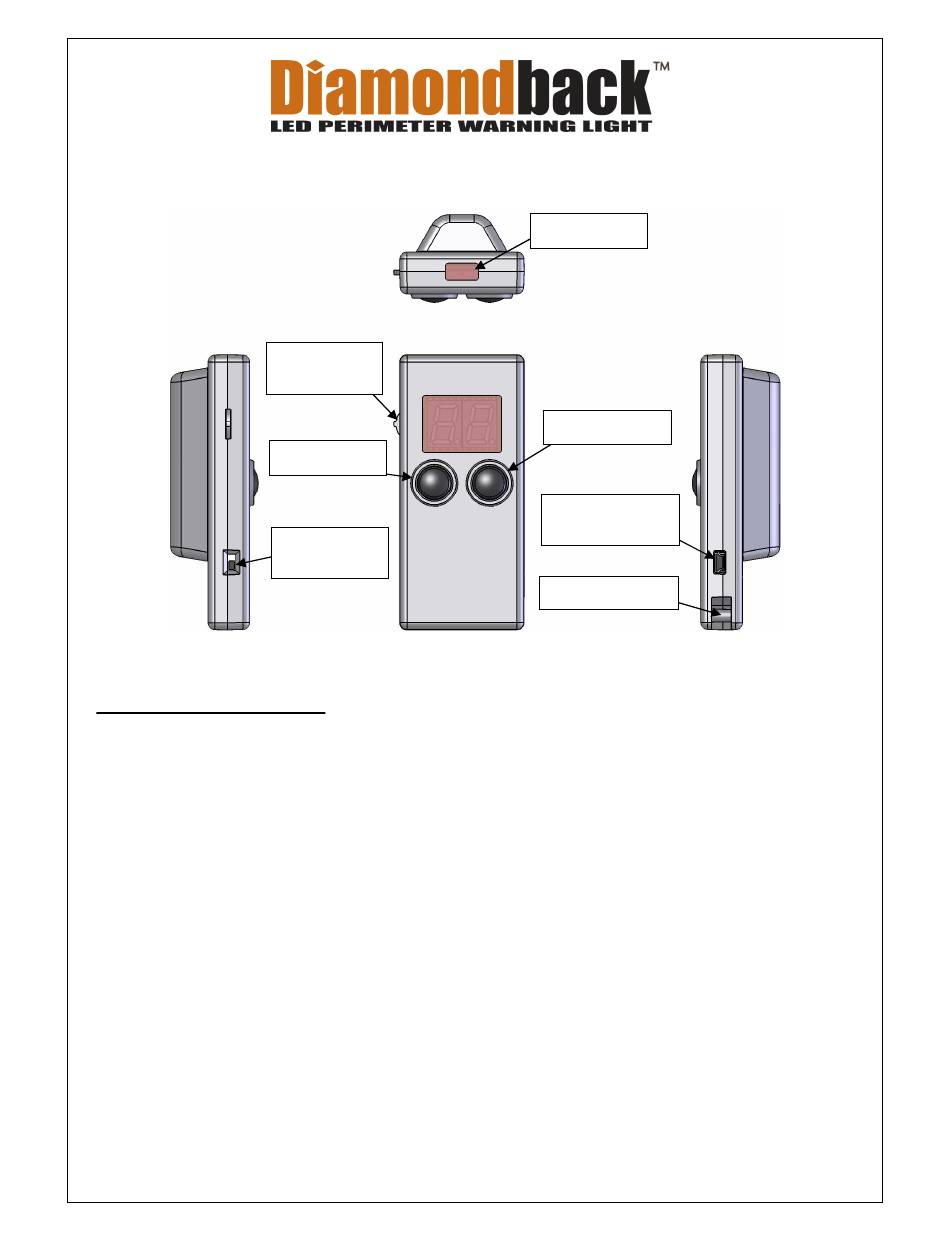

IR Programming Device Instructions
Selector
Switch
LEFT Button
ON/OFF
Switch
IR Window
RIGHT Button
Mini-USB 5 Pin
Connector
Lanyard Post
0Z30-2513-00, Rev. A
Advertisement
Related Manuals for Akron Brass Weldon Diamondback Series
Summary of Contents for Akron Brass Weldon Diamondback Series
- Page 1 IR Programming Device Instructions IR Window Selector Switch RIGHT Button LEFT Button Mini-USB 5 Pin Connector ON/OFF Switch Lanyard Post Device Features/Functionality ON/OFF Switch Controls power to device Selector Switch Press UP/DOWN toggles the selections in each menu screen Press IN changes the menu screen Press IN for 3+ seconds changes the flash pattern programming mode types LEFT Button Sends programming information to the light...
- Page 2 Device Menus: There are three menu screens available on the programming device. Parametric Programming Comprehensive Programming LOCK/UNLOCK When turning the device ON, the unit will start with the programming screen that was last displayed. The exception is the LOCK/UNLOCK screen. If the unit is turned off with the LOCK/UNLOCK screen displayed, the unit will return to the menu screen that was previously displayed.
- Page 3 Comprehensive Flash Pattern Mode: The comprehensive flash pattern mode allows the user to send a complete set of flash pattern information (Pulse, Split, Rate, Phase, etc.) to the light with a single button press. ALL flash pattern information on the light is changed. The device is shipped with five program sets. Rate Secondary Pulse...
- Page 4 Charging: The unit is supplied with a rechargeable 3.6 volt Li-Ion battery. To recharge the battery, connect the programming device with a personal computer (PC) using the cable provided. The computer must be ON. The programming device can be charged with the unit ON or OFF. If the unit is OFF, there will be no indication that the unit is charging.
