JMA UXP 78FX Series Installation Instructions

Installation Instructions
UXP-XXX-78FX
For 7/8" Annular Connectors for AVA5-50FX Cable
Power drill
Prep/strip tool
TQ-114-F18
7-16 DIN Male Compressed air

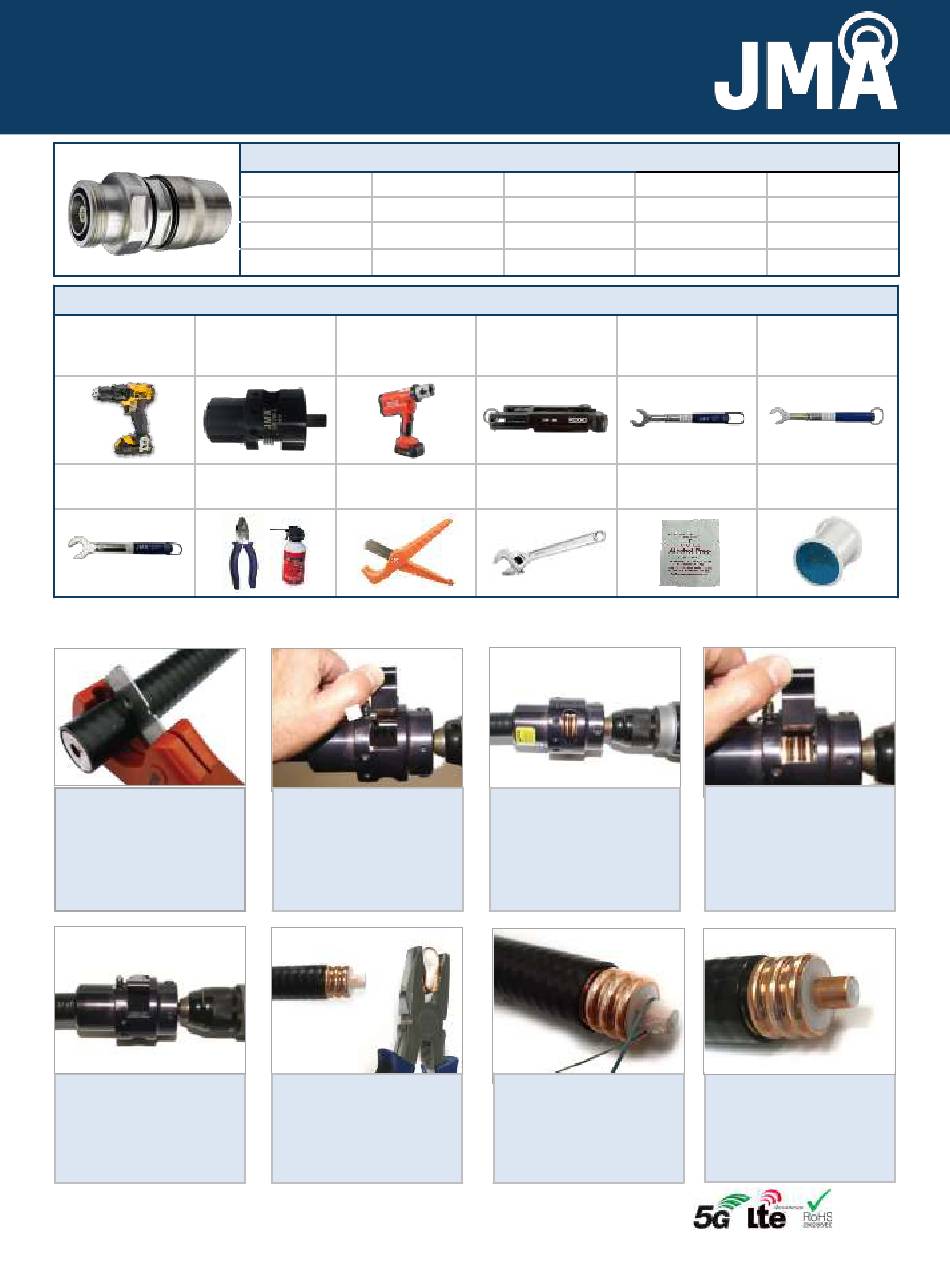

Step #1: Prep
Straighten cable and
position RDCUTTER-S in
the valley of corrugation
and cut off the cable
squarely.
Blade lever is shown fully
closed. Open lever, lock with
pin, and remove tool. Make
sure any remaining cable is
removed from tool.
©2023 JMA Wireless. All rights reserved. This document contains proprietary and confidential information. All products, company names,
brands, and logos are trademarks™ or registered® trademarks of their respective holders. All specifications are subject to change without
notice. Revised: October 26, 2023 +1 315.431.7100
Interface 7-16 DIN
Male UXP-DM-78FX
Female UXP-DF-78FX
Male push-pull
Tools/materials required
SP-78FX
HCG-CC
Pliers
RDCUTTER-S
Attach prep/strip tool to
drill. Open blade lever
and lock with pin. Insert
cable and actuate drill.
Remove cut outer
conductor and dielectric
slug with pliers.
customerservice@jmawireless.com
Connector models supported
N
UXP-NM-78FX
UXP-NF-78FX
HCG-
FRAMESET-78
Adjustable
wrench
Actuate drill until outer
conductor reaches fixed
stop; this will remove
jacket.
Use monofilament line
(10-20lb test) to remove
foam from the center
conductor, pulling the line
back and forth.
4.3-10 4.1-9.5
UXP-4MT-78FX UXP-MDM-78FX
UXP-4F-78FX
TQ-78-F8
TW1412
4.1-9.5
N type
4.3-10
Alcohol wipe Monofilament
(incl. w conn.)
Make sure leftmost blade is
positioned over valley and
rightmost blade will be
positioned over peak closest
to end of cable. Release
blade lever and continue until
cable is completely cut.
Properly stripped cable is
ready for connector
measurement marking. Three
full visible ridges are
acceptable. See that the cut
is made in the "valley."
line
