Videosec IDI-701W User Manual

Ip video intercom indoor station
Hide thumbs

Advertisement

Quick Links

Download this manual

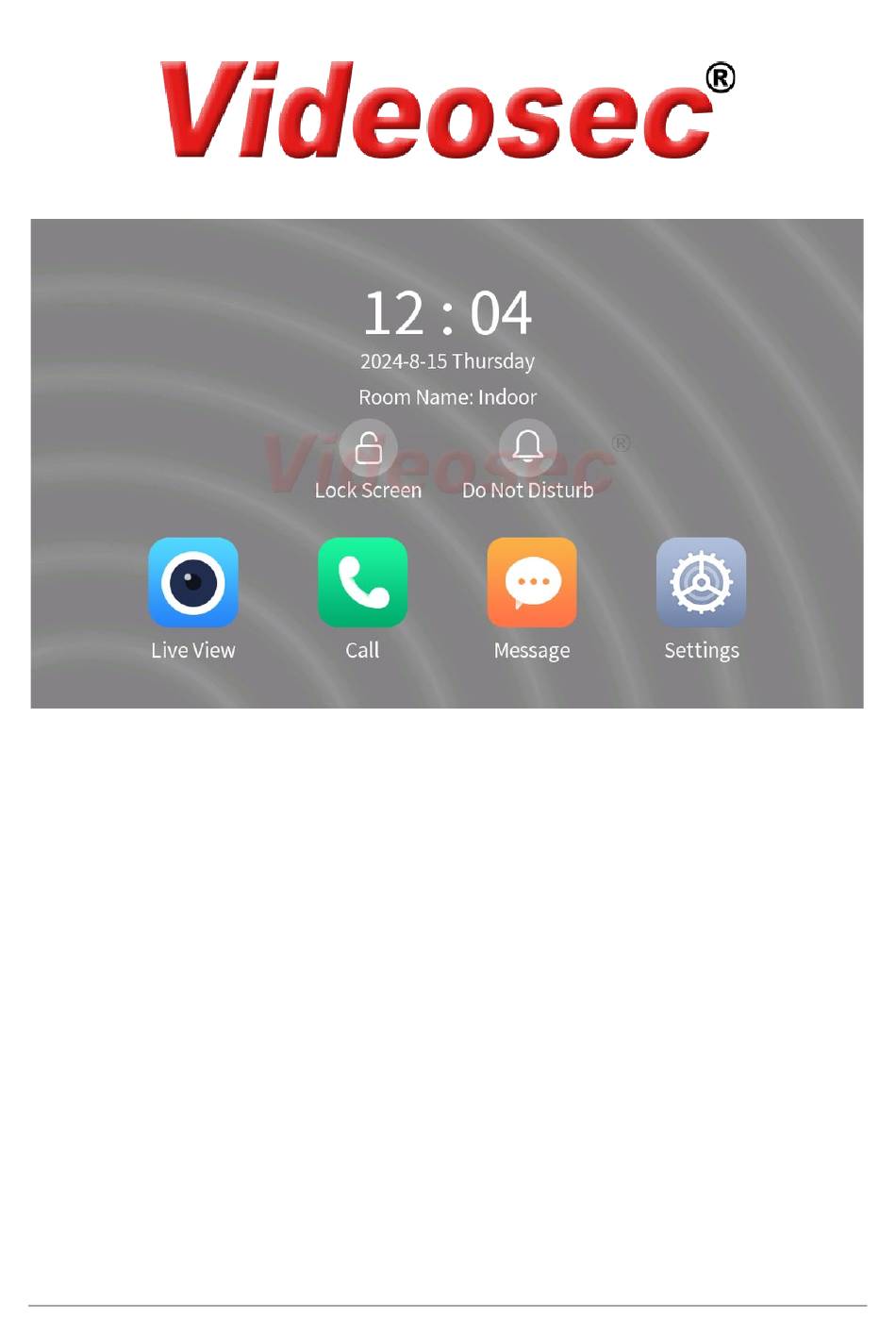

IDI-701W
IP Video Intercom Indoor Station
User Manual
v1.12
1
videosec.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDI-701W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videosec IDI-701W

Summary of Contents for Videosec IDI-701W

  • Page 1 IDI-701W IP Video Intercom Indoor Station User Manual v1.12 videosec.com...
  • Page 2 IDI-701W Bozsák Tamás Contents Description ..................................4 Connections ................................... 4 Cable description ............................. 4 Connection diagram ............................5 Installation ..................................5 Default settings ..............................5 Installation wizard ............................6 3.2.1 Settings that can be made on the outdoor unit, before adding ............8 Basic handling operations ...........................
  • Page 3 IDI-701W Bozsák Tamás 4.1.2 Receiving a call, opening the door lock ....................23 4.1.3 Door lock operation without a call ......................24 4.1.4 Activate microphone and speaker without a call................... 24 Access via browser, setting options ......................25 4.2.1 Login to the web interface ......................... 25 4.2.2...
  • Page 4 Videosec SMART IP cameras as an external video source can also be connected to it. It provides users with a wide range of safe and convenient uses.
  • Page 5 IDI-701W Bozsák Tamás 2.2 Connection diagram Example: Wired LAN connection with PoE supply 3 Installation 3.1 Default settings The default parameters of the indoor station and door station are consistent: IP address: 192.168.1.13 (wired LAN, DHCP enable) Username: admin Password: 123456 Note: Wi-Fi access mode is disabled by default.
  • Page 6 IDI-701W Bozsák Tamás 3.2 Installation wizard After connecting the power supply, the indoor unit in factory condition starts with a setup wizard that guides you through the basic and necessary settings. 1. Setting the user interface language on the indoor unit 2.
  • Page 7 IDI-701W Bozsák Tamás >> 5. Date and time settings 6. Setting the operating mode and location of the indoor unit In every system, only one Main, but even several Auxiliary indoor units are possible. Set the name of the Community set on the Main indoor unit also on the additional units to be added.
  • Page 8 IDI-701W Bozsák Tamás 8. Adding outdoor units Follow these steps to add: • select device (1) • click on the add icon (2) enter the device admin user password (3) • click the Confirm button (4) • √ after successful addition, a sign will be displayed in the Status column of the device (5) •...
  • Page 9 IDI-701W Bozsák Tamás By setting it up, a higher level of security can be achieved, when using it, extra care must be taken to ensure that the same registration password is set on all elements of the system. To set up the devices, you must still use the password set for the admin user! Set device location ...
  • Page 10 IDI-701W Bozsák Tamás 3.3 Basic handling operations 3.3.1 Main Screen Icon Description Live view: without an incoming call, it provides the possibility to display the image of the connected outdoor units and cameras, to open two-way audio, and to control the electric lock of the outdoor units.
  • Page 11 IDI-701W Bozsák Tamás 3.3.2.1 Outdoor unit The following options are available on this interface: Operation of lock control outputs Start/stop two-way audio communication Start/stop video recording Taking a snapshot 3.3.2.2 IP camera >> Start/stop video recording Taking a snapshot videosec.com...
  • Page 12 IDI-701W Bozsák Tamás 3.3.3 Call (Dialer / Call log) By touching the Call ( ) icon, the dialer appears, from which you can directly call another indoor unit connected to the system, as well as the call log. To make a call, you must dial a number derived from the indoor Location settings.
  • Page 13 IDI-701W Bozsák Tamás 3.3.4 Message Touching the List icon ( ) displays the Snapshots/Videos taken by the given indoor unit, as well as the messages recorded by the Message recorder. The number of unanswered messages is displayed in the upper right corner of the icon: >>...
  • Page 14 IDI-701W Bozsák Tamás 3.4.1 Sounds 3.4.1.1 Call settings • Ringtone: select the ringtone of the indoor unit • Call Duration: in case of a call initiated from an outdoor unit, the indoor unit remains in Live view for the set time Ring duration: in case of a call initiated from an outdoor unit, the ringing time of the indoor •...
  • Page 15 IDI-701W Bozsák Tamás 3.4.2.1 Display settings Enable and schedule display screen saver mode 3.4.2.2 Time settings Setting the system date and time 3.4.2.3 Password settings Currently the Door Opening Password function cannot be used. 3.4.2.4 I/O settings Currently the I/O interfaces cannot be used.
  • Page 16 IDI-701W Bozsák Tamás >> 3.4.3 Wi-Fi By default, Wi-Fi network connection is not enabled on the indoor unit. After activating the function, the device searches for available 2.4 GHz networks. Choose which one you want to connect to, then enter the data required for connection in the window that appears.
  • Page 17 IDI-701W Bozsák Tamás 3.5 Sytem settings Select Setup/Administrative Settings to open system settings. Enter the password for the admin user to log in. 3.5.1 Indoor station Indoor unit mode: Main/Extension indoor unit • Login time without a password: set how long after the last password login, the device asks •...
  • Page 18 A total of 20 units can be used in one system: 1 main indoor unit, max. 19 • outdoor units and IP cameras in any distribution From IP cameras, it is possible to add Videosec Smart IP cameras with Private • protocol, secondary stream, from the same local network.
  • Page 19 IDI-701W Bozsák Tamás 3.5.2.2 Indoor stations In the case of additional indoor units, they appear here and can be set as Extension units. 3.5.2.3 Device discovery Automatic search for outdoor units. 3.5.3 Administrator password Changing the password for the admin user: 3.5.4 Administration configuration...
  • Page 20 IDI-701W Bozsák Tamás o P2P: enable cloud-based access o Add without signup: Add to the Guard Live application without registration on the star4live.com cloud server o Address: cloud server address o Register code: the device's unique registration code for adding and connecting to the cloud server o Device status: shows the status of the P2P connection.
  • Page 21 IDI-701W Bozsák Tamás 4 Mobil application Receiving and managing calls from outdoor units and using the lookout function can be accessed through the Guard Live application. Before use, install the Guard Live ( ) application from the application store (Google Play/App Store) corresponding to the operating system of the mobile phone you want to use, and then create a user account.
  • Page 22 IDI-701W Bozsák Tamás Touch the device image to open the live image: videosec.com...
  • Page 23 IDI-701W Bozsák Tamás Basic operations with mobile application 4.1.1 Enable/disable video call notifications 1. To enable call alerts from each device, click the “•••” sign in the upper right corner of the device thumbnail on the Home page. 2. Touch the Setup menu item 3.
  • Page 24 IDI-701W Bozsák Tamás 4.1.3 Door lock operation without a call To operate the electric lock connected to the outdoor unit without a call, tap the Unlock icon in the live view of the device: 4.1.4 Activate microphone and speaker without a call With the help of the microphone in the outdoor unit, it is possible to listen to the surrounding sounds without receiving a call, and/or even to speak on the phone.
  • Page 25 The software can be found under the menu item Support/Software/NVR, IP camera, DVR software (Smart IP platform) or can be downloaded from the following link: https://videosec.com/download/software1/GuardTools-R1122.2.6.1(IN).exe The GuardTools program is capable of detecting Videosec intercoms, cameras and recorders connected to the local network. Default settings: IP address: 192.168.1.13 (wired LAN, DHCP enabled)
  • Page 26 IDI-701W Bozsák Tamás 4.2.2 Setting the language of the user interface displayed on the display The language of the user interface displayed on the display of the indoor unit can be changed in the menu item Setup/System/Maintance (default language: English) After changing the language, the device will restart automatically.
  • Page 27 IDI-701W Bozsák Tamás After making the necessary settings, we wish you long-term, problem-free use! videosec.com...
