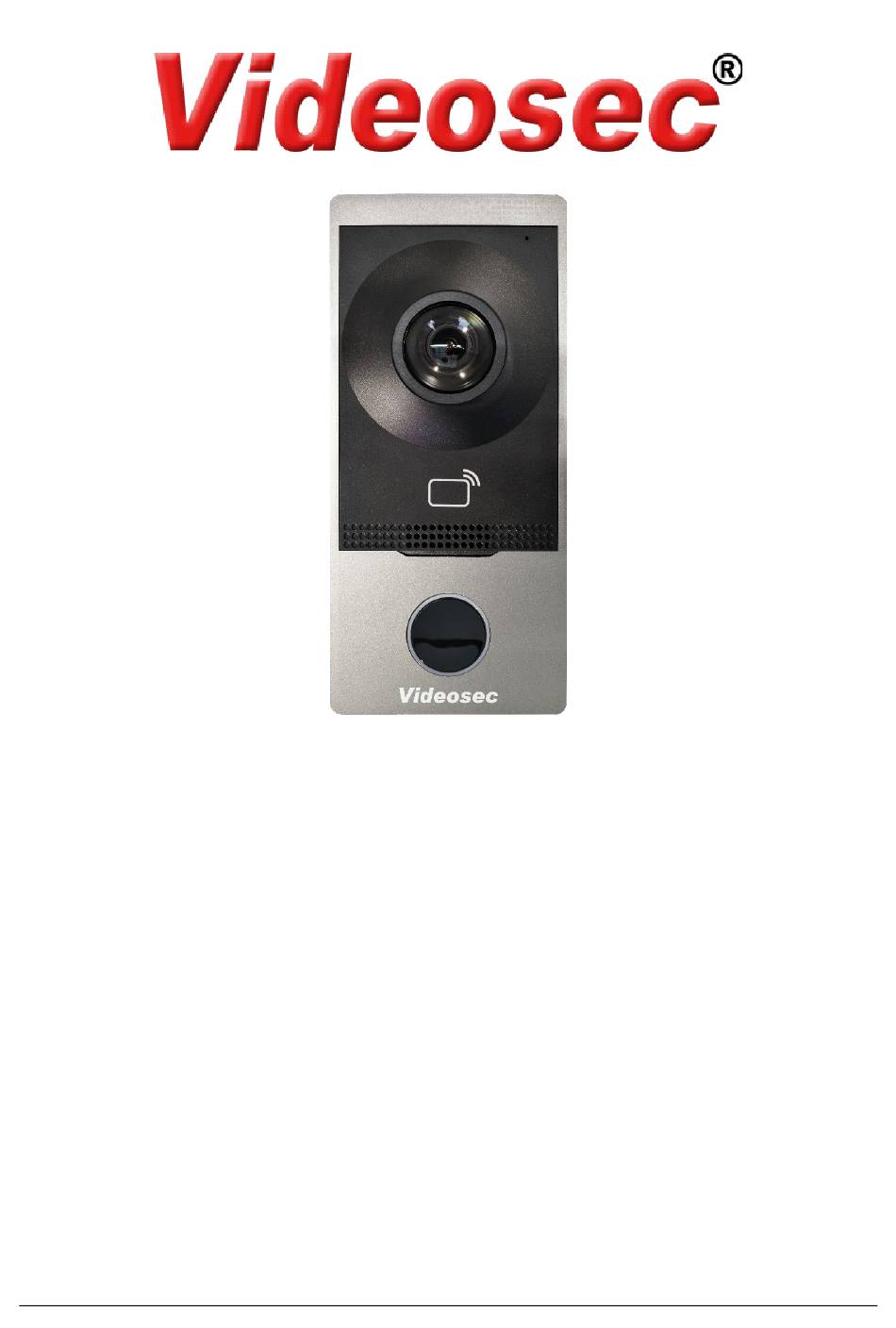

- Page 1 ODI-201W-R/ODI-201W-S IP Video Intercom Outdoor Station User Manual videosec.com...
-
Page 2: Table Of Contents
ODI-201W-R (S) Bozsák TamásBozsák Tamás Contents Description ........................3 Installation ........................3 Cable description ..................... 3 Connection diagram ..................4 Operation ........................4 Default settings ....................4 Mobil application ..................... 5 3.2.1 Add to mobile application ................5 3.2.2 Basic operations with mobile application ............6 3.2.2.1 Enable/disable video call notifications .......... -
Page 3: Description

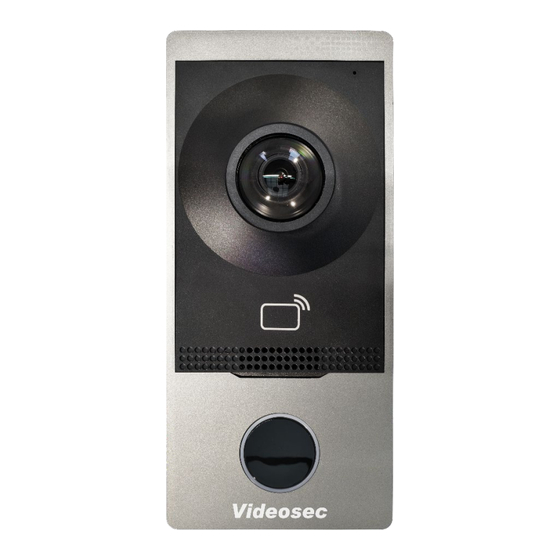

ODI-201W-R (S) Bozsák TamásBozsák Tamás 1 Description The ODI-201W-R/S IP video intercom with audio and visual lookout function can even be connected to a video surveillance system. Providing residents with a wide range of safe and comfortable uses. 2 Installation Recommended installation height of the outdoor unit 1,4-1,5 m Power supply: PoE (802.3af, recommended) or 12VDC, max. -
Page 4: Connection Diagram
ODI-201W-R (S) Bozsák TamásBozsák Tamás 2.2 Connection diagram Example: PoE supply and two door locks 3 Operation 3.1 Default settings The default parameters of the outdoor station in factory state are next: IP address: 192.168.1.13 (wired LAN, DHCP enabled) Username: admin... -
Page 5: Mobil Application
ODI-201W-R (S) Bozsák TamásBozsák Tamás 3.2 Mobil application Receiving and managing calls from outdoor units and using the lookout function can be accessed through the Guard Live application. Connect power supply and local computer network (recommended to use PoE power supply) to make further settings. -
Page 6: Basic Operations With Mobile Application
ODI-201W-R (S) Bozsák TamásBozsák Tamás After adding, the application will return to the main window, where the device will be displayed offline, but after a few seconds it will go online. >> Touch the device image to open the live image: 3.2.2 Basic operations with mobile application... -
Page 7: Receiving A Call, Opening The Door Lock
ODI-201W-R (S) Bozsák TamásBozsák Tamás >> >> 3.2.2.2 Receiving a call, opening the door lock In case of an incoming call, the phone switches to full screen mode: Reject a call Open the lock Accept a call Reject a call Operation of door lock output(s). -
Page 8: Door Lock Operation Without A Call
ODI-201W-R (S) Bozsák TamásBozsák Tamás Door lock operation without a call 3.2.2.3 To operate the electric lock connected to the outdoor unit without a call, tap the Unlock icon in the live view of the device: >> 3.2.2.4 Activate microphone and speaker without a call With the help of the microphone in the outdoor unit, it is possible to listen to the surrounding sounds without receiving a call, and/or even to speak on the phone. -
Page 9: Access Via Browser, Setting Options
Support/Software/NVR, IP camera, DVR software (Smart IP platform) or can be downloaded from the following link: https://videosec.com/download/software1/GuardTools-R1122.2.6.1(IN).exe The GuardTools program is capable of detecting Videosec intercoms, cameras and recorders connected to the local network. Default settings: IP address: 192.168.1.13 (wired LAN, DHCP enabled) -
Page 10: Setting The Language Of Feedback Sounds
ODI-201W-R (S) Bozsák TamásBozsák Tamás 3.3.2 Setting the language of feedback sounds The language of the sounds heard on the outdoor unit can be changed in the menu item Setup/system/Maintance (default language: English) After changing the language, the device will restart automatically. -
Page 11: Enabling And Setting The Second Door Lock
ODI-201W-R (S) Bozsák TamásBozsák Tamás 3.3.4 Enabling and setting the second door lock The second lock control on the outdoor unit is not enabled by default, to change the setting, go to Setup/System/Port & Devices, then open the Door Configuration/Door2 tab. -
Page 12: Setting Alarm Inputs
ODI-201W-R (S) Bozsák TamásBozsák Tamás 3.3.5 Setting Alarm inputs To set the alarm inputs, go to Setup/System/Port & Devices, then open the I/O Input tab. After enabling, set the function of the given input: Door Magnet 1/2: 1/2 opening sensor assigned to door lock Fire alarm: Fire alarm input 3.3.6 Adding users with IC card... - Page 13 ODI-201W-R (S) Bozsák TamásBozsák Tamás Go to the menu item Setup/Intelligent/Time template and set rules that can be assigned to each user as desired and based on which the entry time intervals will be allowed. Click the Person Library menu item, then click the Add button on the right to add the user...
- Page 14 ODI-201W-R (S) Bozsák TamásBozsák Tamás After making the necessary settings, we wish you long-term, problem-free use! videosec.com...
