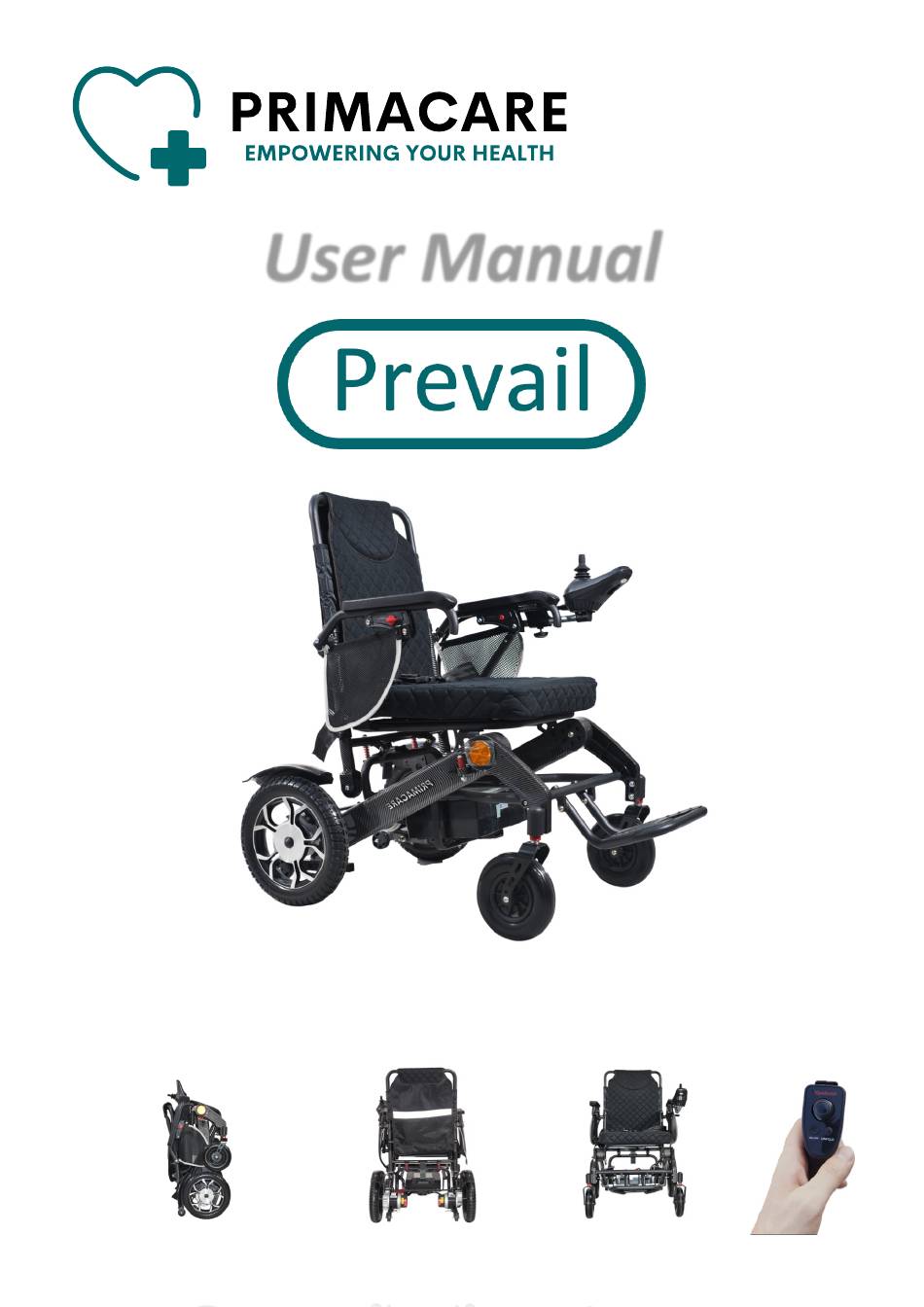

- Page 1 User Manual Foldable Electric Power Wheelchair Bluetooth Remote Controller included.
- Page 2 WHEELCHAIR. IT IS USER’S RESPONSIBILTY TO USE THE EQUIPMENT CORRECTLY ACCORDINGLY TO THE FUNCTIONS IT IS DESIGNED FOR. We are very glad that you have made the excellent choice to purchase the PrimaCare PC-300-Porter power wheelchair. Please read the user manual carefully before using the power wheelchair.
-
Page 3: Product Introduction
1. Product Introduction 1.1 Composition of Prevail Prevail Foldable Electric Power Wheelchair Bluetooth Remote controller Flip up armrests Joystick controller Gear Clutch lever on the motors 12ah Li-ion battery (To switch between manual & electric mode) 250w x 2 DC motors Flip up Footrest Anti-tippers 8”... -
Page 4: Main Technical Data
1.2 Main Technical Data Wireless Bluetooth controller (10m range) Main technical data PrimaCare PC200-Prevail N.W. with 12A Li-ion Max 8km/h 28kg Travel Speed battery 100kg 12V 20Ah Li-ion Max user load weight Battery Solid PU 8” AC 100~240V, 50Hz, 2A... -
Page 5: Safety Instructions
＊ Caregivers should confirm that the users’ feet are placed properly on the footrest. PrimaCare Prevail power wheelchair is designed for the physically challenged and elderly people under 100kg weight to use it as a travelling aid. It is suitable for indoor use. - Page 6 Precautions for Uphill and Downhill: ＊ Avoid driving on following places: steep hills, tilt places, high steps, channels etc. ＊ Avoid driving on steep slopes, the slope range should be less than 9 degrees. Please operate the controller carefully when drive on slopes. ＊...
-
Page 7: Usage And Operation
3 Usage and Operation 3.1 Adjustment of Wheelchair Unfolding wheelchair One hand to hold the backrest with the other hand to hold the seat and pull open manually (pic 1). Fully unfold the wheelchair (pic 2), and then engage the lock located under the backrest (pic 3). Please make sure that the lock is secured before sitting on. - Page 8 3.2 Installation of Battery Connecting the battery: Insert the plug on the controller into the battery slot and tighten the nut on the plug (pic 8). Pic 8 Footrest: The footrest can be flipped up or down for ease of usage and foldup. (pic 9). Pic 9 3.3 Install and Dismantle Anti-tipper.
- Page 9 3.4 Armrest Flip-up Turn the armrest lock lever to unlock (pic 11) while using another hand to flips up the armrest (pic 12). Press down the armrest to the proper position to fix armrest. Pic 11 Pic 12 3.5 Switching between Manual Push Mode and Electric Power Mode Manual Push mode: pull up the gear switch lever on left &...
-
Page 10: Battery And Charger
4. Battery and Charger 4.1 Charger Requirements The charger is used for battery charging. Do not operate the power wheelchair during charging. Charger Technical Data ＊ Input voltage: AC220V (110V) ±10% ＊ Output voltage: 24V/DC ＊ Output current: 2A/3A ＊ Ingress protection level is IPX1. 4.2 Charging through your controller To charge the battery, connect the charger to the power supply. - Page 11 Do not expose the wheelchair to sunlight and humid environment. The charging environment temperature range is from 10 ℃ to 50 ℃ . If it is out of the environment temperature range, the battery is unable to function well, and can damage the battery prematurely. It is normal for the charger to be warm during charging.
- Page 12 5. Error Diagnosis Indication Chart When the indicator LED lights are blinking, it means the control system has having some problem trying to operate normally. The problems may occur in following parts: motors, brakes, battery, wire connections. Through the product’s LED visual signal indicator, the source of the problem can be detected by the diagnosis signal.
- Page 13 Error Diagnosis Indication Chart Status of LED light Indications Explanation & Solution v The power is turned off with the wheelchair in standby All LED lights are unlit with no or sleep mode. v Check wire connections & buzz sound v Wire connection is fuse.
- Page 14 6. Control module interface 6.1 Controller Panel Power on/off Battery indicator Increase speed (Faster) Decrease speed (slower) 250w x 2 DC motors Speed indicator 6.2 Controller Usage 6.2.1 Power Switch Press this button to activate the control system. The battery power gauge lights will light up on from left to right.
- Page 15 6.24 Horn Button Press the horn button, the horn will buzz until you release the button. 6.25 Battery Power Indicator After turning on the power switch, the battery power indicator on the controller will show the remaining power capacity. Example as the left picture shows the battery power is full capacity &...
- Page 16 7. Headlight To install the headlight and USB charger simply insert the headlight into the joystick charging port. (pic 15) The light is individually controlled hence it will continue to draw power from the battery even when the main controller is turned off. Be sure to turn off the light when it is not in use.
-
Page 17: Warranty
8. Warranty 8.1 Limited Warranty This power wheelchair carries a limited warranty coverage of 12 months from the original date of purchase on frame, motors, control modules against any manufacturing defects. This device is built to exact standards and carefully inspected prior to shipment. The factory default battery carries a limited warranty coverage of 6 months from the original date of purchase against manufacturing defects.
