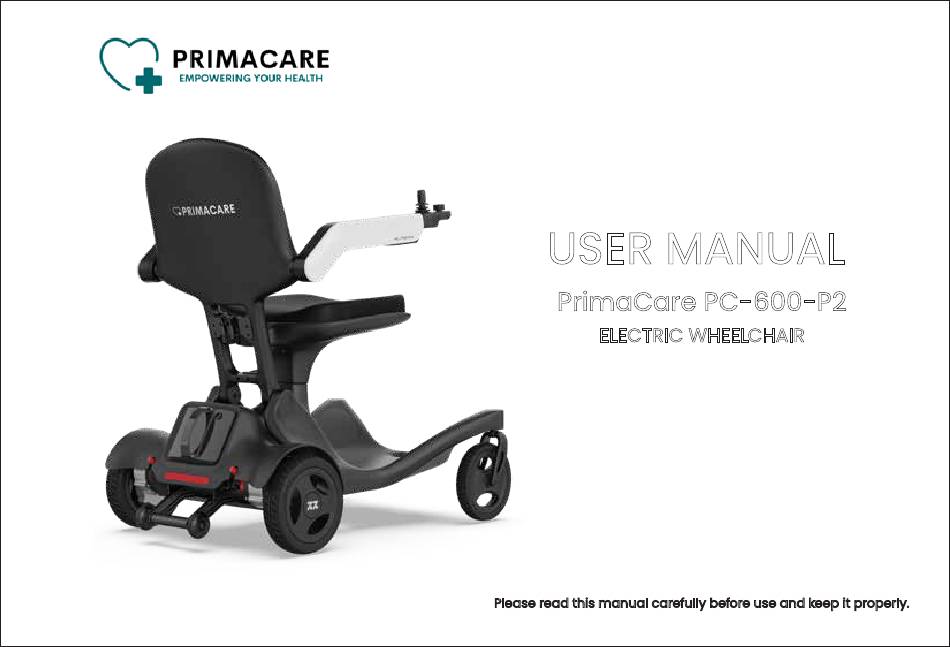

- Page 1 USER MANUAL ipsum PrimaCare PC-600-P2 ELECTRIC WHEELCHAIR Please read this manual carefully before use and keep it properly.
- Page 2 PREFACE Thank you for choosing the PrimaCare PC-600-P2 electric wheelchair. Before using it for the first time, please carefully read this user manual. This manual is designed to guide you on how to safely operate the device, detailing its structure, functions, precautions, and maintenance methods. Understanding these aspects will PrimaCare is dedicated to creating innovative, stable, intelligent, and stylish products that are easy to operate, aiming to enhance comfort and provide personalized experiences.
- Page 3 1.1.3 Electromagnetic Interference 1.1.4 Emergency Situations 1.1.5 For the crowd 1.2 Usage Environment 1.3 Usage Precautions 1.3.1 Sitting and Driving 1.3.2 Manual Mode 1.4 Maintenance and Care 1.4.1 Regular Inspections 1.4.2 Cleaning and Maintenance 1.5 Disposal PrimaCare PC-600-P2 USER MANUAL...
-
Page 4: Table Of Contents
3.2 Folding and Unfolding 3.2.1 Folding 3.2.2 Unfolding 3.3 Controller Description 4. Battery Management 4.1 Battery and Charger Components 4.2 Charging Steps 4.2.1 Charging with Battery Installed 4.2.2 Charging with Battery Removed 4.3 Charger Indicator Light Display PrimaCare PC-600-P2 USER MANUAL... - Page 5 5. Maintenance and Troubleshooting 5.1 Routine Maintenance 5.2 Fault Indications 5.2.1 Beep Explanations 6. Warranty and Service 6.1 Warranty and Service 6.2 After-Sales Service 6.3 Disclaimer PrimaCare PC-600-P2 USER MANUAL...
-
Page 6: Safety Precautions
1.2.2 Weather Conditions: Avoid use in severe weather conditions, such as heavy rain, snow, or extreme heat. 1.3 Usage Precautions 1.3.1 Sitting and Driving: Ensure the device is stationary and brakes are locked before sitting and driving. flat ground to prevent accidental movement. PrimaCare PC-600-P2 USER MANUAL... - Page 7 1.4.2 Cleaning and Maintenance: Keep the equipment clean and prevent moisture from entering the electrical system. Regularly lubricate and maintain the device. 1.5 Disposal Follow local environmental regulations for disposing of the equipment to avoid pollution. PrimaCare PC-600-P2 USER MANUAL...
-
Page 8: Overview
Equipped with a 250W dual brushless motor and an optional high-capacity 20Ah battery, the PC-600-P2 can achieve a range of up to 40 kilometers. Manufactured by a Global 500 factory, it guarantees high quality and easy maneuverability for users. -
Page 9: Main Components
2. 2 Main Components Controller Backrest Right Armrest Left Armrest Soft Seat Cushion Safety Lock Hard Seat Cushion Battery Seat Cushion Support Rear Cover Frame Front Fork Motor Brake Handle Front Wheels Anti-Tip Wheels Rear Wheels PrimaCare PC-600-P2 USER MANUAL... - Page 10 Back Cushion Headlight Light Switch Gas Spring Hub Cap Handle PrimaCare PC-600-P2 USER MANUAL...
-
Page 11: Technical Specifications
Seat Height （mm） Suspension shock absorption Seat Width（mm） Folding Method Manual folding Max Load (kg) Seat Depth（mm） Net Weight (kg) Seat Cushion Size（mm） 420*420 (excluding battery） Battery Type Lithium battery Ground Clearance(mm) Obstacle Height（mm） Battery Capacity 10Ah/20Ah PrimaCare PC-600-P2 USER MANUAL... -
Page 12: Storage Conditions
Fully unfold the wheelchair before use, and press the seat cushion into place. In adverse conditions (e.g., entering a door or making a turn), operate slowly and set the speed to the lowest setting. being idle for 30 minutes. PrimaCare PC-600-P2 USER MANUAL... -
Page 13: Folding And Unfolding
3.2 Folding and Unfolding 3.2.1 Folding Rotate the armrests upward. PrimaCare PC-600-P2 USER MANUAL... - Page 14 Push the backrest forward until it locks securely. Flip the seat upward. Rotate the armrests backwards. *Note: The gas spring assists in folding and exerts force. Handle with care.* PrimaCare PC-600-P2 USER MANUAL...
-
Page 15: Unfolding
3.2.2 Unfolding Pull forward Rotate the armrests forward. Release the safety lock. *Follow these steps to prevent unnecessary damage.* PrimaCare PC-600-P2 USER MANUAL... - Page 16 Lift the backrest to automatically unfold. Press the seat into place. *The gas spring assists in unfolding, so handle with care.* PrimaCare PC-600-P2 USER MANUAL...
-
Page 17: Controller Description
Failure to comply with this condition may place the user in certain unsafe situations, such as road interruptions. The company shall not be held liable for any losses resulting from failure to comply with the conditions. PrimaCare PC-600-P2 USER MANUAL... -
Page 18: Battery Management
4. Battery Management 4.1 Battery and Charger Components Battery Unlock Button Charger Indicator Light AC Socket Battery Handle Charging AC Plug Power Plug Battery Charging Port (with cover) Connector PrimaCare PC-600-P2 USER MANUAL... -
Page 19: Charging Steps
*Charging can also be done through the controller's front lower charging port. If the controller is on, the LED battery display lights will scroll.* PrimaCare PC-600-P2 USER MANUAL... - Page 20 3. After connecting the power, the charger 4. When the charger indicator light turns green, indicator light will display red. charging is complete. Unplug the power plug and charger connector, then cover the battery cap. *Charging takes approximately 4-6 hours.* PrimaCare PC-600-P2 USER MANUAL...
-
Page 21: Charging With Battery Removed
2. Grip the handle and pull the battery battery unlock button and pull out the battery. towards your body to remove it. *Note: The battery has some weight; handle with care to avoid injury or damage.* PrimaCare PC-600-P2 USER MANUAL... - Page 22 3. Open the battery protection cover and 4. Connect the charger to the power plug, connect the charger interface to the battery then insert the charger's power plug into the charging port. wall socket. PrimaCare PC-600-P2 USER MANUAL...
- Page 23 6. When the charger indicator light turns green, the indicator light will display red. charging is complete. Disconnect the power plug and the charger connector, then close the battery protection cover. *Charging takes approximately 4-6 hours.* PrimaCare PC-600-P2 USER MANUAL...
- Page 24 7. Install the battery into the device by holding the battery handle, insert the battery into the battery compartment, press the battery unlock button, and lock it in place. *Note: The battery has some weight; handle with care to avoid injury or damage.* PrimaCare PC-600-P2 USER MANUAL...
-
Page 25: Charger Indicator Light Display
Please use only the charger provided with this device. If you notice any abnormalities in the appearance or function of the battery, stop using or charging it immediately and contact the dealer. PrimaCare PC-600-P2 USER MANUAL... -
Page 26: Maintenance And Troubleshooting
Left Motor Check for loose connections. Overcurrent (Note: " " indicates an LED light, with LED1 to LED5 representing the green LED display lights from left to right corre sponding to the speed settings of the controller) PrimaCare PC-600-P2 USER MANUAL... - Page 27 Right motor Contact repair service phase loss (Note: " " indicates an LED light, with LED1 to LED5 representing the green LED display lights from left to right corre sponding to the speed settings of the controller) PrimaCare PC-600-P2 USER MANUAL...
-
Page 28: Beep Explanations
5.2.1 Beep Explanations Indicator Light Displaying. The indicator lights display normally, and a beep sound "beep" is emitted after operating the control joystick, but the device does not move. PrimaCare PC-600-P2 USER MANUAL... -
Page 29: Warranty And Service
Improper use, intentional damage, overload, unauthorized modifications, water submersion, or private disassembly. Incorrect charging, unauthorized battery modifications, or long-term storage without charging. Damage from improper transportation or plastic shell breakage. Natural disasters such as typhoons, floods, earthquakes. PrimaCare PC-600-P2 USER MANUAL... -
Page 30: After-Sales Service
If abnormalities are found, stop using the device and contact the dealer or Plexus Care customer support. Operating the device when faulty may result in injury or accidents. PrimaCare PC-600-P2 USER MANUAL... -
Page 31: Disclaimer
The company reserves the right to update the "User Manual" without prior notice. Regularly check the website for updates or request updated manuals from the dealer. *(The final interpretation of this content belongs to the company.)* PrimaCare PC-600-P2 USER MANUAL... -
Page 32: Contact Information
7.1 Company Headquarters Plexus Care Pte.Ltd 102F Pasir Panjan Rd, CitiLink Warehouse Complex #05-11 Singapore 118530 7.2 Dealers （Fill in or paste dealer information here.） PrimaCare PC-600-P2 USER MANUAL... - Page 33 For more details, visit www.care.com.sg...
