Sferalabs strato Pi Max XL User Manual page 13

• L-side terminal blocks for expansion boards
• DIN rail hook handle
The high (H) side features:
• H-side terminal blocks for expansion boards
• SMA connector for the Raspberry Pi antenna (or a pre-cut opening if the antenna is not
installed)
Each expansion board terminal block has up to eight screw positions, numbered
individually from top to bottom (1 to 8). Unused terminal block openings are covered with
removable lids, allowing for future expansion.
For details on specific expansion board LEDs and terminal blocks, refer to the respective
user guide.
13

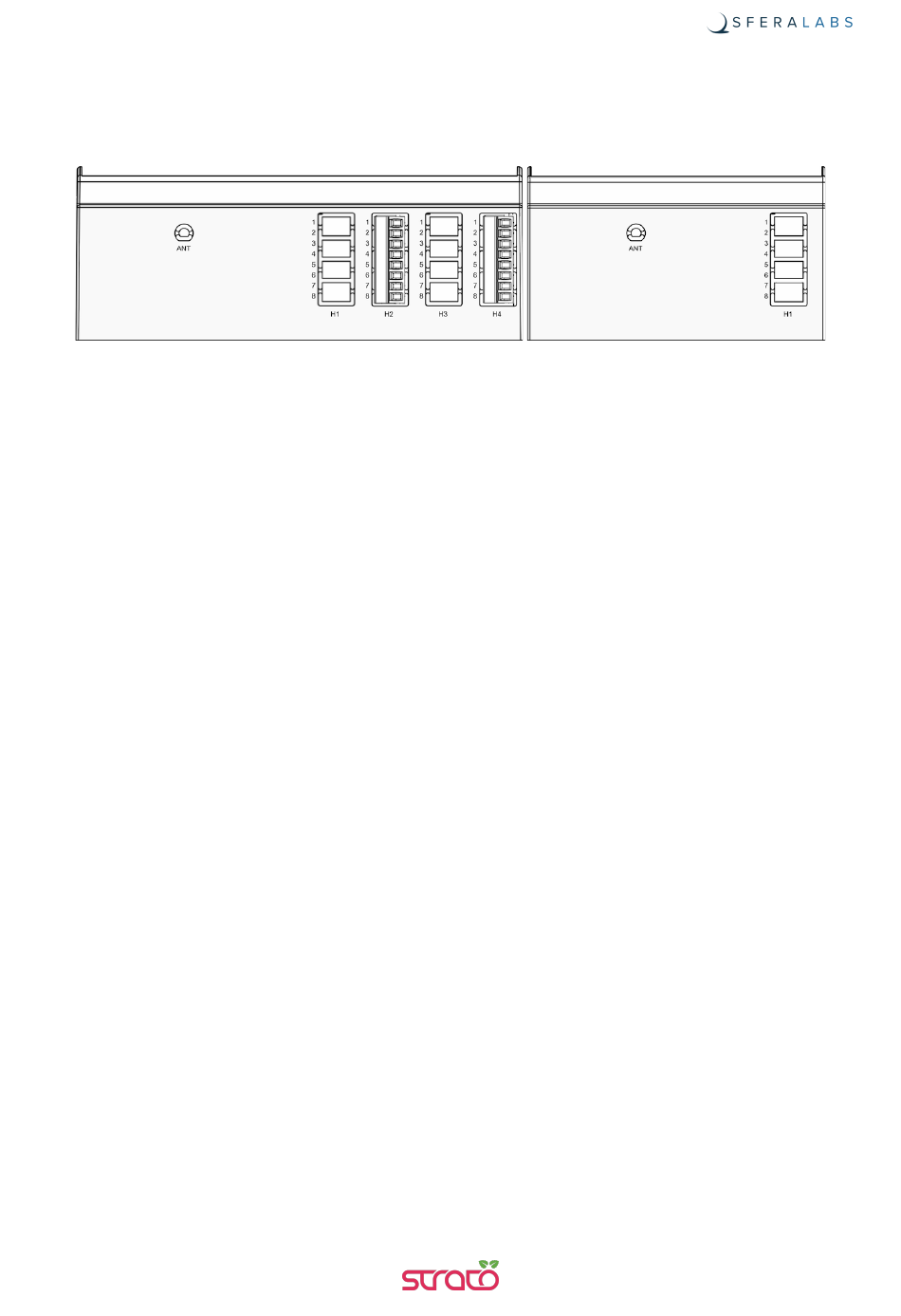

HIGH (H) SIDE VIEW
Strato Pi Max User Guide
