INSTALLATION INSTRUCTIONS
Wall Hung Laundry Tubs
Models: L1, L7, SF1W, LTDII
Thank you for selecting Fiat Products. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
IMPORTANT: Unpack your new laundry tub and inspect carefully for damage. Exercise care during installation. Rough handling or dropped
tools may chip or crack material.
OBSERVE LOCAL PLUMBING AND BUILDING CODES
NOTE: Pictures may not exactly define contour of components
INSTALLATION PLANNING
Study all job prints, specifications, and instructions. Check the level and quality of sub floor.
1
FAUCET INSTALLATION
1. Turn the laundry tub upside down and place it on a protected surface to prevent scratches or damage.
2. Measure the actual faucet dimensions to determine the correct hole sizes.
3. On the underside of the faucet ledge on the laundry tub, locate the designated drill points.
4. Carefully drill holes at the marked points based on the faucet measurements.
5. Install the faucet onto the tub, ensuring a secure fit.
2

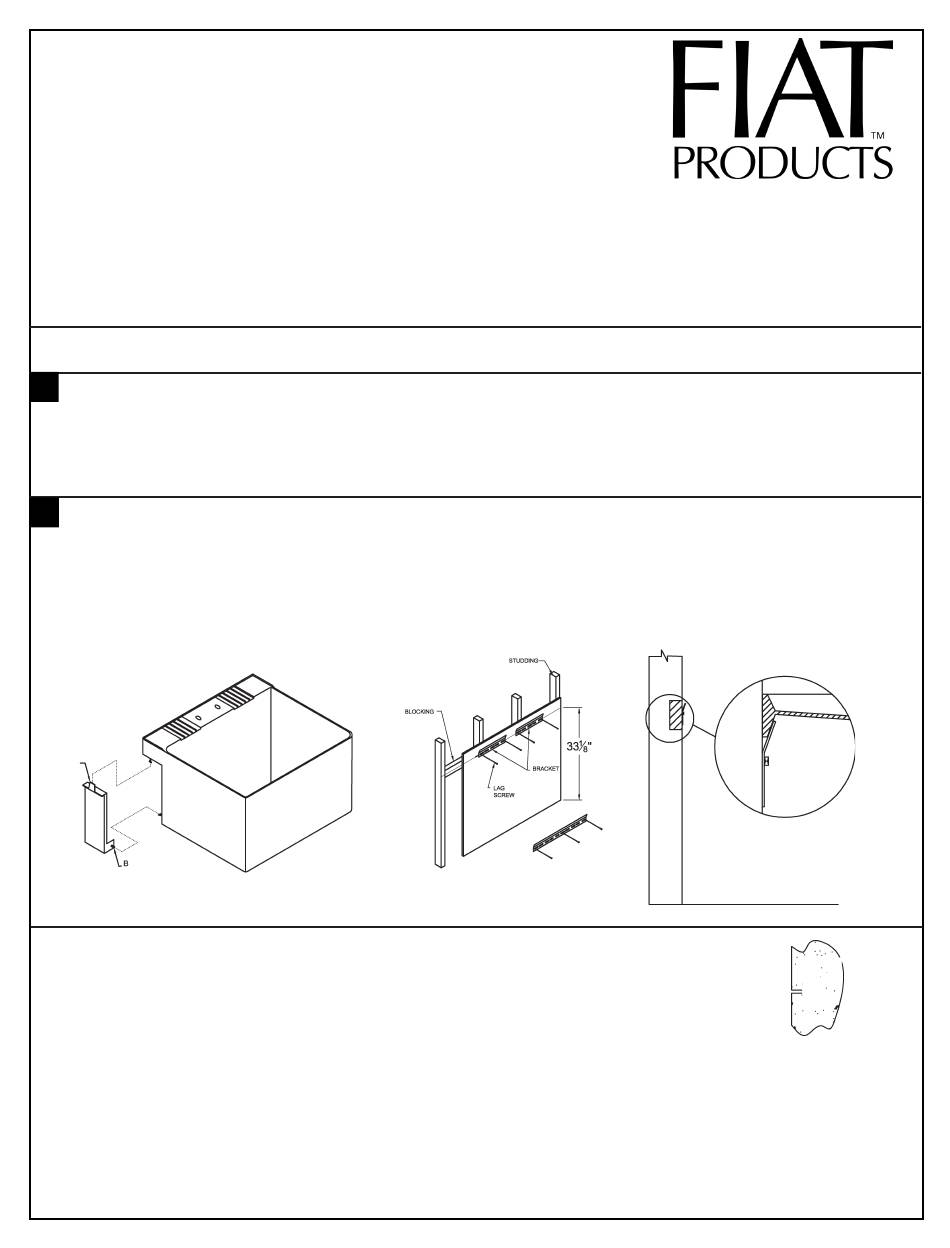

WALL MOUNTING PROCEDURE
1. Drill out plastic filler panel hole on the back of the tub skirt and insert tab (A) into the slot under the rim. Push the anchoring bard (B) into
the hole in the tub skirt. Repeat for opposite panel. NOTE: Each of the filler panels are marked L or R and should be installed accordingly.
2. When mounting tub to a stud wall, install wood blocking to bridge the studs.
3. Single tub units use a single hanger bracket and Double tub units use two hanger brackets.
4. Fasten the mounting bracket(s) to the wall at 33-1/8" up from the floor with ¼" lag screws. Make sure screws drive into studs or blocking.
Two screws must be placed in the outermost holes of the bracket to properly attach the tub to the wall.
5. Lift and place sink over wall mounting bracket(s). Make sure tub is seated securely on the lip of the mounting bracket(s). See DETAIL C.
A
FIGURE 1
WALL MOUNTING PROCEDURE (CONCRETE OR CEMENT)
1. To fasten wall mounting bracket to concrete or cement block wall construction, follow the
same procedure for wood stud walls discussed above.
1. Drill out plastic filler panel hole on the back of the
2. Drill holes with a masonry bit and use lead alloy screw anchors with 1/4" lag screws and
tub skirt and insert tab (A) into the slot under the
flat washers.
rim. Push the anchoring barb (B) into the hole in
the tub skirt. Repeat for opposite panel.
NOTE: Each of the filler panels are marked L or R
and should be installed accordingly.
2. When mounting tub to a stud wall, install wood
blocking to bridge the studs.
OPTIONAL EQUIPMENT
ASSEMBLY INSTRUCTIONS
for LAUNDRY TUBS
A
FIGURE 1
1. Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into the slot under the
rim. Push the anchoring barb (B) into the hole in
the tub skirt. Repeat for opposite panel.
NOTE: Each of the filler panels are marked L or R
and should be installed accordingly.
2. When mounting tub to a stud wall, install wood
blocking to bridge the studs.
OPTIONAL EQUIPMENT
WALL MOUNTING PROCEDURE
A-6 LAUNDRY TUB COVER
A2. OVERFLOW
TUBE
ASSEMBLY INSTRUCTIONS
for LAUNDRY TUBS
WALL MOUNTING PROCEDURE
SINGLE TUB
MOUNT BRACKET
FIGURE 2
3. Single tub units use a single hanger bracket and
Double tub units use two hanger brackets.
Fasten the mounting bracket(s) to the wall at
33 1/8" up from floor with 1/4" lag screws. Make
sure screws drive into studs or blocking. Two
screws must be placed in the outermost holes of
the bracket to properly attach the tub to the wall.
4. Lift and place sink over wall mounting bracket(s).
Make sure tub is seated securely on the lip of the
mounting bracket(s). See DETAIL C.
A3 FAUCET ADAPTER
For top supply connection
faucets
o:=mm---�- .\=)
MODEL L-1
MODEL L-7
MODEL SF1-W
MODEL LTD II
SINGLE TUB
MOUNT BRACKET
FIGURE 2
3. Single tub units use a single hanger bracket and
Double tub units use two hanger brackets.
Fasten the mounting bracket(s) to the wall at
33 1/8" up from floor with 1/4" lag screws. Make
sure screws drive into studs or blocking. Two
screws must be placed in the outermost holes of
the bracket to properly attach the tub to the wall.
4. Lift and place sink over wall mounting bracket(s).
Make sure tub is seated securely on the lip of the
DETAIL C
mounting bracket(s). See DETAIL C.
. ..
: : ,d� .
o:=mm---�- .\=)
.
. ..
: . .
·,
DETAIL D
To fasten wall mounting bracket to concrete
or cement block wall construction, follow the
same procedure for wood stud walls discussed
above.
Drill holes with a masonry bit and use lead alloy
screw anchors with 1/4" lag screws and flat
washers.
L1,L7,SF1W,LTDII_IOM-A
. ..
• • � •
: : ,d� .
.
.
. ..
: .
·,
MODEL L-1
MODEL L-7
MODEL SF1-W
MODEL LTD II
DETAIL C
• • � •
.
