A
FIGURE 1
1. Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into the slot under the
rim. Push the anchoring barb (B) into the hole in
the tub skirt. Repeat for opposite panel.
NOTE: Each of the filler panels are marked L or R
and should be installed accordingly.
2. When mounting tub to a stud wall, install wood
blocking to bridge the studs.

OPTIONAL EQUIPMENT

A-6 LAUNDRY TUB COVER
A2. OVERFLOW
TUBE

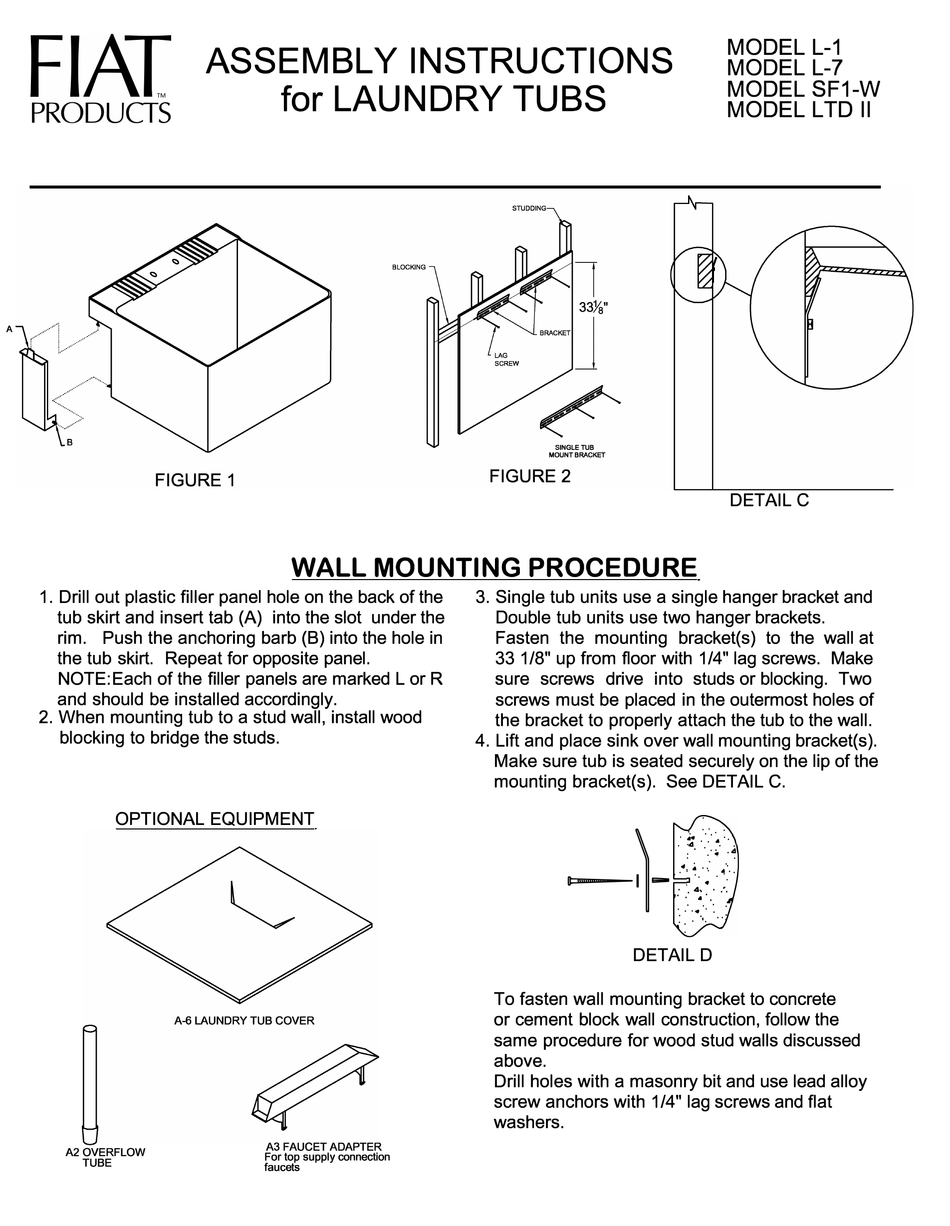

ASSEMBLY INSTRUCTIONS
for LAUNDRY TUBS

WALL MOUNTING PROCEDURE

A3 FAUCET ADAPTER
For top supply connection
faucets
SINGLE TUB
MOUNT BRACKET
FIGURE 2
3. Single tub units use a single hanger bracket and
Double tub units use two hanger brackets.
Fasten the mounting bracket(s) to the wall at
33 1/8" up from floor with 1/4" lag screws. Make
sure screws drive into studs or blocking. Two
screws must be placed in the outermost holes of
the bracket to properly attach the tub to the wall.
4. Lift and place sink over wall mounting bracket(s).
Make sure tub is seated securely on the lip of the
mounting bracket(s). See DETAIL C.
o:=mm---�- .\=)
DETAIL D
To fasten wall mounting bracket to concrete
or cement block wall construction, follow the
same procedure for wood stud walls discussed
above.
Drill holes with a masonry bit and use lead alloy
screw anchors with 1/4" lag screws and flat
washers.
MODEL L-1
MODEL L-7
MODEL SF1-W
MODEL LTD II
DETAIL C
. ..
• • � •
: : ,d� .
.
.
. ..
: . .
·,
