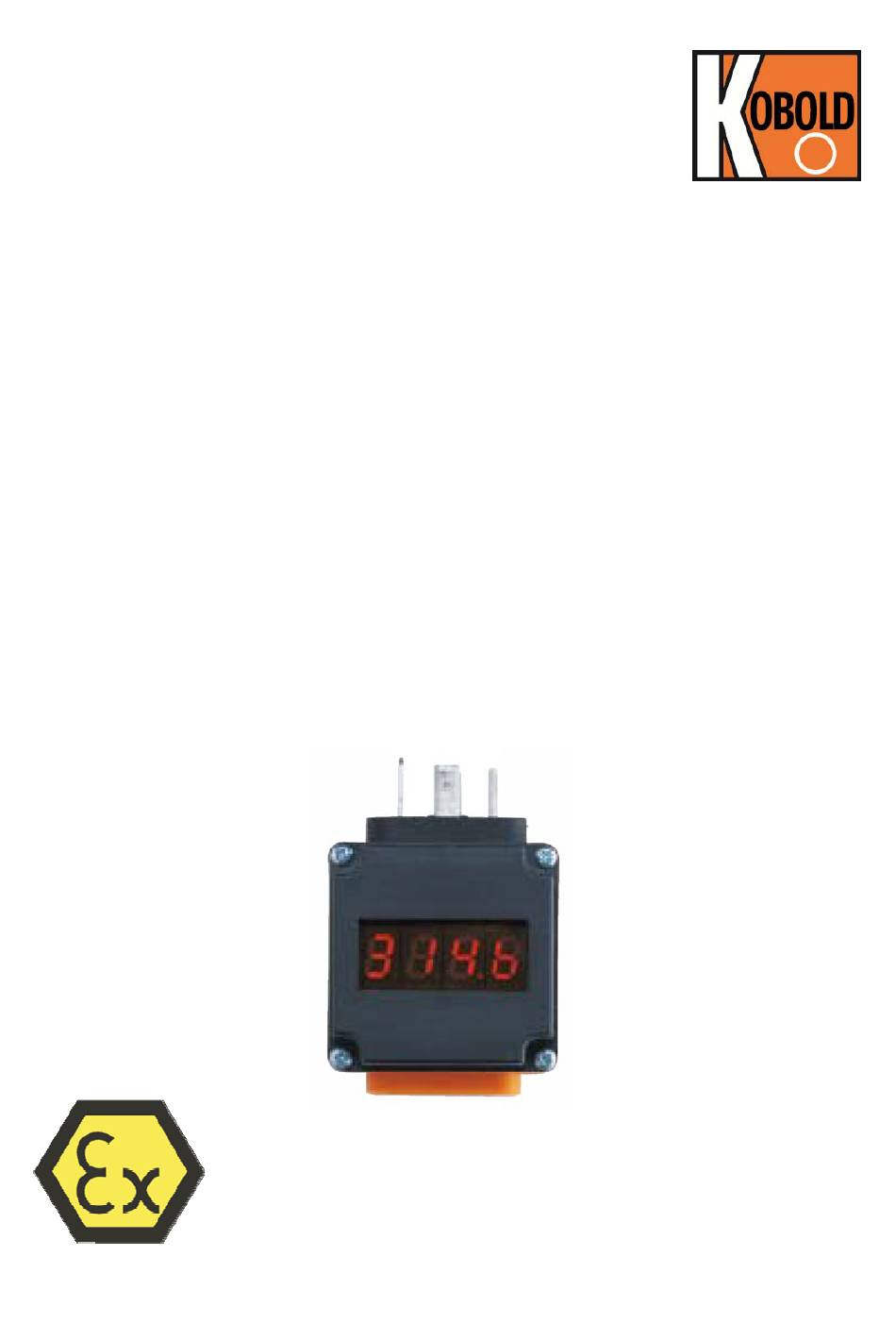

- Page 1 Operating Instruction Plug-On Display Model: AUF-2000...
-
Page 2: Table Of Contents
13. EU Declaration of Conformance ..............17 14. EU declaration of conformity (ATEX) ............18 15. EU Type Examination Certificate ..............19 16. IECEx Certificate ..................22 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
If you need an instruction manual that corresponds to the purchased product version, you can request it from us free of charge by email (info.de@kobold.com) in PDF format, specifying the relevant invoice number and serial number. If you wish, the operating instructions can also be sent to you by post in paper form. -
Page 4: Instrument Inspection
Units adhesive label 4. Intended Use The KOBOLD Plug-On Display is to be installed only in the specified applications. Every usage, which exceeds the specifications, is considered to be non-specified. Therefore, any resulting damage is not the responsibility of the manufacturer. -
Page 5: Operating Principle
AUF-2000 5. Operating Principle The model AUF-2000 Plug-On Display is a universal local display suitable for use with various transmitters. The transmitter must be fitted with an analogue output and a connector in accordance with EN 175 301-803 form A. The plug-on display is simply plugged in between connector and socket;... - Page 6 Furthermore, make sure that when repositioning the electronic module, the supply wires remain behind the rubber disk and do not slip between the rubber disk and the electronic circuit board. page 6 AUF-2000 K10/0225...
-
Page 7: Use In Potentially Explosive Areas
Notes 7. Use in potentially explosive areas The plug-on display model AUF-2000 is a universal local display that is suitable for use with various converters. Therefore, additional precautions may be required and their effectiveness must be checked periodically. The AUF-2000 plug-in display is designed and certified for use in potentially explosive atmospheres. -
Page 8: Ex Ia Electrical Parameters
Maximum output voltage Maximum Output Current Maximum Output Power Maximum Outer Capacity Depends on the power supply Maximum external inductance depending on the power supply 7.2.3. Thermal parameters Ambient temperature range -20 °C ≤ tamb ≤ 40 °C page 8 AUF-2000 K10/0225... -
Page 9: General Safety Instructions
Electrostatic charges must be prevented. f) Stuck parts of equipment (e.g. due to frost or corrosion) must not be removed by force if the presence of an explosive atmosphere cannot be ruled out. AUF-2000 K10/0225 page 9... -
Page 10: Servicing, Maintenance
Maintenance work may only be carried out by qualified persons. b) Only accessories that meet all the requirements of European Directives and national legislation may be used in potentially explosive atmospheres. page 10 AUF-2000 K10/0225... -
Page 11: Troubleshooting
In the area of responsibility of the operator 7.6. Troubleshooting No modifications may be made to products used in potentially explosive atmospheres. Repairs to the product may only be carried out by specially trained and authorized personnel. AUF-2000 K10/0225 page 11... -
Page 12: Marking Of The Plug-In Display
The device is provided with a type plate on which all relevant information is printed. The QR code automatically takes you to the product page on the Kobold website, where you can download the operating instructions and other product-related documents. -
Page 13: Electrical Connection
To adjust settings: Loosen and remove the four Phillips screws on the display and then remove the display cover hood. Downward and selection of menu items Upward and selection menu items Enter menu selection for adjustment or to exit adjustment mode AUF-2000 K10/0225 page 13... -
Page 14: Decimal Point
Press A+B to enter adjustment menu: (min. = 0.3 s; max. = 20.0 s) Press B or A for up and down: (for example: 1,5 sec) Press A+B to acknowledge setting and return to menu item “FILt” page 14 AUF-2000 K10/0225... -
Page 15: Range Exceeded
Caution: When the “HILO” indication is disabled, error code “Er06” is displayed if the scale range (-1999 to +9999) is exceeded. 8.7. Return to Measuring Mode Depending on the selected menu point, press key A or B from one to eight times. AUF-2000 K10/0225 page 15... -
Page 16: Technical Information
AUF-2000 9. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 10. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. -
Page 17: Eu Declaration Of Conformance
AUF-2000 13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Plug-On Display Model: AUF-2000 to which this declaration relates is in conformity with the following EU directives... -
Page 18: Eu Declaration Of Conformity (Atex)
AUF-2000 14. EU declaration of conformity (ATEX) We, Kobold Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, hereby declare under our sole responsibility and with the aim of traceability that the product Product type: Plug-On Display Model: AUF-2000 EU type examination certificate:... -
Page 19: Eu Type Examination Certificate
AUF-2000 15. EU Type Examination Certificate AUF-2000 K10/0225 page 19... - Page 20 AUF-2000 page 20 AUF-2000 K10/0225...
- Page 21 AUF-2000 AUF-2000 K10/0225 page 21...
-
Page 22: Iecex Certificate
AUF-2000 16. IECEx Certificate page 22 AUF-2000 K10/0225... - Page 23 AUF-2000 AUF-2000 K10/0225 page 23...
- Page 24 AUF-2000 page 24 AUF-2000 K10/0225...
