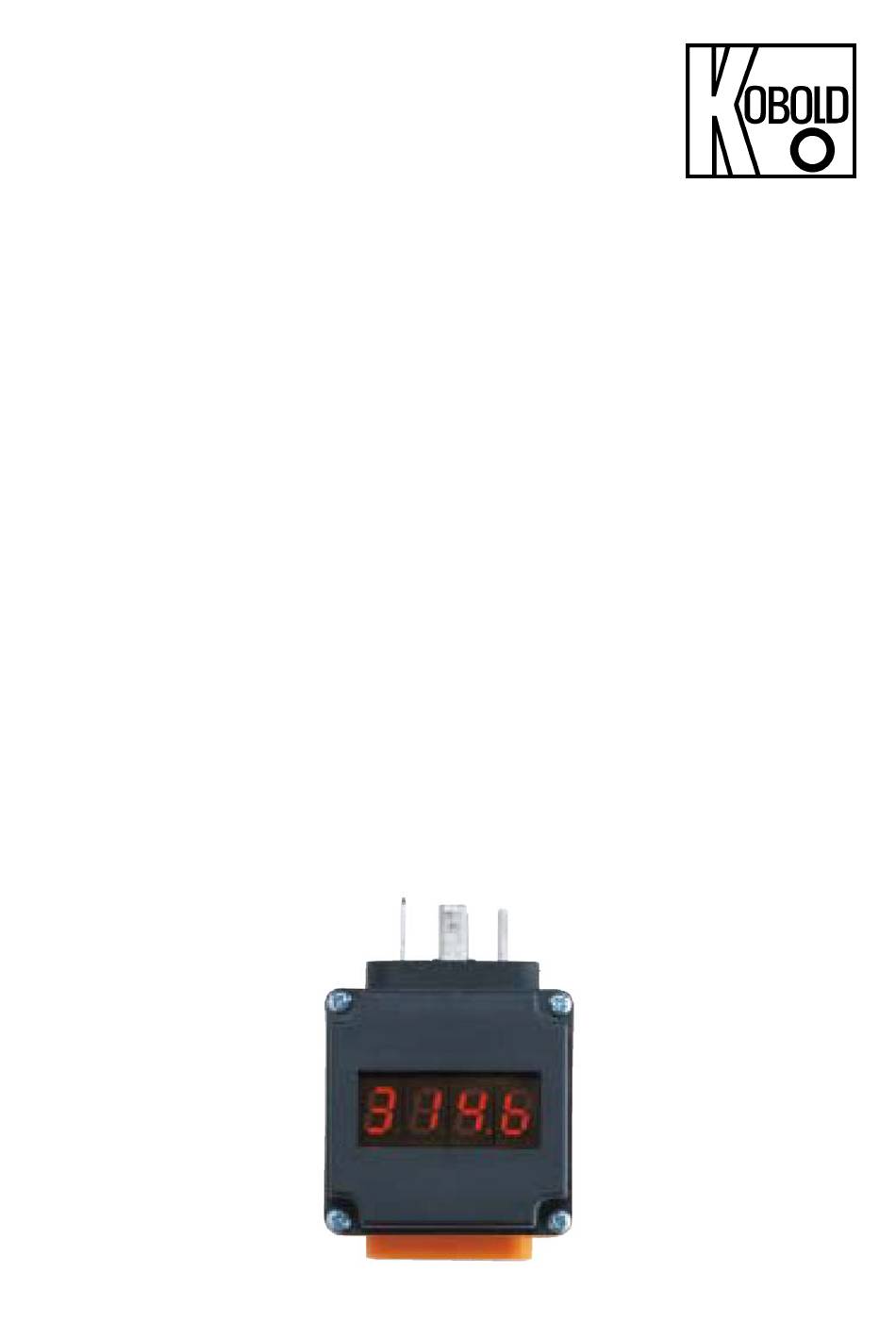

- Page 1 Operating Instructions Plug-On Display Model: AUF-1... AUF-3... AUF-4...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............12 UK Declaration of Conformity ..............13 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 AUF K11/0823... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
4. Regulation Use Any use of the Plug-On Display, model: AUF-..., which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. 5. Operating Principle The model AUF-... -
Page 5: Electrical Connection
7. Electrical Connection Connect the plug-on display as shown in the wiring diagram. Connector assignment AUF-3000 AUF-1000 AUF-1001 AUF-4000 PIN 1 PIN 2 GND/S- GND/S- PIN 3 Switch out Signal Signal AUF-1000 AUF-1001 AUF-3000 AUF-4000 Input 4-20 mA, 4-20 mA, 4-20 mA, pulses 2-wire... - Page 6 Connection example AUF-1001 +Vs/S+ Switch GND/S- Connection example AUF-3000, AUF-4000 Signal If the signal output is not used, the signal output (PIN 3) needs to be short- circuited with GND (PIN 2). page 6 AUF K11/0823...
-
Page 7: Commissioning
8. Commissioning 8.1 Adjusting the Display For adjustment, the 4 Phillips screws of the display should be unscrewed and the cover removed. A Downward and selection of menu items B Upward and selection menu items A+B Enter menu selection for adjustment or to exit acknowledge setting 8.2 Decimal Point Press key B until: is displayed. - Page 8 8.4 Span (value to be displayed for 20 mA) Press key B until: is displayed. Press A+B to enter adjustment menu: Press B or A for up and down: (for example: 60 bar) Press A+B to acknowledge setting and return to menu item “EP” 8.5 Damping Press key B until: is displayed.
- Page 9 8.7 Switching Point (only model: AUF-1001, optional) Press key B until: is displayed. Press A+B to enter adjustment menu: Press B or A for up and down (20 bar) 2 0, 0 Press A+B to acknowledge setting and return to menu item “SPt” Attention: The standard hysteresis is the adjusted switching point minus 3 digits (first digit resp.
-
Page 10: Technical Information
9. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 10. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. -
Page 11: Disposal
12. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. -
Page 12: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the products: Plug-On Display Model: AUF-... to which this declaration relates is in conformity with the standards noted below: EN IEC 61326-1:2021 Electrical equipment for measurement, control and... -
Page 13: Declaration Of Conformity
14. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Plug-On Display Model: AUF-... to which this declaration relates is in conformity with the standards noted below: BS EN IEC 61326-1:2021 Electrical equipment for measurement, control and laboratory use.
