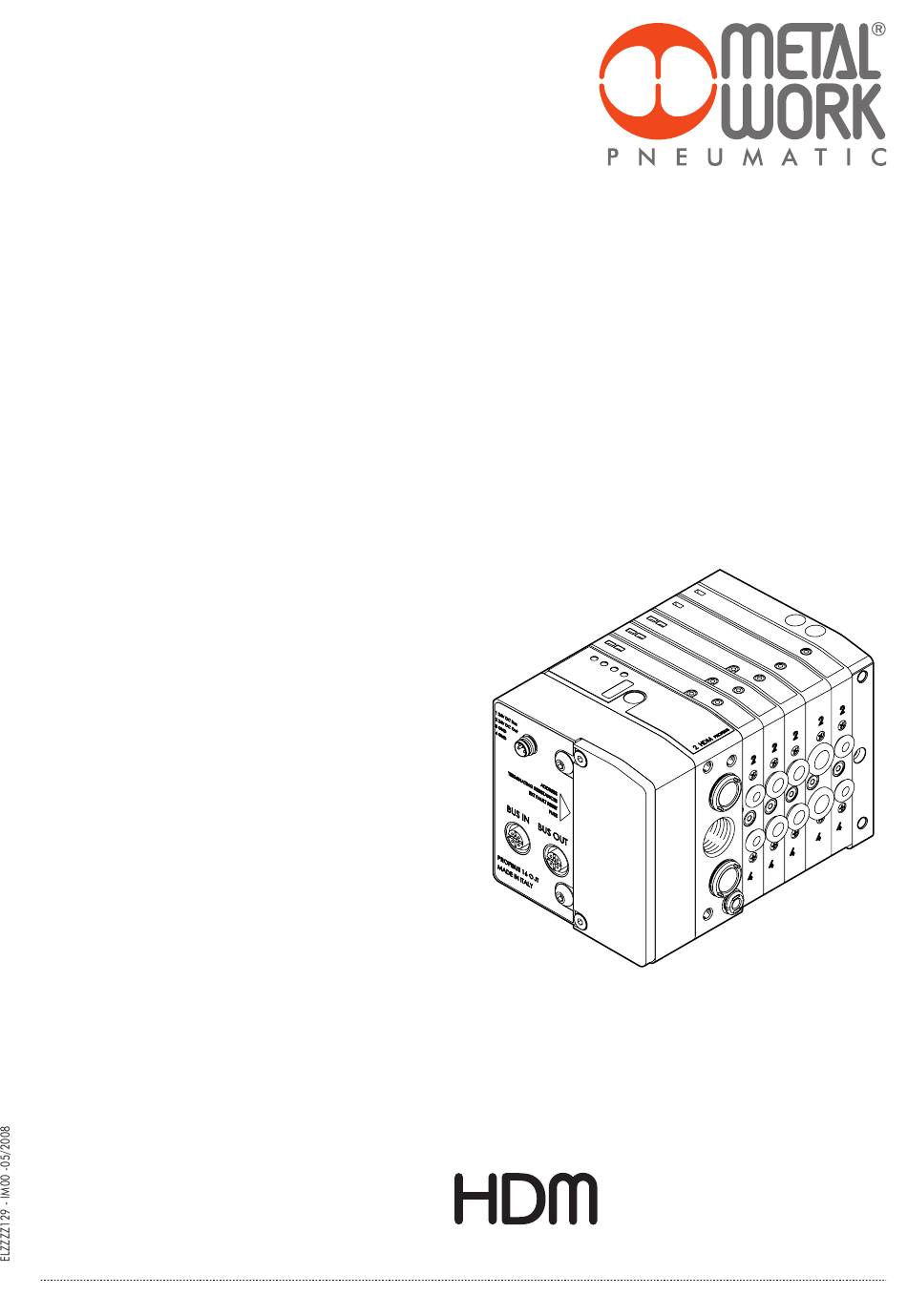

- Page 1 - PROFIBUS DP MANUAL...
-
Page 2: Power Supply
Heavy-Duty Multimach - Profibus DP valves can be used to link HDM islands to a Profibus network. They comply with Profibus DP DIN E 19245 specifications, feature diagnostic functions and are available with up to 16 outputs. 1. FEATURES 1.1 POWER SUPPLY An M8 connector is used for the power supply, which is separate from that of the bus, which means the power can be switched off if there is an alarm while the bus line remains active. - Page 3 FUSE BUS IN BUS OUT PROFIBUS 16 OUT MADE IN ITALY 2.3 DIAGNOSTICS The diagnostics of an HDM-Profibus module is defined by the status of the interface lights. MEANING Green Green power ON light BUS OK light BUS error light...
- Page 4 3. NODE INSTALLATION AND CONFIGURATION The elements required for the configuration and resumption of correct operation are situated below the cover, which can be removed by unscrewing the two screws using a 2.5 mm hexagonal wrench. WARNING • Power off the system before inserting or removing the connectors (risk of functional damage). •...
-
Page 5: Technical Data
Address mapping depends on Master configuration. 5. TECHNICAL DATA For general features, refer to the pneumatics section. DESCRIPTION DP PROFIBUS MODULE FOR HDM VALVES Factory setting: address Power supply 24 Vdc +/- 10% Slave protected by overload and polarity reversal... - Page 6 NOTES...
