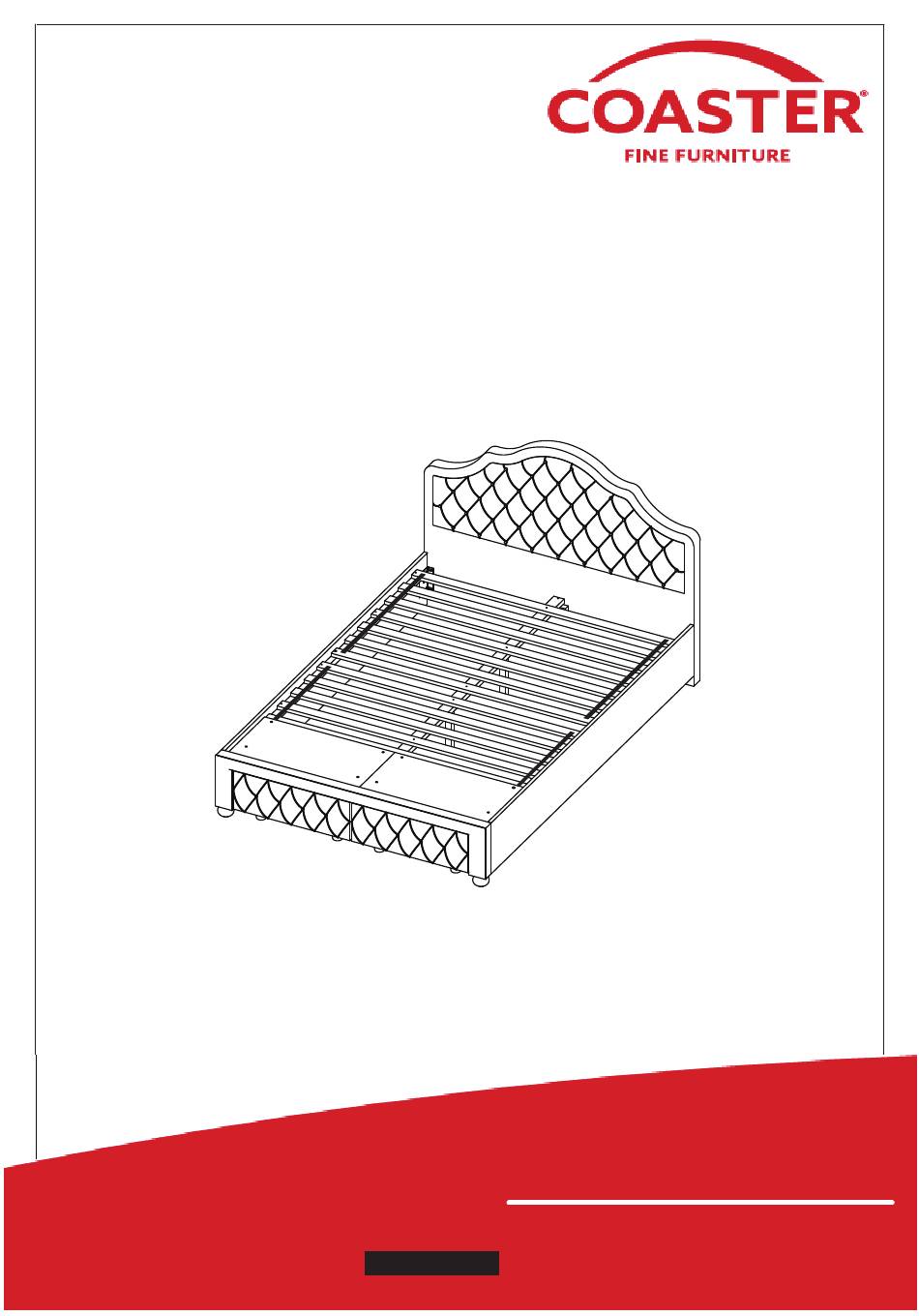

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 460540F(B1-B3) Full Storage Bed REVISION 0 : 06/19/2024 PAGE 1 OF 7 COASTERFURNITURE.COM...
-
Page 2: Parts Identification
460540F(B1-B3) ITEM: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2. This product is for home use only and not intended for commercial establishments. HARDWARE IDENTIFICATION Z-B2 (BOX 2) - HARDWARE PACK IS LOCATED IN 460540F(B2) ALLEN WRENCH 4 X 95mm- ZINC SHORT BOLT... - Page 4 460540F(B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 I & J STEP 3 I & J PAGE 4 OF 7 COASTERFURNITURE.COM...
- Page 5 460540F(B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 4 STEP 5 STEP 6 PAGE 5 OF 7 COASTERFURNITURE.COM...
- Page 6 460540F(B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 7 STEP 8 STEP 9 Please ensure end of Center Rail (E) is being inserted into Footboard (C) so that the Center Rail (E) seated on the drawer box casing. PAGE 6 OF 7 COASTERFURNITURE.COM...
- Page 7 460540F(B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 10 STEP 11 I & J STEP 12 I & J COMPLETE COASTERFURNITURE.COM PAGE 7 OF 7...
- Page 8 460540F(B1-B3) ITEM: Inner Size : 55.00"W x 76.00"D Inner Size of Drawer : 22.00"W x 14.50"D x 5.25"H x 0.50"T 57.25” 44.00” 7.75” 1.25” 15.75” 13.50” 27.50” 8.50” 2.00” 49.00” 77.75” 57.25” 83.75” Note: Dimension tolerance ±5% COASTERFURNITURE.COM...
