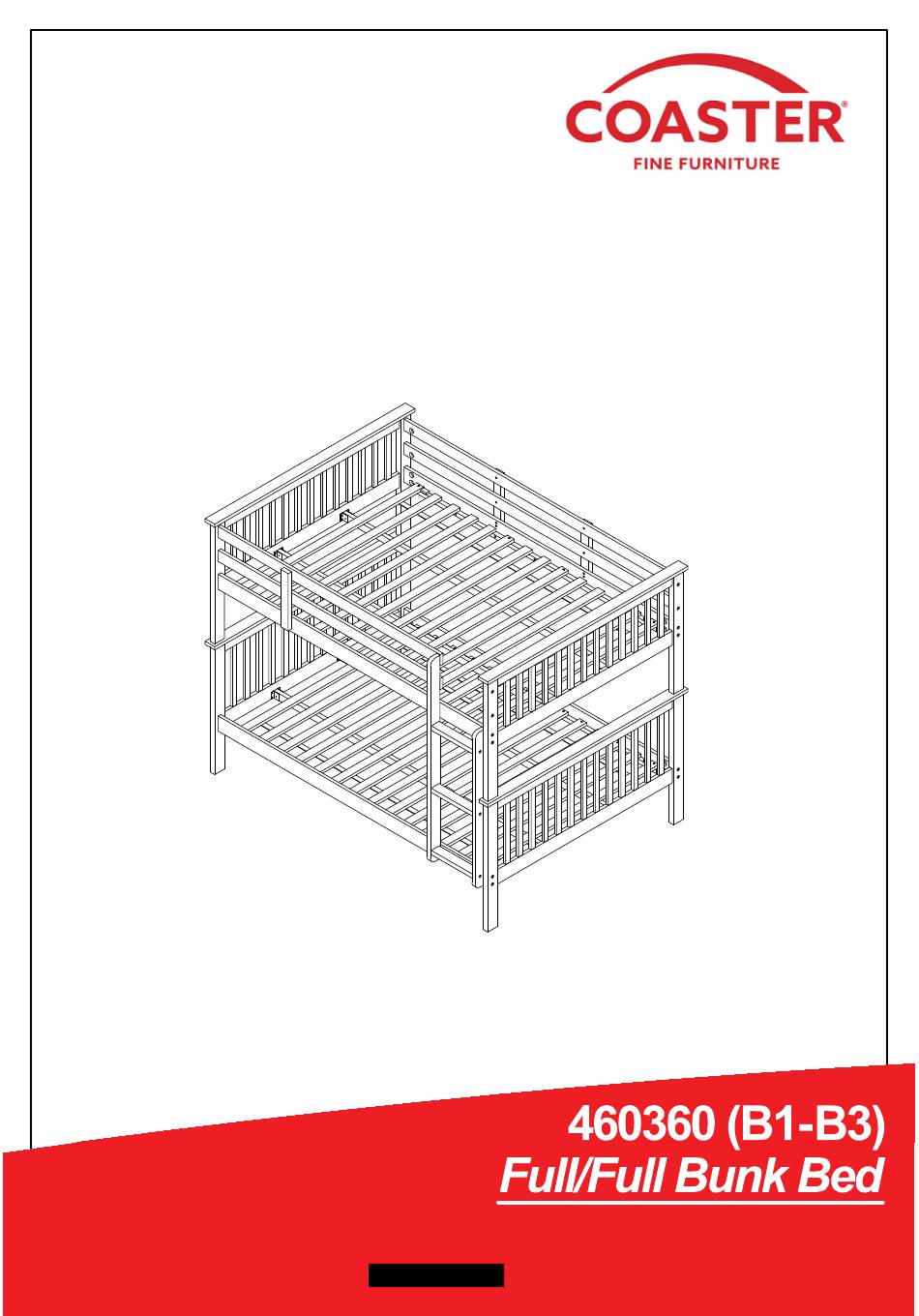

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life REVISION 0 : 12/22/2015 REVISION 1 : 09/10/2018 REVISION 2 : 02/24/2020 COASTERFURNITURE.COM PAGE 1 OF 9...
-
Page 2: Assembly Time
ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1. -
Page 3: Assembly Tips
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2. This product is for home use only and not intended for commercial establishments. HARDWARE IDENTIFICATION Z-B2 (BOX2) - HARDWARE PACK IS LOCATED IN 460360 (B2) WOOD DOWEL LONG BOLT 14PCS... - Page 4 ASSEMBLY INSTRUCTIONS UPPER BUNK STEP 1 STEP 2 COASTERFURNITURE.COM PAGE 4 OF 9...
- Page 5 ASSEMBLY INSTRUCTIONS LOWER BUNK STEP 3 STEP 4 COASTERFURNITURE.COM PAGE 5 OF 9...
- Page 6 ASSEMBLY INSTRUCTIONS LADDER STEP 5 STEP 6 COASTERFURNITURE.COM PAGE 6 OF 9...
- Page 7 ASSEMBLY INSTRUCTIONS STEP 7 COMPLETE COASTERFURNITURE.COM PAGE 7 OF 9...
- Page 8 Never attach or hang items to any part of the bunk bed that are not designed for use with the bed for example, but not limited to hooks, belts, and jump ropes. REPLACEMENT PARTS Replacement parts, including additional guardrails may be obtained from any COASTER Furniture Dealer. PAGE 8 OF 9...
- Page 9 Any misuse or unauthorized use of the ladder could result in serious or fatal injury. Failure to follow the above WARNING, and/or failure to follow assembly instructions completely, will void any and all liability of COASTER COMPANY OF AMERICA for damages and injury to persons and property.
- Page 10 INNER SIZE: 77.16" X 54.13" 79.72" 13.75" 16.14" 14.96" 22.92" 60.62" 9.25" 13.77" 9.25" 77.04" 8.27" 53.93" 11.81" 59.44" Note: Dimension tolerance ± 5% COASTERFURNITURE.COM...
