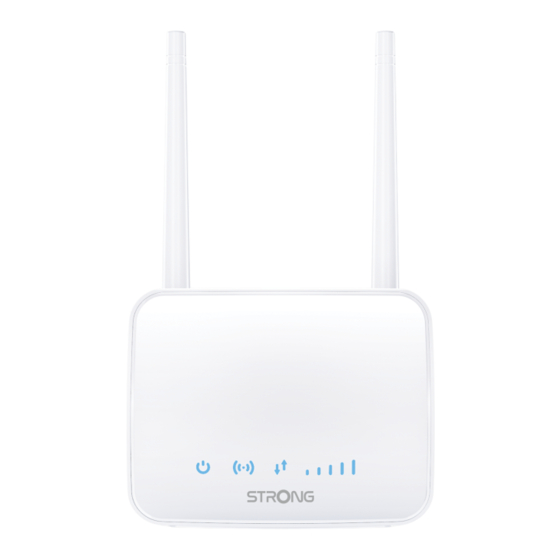

4G LTE ROUTER 350 MINI

4GROUTER350M

Table of Contents

Need help?

Do you have a question about the 350 MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for Strong 350 MINI

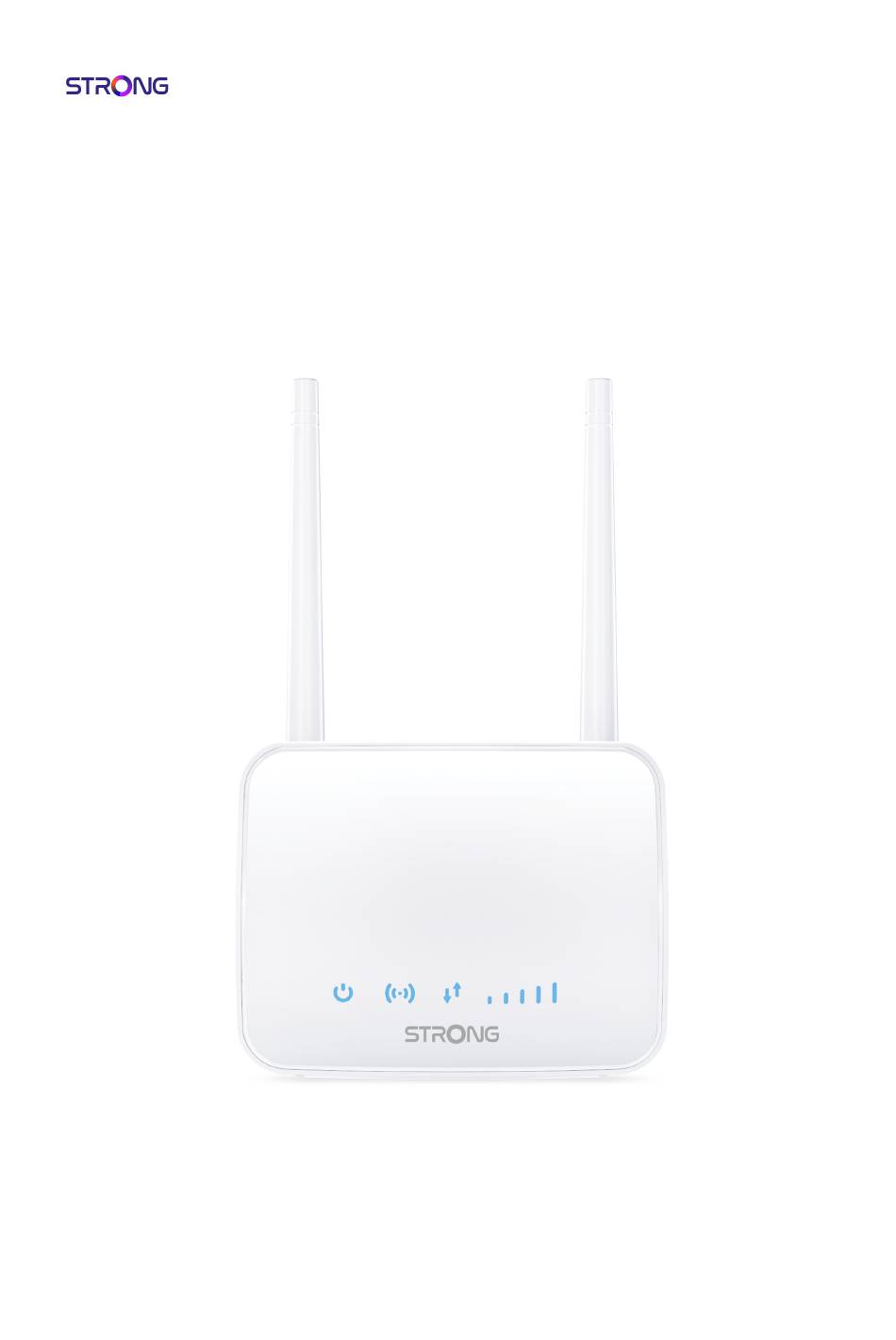

Page 1 4G LTE ROUTER 350 MINI 4GROUTER350M...
Page 2: Table Of Contents
1.3. Restart and Reset -------------------------------------------------------------------------------- 66 1.3.1. Restart Device ------------------------------------------------------------------------------ 66 1.3.2. USSD ----------------------------------------------------------------------------------------- 67 1.3.3. Connected Status ------------------------------------------------------------------------- 68 1.4. Network Settings -------------------------------------------------------------------------------- 69 1.4.1. Network Settings ------------------------------------------------------------------------- 69 Copyright © STRONG 2024. All Rights Reserved. 2 / 84...
Page 3 1.4.2.1. Guest SSID --------------------------------------------------------------------------- 74 1.4.2.2. Internet Wi-Fi ------------------------------------------------------------------------ 78 1.4.2.3. Advanced Settings ----------------------------------------------------------------- 79 1.4.2.4. WLAN MAC Filter ------------------------------------------------------------------- 81 1.5. Statistic Settings -------------------------------------------------------------------------------- 83 1.5.1. Data Management ------------------------------------------------------------------------ 83 Copyright © STRONG 2024. All Rights Reserved. 3 / 84...
Page 4: Introduction
On the front side of the device, you can see a few LEDs that give you information about the status of the network, Wi-Fi, WPS, etc. Let’s see the different meanings of these LEDs in detail, in the following picture. Copyright © STRONG 2024. All Rights Reserved. 4 / 84...
Page 6: Presentation Of The Web Ui
Advanced Settings: where you can set up the Wi-Fi Power Settings, Firewall, Router IP Address, Update the software, choose the band for the Internet coverage and create a SNTP. Copyright © STRONG 2024. All Rights Reserved. 6 / 84...
Page 7 Statistics: where you can set up an alert for the number of data used on your plan. Status Information: where you can see the information of your network (IP Address, Wi-Fi coverage type, Software version, etc.) Copyright © STRONG 2024. All Rights Reserved. 7 / 84...
Page 8: Configuring Your Device And Network
If your SIM card is micro or nano, please place the SIM card in the adapter provided in the package. To place your SIM card in the dedicated slot, you must remove the plastic cover of the slot. Copyright © STRONG 2024. All Rights Reserved. 8 / 84...
Page 10: Placing The Antennas
2. Placing the antennas After installing your SIM card, you must remove the cover located on the top rear side of your device to place the two external antennas as follows: Copyright © STRONG 2024. All Rights Reserved. 10 / 84...
Page 11: Switching On The Device
3. Switching on the device After that, you must insert the power cable in the power hole (A) and plug it into the outlet (B). Then press the Power button (C). Copyright © STRONG 2024. All Rights Reserved. 11 / 84...
Page 12 4GROUTER350M- User Guide 12 / 84 After a few seconds, the LEDs located on the front side of the device are lit if the sim card is unlocked. Copyright © STRONG 2024. All Rights Reserved. 12 / 84...
Page 15: Connecting Your Device With An Ethernet Cable And Accessing The Web Ui
To do so, insert the RJ45 cable in the WLAN hole located on the rear side of the device. Connect the other side of the cable to your device, as shown in the schema below: Copyright © STRONG 2024. All Rights Reserved. 15 / 84...
Page 16 4GROUTER350M- User Guide 16 / 84 Then you can access the Web UI by typing this IP Address in your browser: Next, you must enter the Password. Click Login. Copyright © STRONG 2024. All Rights Reserved. 16 / 84...
Page 17: Connecting To The Wi-Fi And Accessing The Web Ui
1. To connect to the Wi-Fi, look at the rear side of your router and locate the sticker where the SSID and Password are written. Then, enter the information in your device. Copyright © STRONG 2024. All Rights Reserved. 17 / 84...
Page 18 4GROUTER350M- User Guide 18 / 84 Then enter the following IP address in your browser: 192.168.188.1 A new page opens in which you must enter the Password before clicking the Login button. Copyright © STRONG 2024. All Rights Reserved. 18 / 84...
Page 19 For more information about the process to change your password, please refer to Changing the administrator password in the Web UI. Once you are connected to the Web UI, you will see the home page: Copyright © STRONG 2024. All Rights Reserved. 19 / 84...
Page 20: Changing The Administrator Password In The Web Ui
Connecting your Device with an Ethernet Cable and Accessing the Web UI  Connecting to the Wi-Fi and Accessing the Web UI Once this is done, click the Modify Login Password in the top bar. Copyright © STRONG 2024. All Rights Reserved. 20 / 84...
Page 21 (! # $ * + , - . % : = ? @ [ ] ^ _ { | } ~).  Confirm New Password: Enter the same password as in the previous field. Write down the new password to access the Web UI. Copyright © STRONG 2024. All Rights Reserved. 21 / 84...
Page 22: Entering Your Pin Code In The Web Ui
SIM card is locked by the PIN code and/or not properly detected. In this case, you must connect to the Wi-Fi and access the Web UI Enter your PIN code in the field and click Apply. Copyright © STRONG 2024. All Rights Reserved. 22 / 84...
Page 24: Enabling/Disabling The Wi-Fi
You can decide that you do not need to use the Wi-Fi of your router, if this is the case, simply press the Wi-Fi button located on the back of the router for 2 seconds. To reactivate it simply press it again for 2 seconds. Copyright © STRONG 2024. All Rights Reserved. 24 / 84...
Page 25: Editing The Apn Settings
You must connect to the Web UI. To do so, enter the SSID (Wi-Fi Network Name) and Wi-Fi password of the router in your device: Copyright © STRONG 2024. All Rights Reserved. 25 / 84...
Page 26 4GROUTER350M- User Guide 26 / 84 Then, enter the following IP address in your browser: 192.168.188.1 You must enter the Password. Then, click Login. Copyright © STRONG 2024. All Rights Reserved. 26 / 84...
Page 28 Look for the APN settings on your service provider’s website. You need to write down the following information: Name Username Password Authentication If the information is incorrect, click APN and then Manual and Add New. Copyright © STRONG 2024. All Rights Reserved. 28 / 84...
Page 29 Profile Name: enter the name of your service provider.  APN: enter the APN address. Authentication Type: Select the Authentication Type defined by your provider for your APN  between the following values (NONE, CHAP, PAP) Copyright © STRONG 2024. All Rights Reserved. 29 / 84...
Page 31: Activating The Wps
Wi-Fi network of the router. Go to the Wi-Fi settings of your computer and click on the name of the router to select it. Then, click the connect button Copyright © STRONG 2024. All Rights Reserved. 31 / 84...
Page 32: Resetting The Device To Its Factory Configuration
To do so, insert a paper clip in the hole to press the reset button. Press the reset button for 10 seconds. The LEDs will switch off and turn back on again. Copyright © STRONG 2024. All Rights Reserved. 32 / 84...
Page 34 Connecting your Device with an Ethernet Cable and Accessing the Web UI  Connecting to the Wi-Fi and Accessing the Web UI Then, click Firmware Update. Click Others. In the Restart and Reset section click reset Factory Settings. Copyright © STRONG 2024. All Rights Reserved. 34 / 84...
Page 35: Using The Web Ui
Once you have configured your device and network, you can customize some settings. For instance, you can decide to deactivate/edit your PIN code, edit the SSID and password, and update the firmware. Copyright © STRONG 2024. All Rights Reserved. 35 / 84...
Page 36: Disabling Your Pin Code In The Web Ui
To do so, follow the procedure below. You must connect to the Web UI. To do so, enter the SSID (Wi-Fi Network Name) and Wi-Fi password of the router in your device. Copyright © STRONG 2024. All Rights Reserved. 36 / 84...
Page 37 4GROUTER350M- User Guide 37 / 84 Then, enter the following IP address in your browser: 192.168.188.1 You must enter the Password. Then, click Login Copyright © STRONG 2024. All Rights Reserved. 37 / 84...
Page 41: Changing The Pin Code
It is possible to change the PIN code of your SIM card in the Web UI. To do so, follow the procedure below. You must connect to the Web UI. To do so, enter the SSID (Wi-Fi Network Name) and Wi-Fi password of the router in your device. Copyright © STRONG 2024. All Rights Reserved. 41 / 84...
Page 43 4GROUTER350M- User Guide 43 / 84 Then, enter the following IP address in your browser: 192.168.188.1 You must enter the Password. Then, click Login Copyright © STRONG 2024. All Rights Reserved. 43 / 84...
Page 48 Connecting to the Wi-Fi and Accessing the Web UI • Connecting your Device with an Ethernet Cable and Accessing the Web UI To do so, click Quick Settings in the top bar. Click Next. Copyright © STRONG 2024. All Rights Reserved. 48 / 84...
Page 49 4GROUTER350M- User Guide 49 / 84 Enter the new network name and click Next. Click Display password and enter the new password for the Wi-Fi network, then click Next. Copyright © STRONG 2024. All Rights Reserved. 49 / 84...
Page 52 Connecting to the Wi-Fi and Accessing the Web UI Click Wi-Fi Settings in the Network Settings Section. Click display password and enter the following information before clicking Apply: Enter the new network name. Enter the new Wi-Fi password. Copyright © STRONG 2024. All Rights Reserved. 52 / 84...
Page 54: Updating The Device Firmware
To do so, connect to the Web UI, please follow on these procedures:  Connecting your Device with an Ethernet Cable and Accessing the Web UI Connecting to the Wi-Fi and Accessing the Web UI  Click Firmware Update. Copyright © STRONG 2024. All Rights Reserved. 54 / 84...
Page 56: Customized Settings
To use the port filtering option, you must connect to the Wi-Fi of your router by following one of these procedures: • Connecting your Device with an Ethernet Cable and Accessing the Web UI Copyright © STRONG 2024. All Rights Reserved. 56 / 84...
Page 57 57 / 84 • Connecting to the Wi-Fi and Accessing the Web UI Click Advanced Settings Click Firewall and Port Filtering Click Enable and select accepted or dropped. Then click Apply. Copyright © STRONG 2024. All Rights Reserved. 57 / 84...
Page 58: Port Mapping
To use the port mapping option, you must connect to the Wi-Fi of your router by following one of these procedures: • Connecting your Device with an Ethernet Cable and Accessing the Web UI • Connecting to the Wi-Fi and Accessing the Web UI Click Advanced Settings. Copyright © STRONG 2024. All Rights Reserved. 58 / 84...
Page 59 Click Firewall and Port Mapping. Click Enable and Apply. Enter the following information before clicking Apply: a. Source port: For a HTTP service enter 80 For more information about the different port services, see. Copyright © STRONG 2024. All Rights Reserved. 59 / 84...
Page 60: Port Forwarding
UI, follow one of these procedures:  Connecting to the Wi-Fi and Accessing the Web UI  Connecting your Device with an Ethernet Cable and Accessing the Web UI Click Advanced Settings. Copyright © STRONG 2024. All Rights Reserved. 60 / 84...
Page 61 Port Range: For a HTTP service enter 80-80. For more information about the different port services, see. c. Protocol: Choose the type of protocol in the dropdown list (TCP+UDP, TCP or UDP) d. Comment: Enter a name for the port mapping rule Copyright © STRONG 2024. All Rights Reserved. 61 / 84...
Page 62: Upnp
 Connecting your Device with an Ethernet Cable and Accessing the Web UI  Connecting to the Wi-Fi and Accessing the Web UI Click Advanced Settings Click Firewall and UPnP. Copyright © STRONG 2024. All Rights Reserved. 62 / 84...
Page 63: Dmz
Web UI. Please refer to the following procedures to connect to Web UI: Connecting your Device with an Ethernet Cable and Accessing the Web UI  Connecting to the Wi-Fi and Accessing the Web UI  Click Advanced Settings. Copyright © STRONG 2024. All Rights Reserved. 63 / 84...
Page 64: Band Selection
Click Enable and enter the IP Address of your device before clicking Apply. 1.2.6. Band Selection You can use this feature if you need to authorise access only to specific bands of the mobile Copyright © STRONG 2024. All Rights Reserved. 64 / 84...
Page 65 4GROUTER350M- User Guide 65 / 84 network. Click Firmware Update. Click Band Selection and select all the bands that you want to activate. Then, click Apply. Copyright © STRONG 2024. All Rights Reserved. 65 / 84...
Page 66: Restart And Reset
4GROUTER350M- User Guide 66 / 84 1.3. Restart and Reset 1.3.1. Restart Device Click Advanced Settings. Click Others and Restart Device. Copyright © STRONG 2024. All Rights Reserved. 66 / 84...
Page 67: Ussd
Web UI. To use the USSD codes in the Web UI, please connect to the Wi-Fi or use the internet connection of the router by following one of these procedures: Copyright © STRONG 2024. All Rights Reserved. 67 / 84...
Page 68: Connected Status
You can disconnect the mobile network temporarily by clicking the Connected Status toggle button. This step is necessary to configure some settings like the PIN Code or Firewall. You can also see the upload and download speed of your connection. Copyright © STRONG 2024. All Rights Reserved. 68 / 84...
Page 69: Network Settings
4GROUTER350M- User Guide 69 / 84 1.4. Network Settings 1.4.1. Network Settings 1.4.1.1. Connection Mode Click the Connect Status toggle button. Copyright © STRONG 2024. All Rights Reserved. 69 / 84...
Page 71: Network Selection
If you have any issues with the 3G or 4G connection of you SIM Card you can switch the Network selection to manual. Click the Connect Status toggle button. Copyright © STRONG 2024. All Rights Reserved. 71 / 84...
Page 73 Click Network Selection and select Manual. Then, click Search. Wait until a list of available network is displayed. In the list select the 3G or 4G network of your service provider depending on what offers you the best coverage. Then? click Register. Copyright © STRONG 2024. All Rights Reserved. 73 / 84...
Page 74: Wi-Fi Settings
4GROUTER350M- User Guide 74 / 84 1.4.2. Wi-Fi Settings 1.4.2.1. Guest SSID You can configure a guest Wi-Fi Network on your router Click Wi-Fi Settings in the network tab. Copyright © STRONG 2024. All Rights Reserved. 74 / 84...
Page 75 4GROUTER350M- User Guide 75 / 84 Click Guest Wi-Fi and then click Enable on the Wi-Fi and Multi SSID fields. Then, click Apply. Click Yes. Copyright © STRONG 2024. All Rights Reserved. 75 / 84...
Page 78: Internet Wi-Fi
You can enable the Wi-Fi switch which will deactivate your Main Wi-Fi Network and Guest Wi-Fi Network automatically. Click Wi-Fi Settings Click Internet Wi-Fi and select Enable in the Internet Wi-Fi Switch section. Then, click Apply. Copyright © STRONG 2024. All Rights Reserved. 78 / 84...
Page 79: Advanced Settings
Click Yes. 1.4.2.3. Advanced Settings You can update the settings ofyour Network by selecting a specific band for the 4G network that is used by your router. Click Wi-Fi Settings Copyright © STRONG 2024. All Rights Reserved. 79 / 84...
Page 80 Network Mode: select the right value in the list. Channel Bandwidth: select the appropriate value in the list Country Region Code: Select your country in the list Frequency Channel: Select the right frequency in the list Copyright © STRONG 2024. All Rights Reserved. 80 / 84...
Page 81: Wlan Mac Filter
Write down the MAC addresses before entering them into the Web UI. This way you will be able to use your computer in Wi-Fi or by plugging an ethernet cable. Copyright © STRONG 2024. All Rights Reserved. 81 / 84...
Page 82 4GROUTER350M- User Guide 82 / 84 Click Wi-Fi Settings Click WLAN MAC Filter and select white list or black list. White List is used to set up a list of Copyright © STRONG 2024. All Rights Reserved. 82 / 84...
Page 83: Statistic Settings
On the other hand, Black List is used to block the access of devices. Then, enter the MAC Address of the device and click Apply. 1.5. Statistic Settings 1.5.1. Data Management Click the link in the Statistics tab. Copyright © STRONG 2024. All Rights Reserved. 83 / 84...
Page 84 4GROUTER350M- User Guide 84 / 84 Click Enable and enter the information of your data plan by clicking the edit button to limit the usage before clicking Apply. Copyright © STRONG 2024. All Rights Reserved. 84 / 84...
