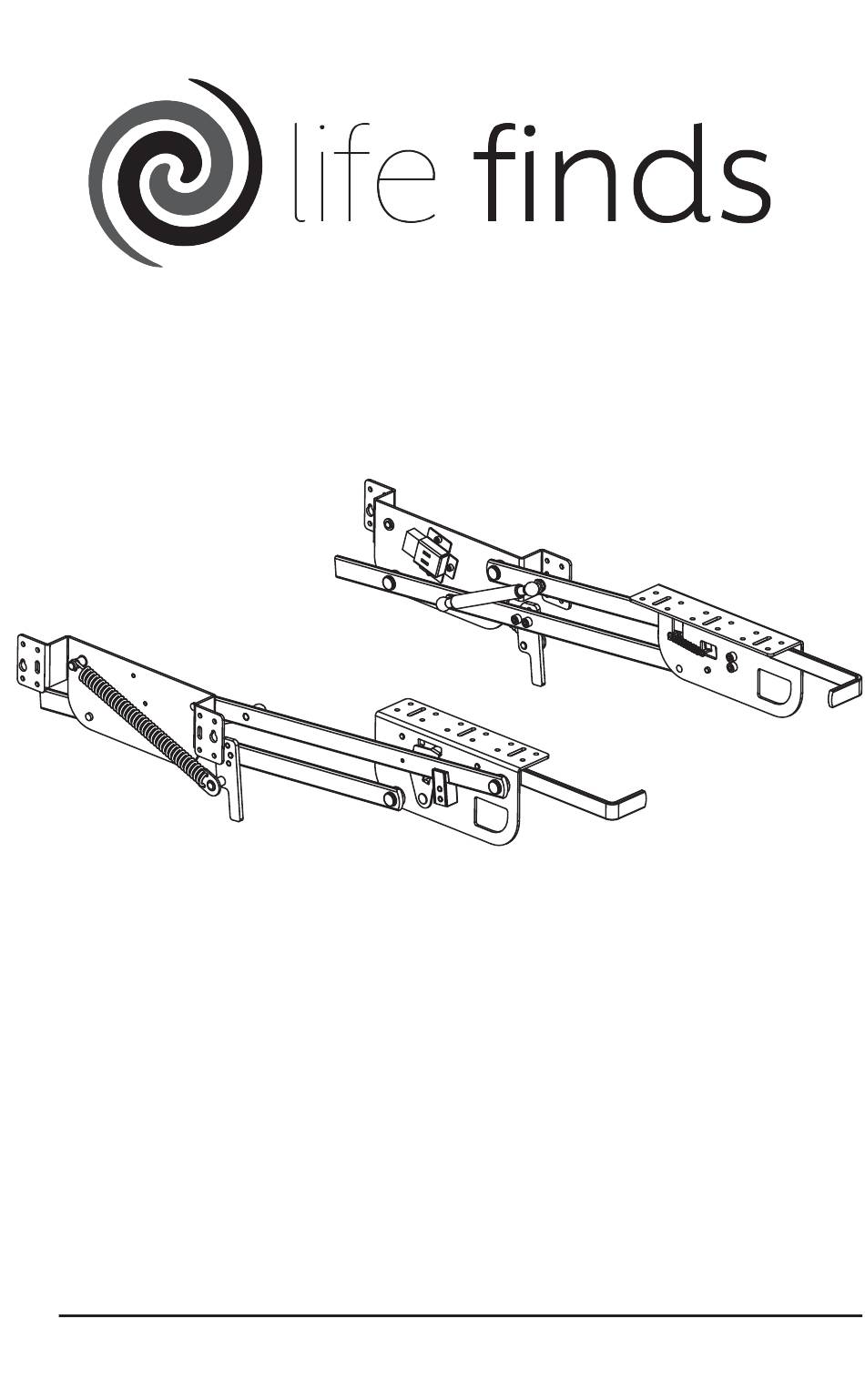

- Page 1 Kitchen Appliance Lifting Brackets SKU: LF-KAL01 Instruction Manual...
- Page 2 CAUTION! If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@life-finds.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Right Mounting Left Mounting Mounting Template Bracket Bracket Included Hardware & Tools S-A (x32) ST4.8x16mm Screw Tools Needed: Weight Capacity: 33lbs (15kg) Phillips Power Screwdriver Drill Tape Pencil Measure 1/8” Drill Bit Wrench PLEASE NOTE: This product is only compatible with cabinets... -
Page 4: Pre-Assembly
PRE-ASSEMBLY This step is required for Cabinets with a Face Frame ONLY. If you have a frameless cabinet, please proceed to Assembly Steps. Frameless Cabinet Cabinet w/Face Frame Cabinets with Fame Frame Add Support Panel: Cabinets with a front face frame will need a custom support panel (not included) added to make the interior wall flush with the face frame of the cabinet. - Page 5 TOP DOWN VIEW CABINET FRONT FACEFRAME SUPPORT PANEL CLOSE-UP SURFACES OF SUPPORT PANEL MUST BE EQUAL TO THE FACE FRAME OVERLAY CABINET FRONT FACEFRAME CABINET FLOOR SUPPORT PANEL **PLEASE NOTE: Support plate and mounting hardware for securing support place is NOT INCLUDED.
- Page 6 STEP 1 To calculate the shelf width [not provided] needed for your cabinet, please follow the guidelines below: Framed Cabinets: Measure the total distance between the installed support panels. Framedless Cabinets: Measure the total distance between the interior cabinet walls. Take your width measurement (W) and subtract 4”...
- Page 7 STEP 2 Place Left and Right Mounting Brackets (A,B) on your shelf and use a tape measure to determine the correct placement, according to the image shown below. Mounting Hole 3” Locations (76mm) Pre-drill 1/8” (3mm) Pilot Holes [x6] 3” (76mm) 1 1/4”...
- Page 8 STEP 3 Position Mounting Template (C) based on the measurements provided in the diagram below. All measurements are based off of the center of the slot closest to the front of the cabinet. The hole should be marked 2” (51mm) in from the front of the cabinet and 4 ½” (115mm) from the bottom of the face frame (if applicable).
- Page 9 STEP 4 Pre-drill marked holes using a ⅛” (3mm) drill bit, drilling ½” (12mm deep). Partially insert ST4.8x16mm Screws (S-A) into the back and front pre-drilled holes that align with the keyhole slots on the Mounting Brackets. Repeat for other side. S-A (x2)
- Page 10 STEP 5 Attach Right Mounting Bracket (A) by sliding the Side Mount Bracket over and down on the partially installed screws. Tighten with a power drill or Phillips screwdriver. Repeat step for Left Mounting Bracket (B) Side Mount Bracket Repeat step for Left Mounting Bracket (B) Install ST4.8x16mm Screws (S-A) into the front and rear slots on Right Mounting Bracket (A) using a...
- Page 11 STEP 6 Adjust the Left and Right Mounting Brackets (B,A) to the open position ensuring the locking mechanism is engaged. Attach your shelf to Left and Right Mounting Brackets (B,A) using ST4.8x16mm Screws (S-A) and a Phillips screwdriver. Ensure the side edges of the shelf are flush with the shelf mounting brackets before fully tightening the screws.
- Page 12 STEP 7 Pull shelf down to open position inside the cabinet. Place a level on the shelf and, with one hand on the shelf, loosen the screws in the front slots of the Mounting Brackets (A,B) using a Phillips screwdriver. Adjust the shelf angle so that the front of the shelf is slightly angled up, then tighten screws.
- Page 13 Adjusting Bracket Tension There are 3 adjustable spring tension settings on the brackets: T1). 0-11lbs (0-5kg) T2). 11-22lbs (5-10kg) T3). 22-33lbs (10-15kg) The product is shipped with the spring setting set to the highest adjustment being 22-33lbs (10- 15kg). Tension may be adjusted, but we recommend leaving the tension as is for most appliances for the best user experience.
- Page 14 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 15 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
-
Page 16: Last Updated
LAST UPDATED: 05/13/24 REV1 V1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com 309-278-5303...
