Linortek Netbell-4-4Bel Installation And Wiring Instructions

Netbell-4-4Bel Installation and Wiring
Instructions
Package Contents Checklist
☐ Netbell-4K Server (01-910-00035) (1)
☐ Bell Kit (01-910-00044) (4)
☐ 20FT RJ45 Cable (01-390-00028) (1)
☐ 3M Power Cable (01-850-00029) (1)
☐ 12VAC Power Supply (01-850-00022) (1)
☐ 3M Bell Cables (01-850-00046) (4)
☐ Wago Connector (01-350-00129) (4)
☐ 1 Set of Mounting Brackets (1)
☐ Netbell Setting Instructions
☐ This Installation Guide
Installation Steps
Step 1: Mounting the Netbell-4 Controller
1. Choose a dry, indoor location for installation
2. Using the provided mounting brackets:
– Attach mounting brackets to the SERVER using
provided self-tapping screws (4 places)
– Install the SERVER at desired location using
appropriate screws for your wall type
– Ensure adequate ventilation around the unit

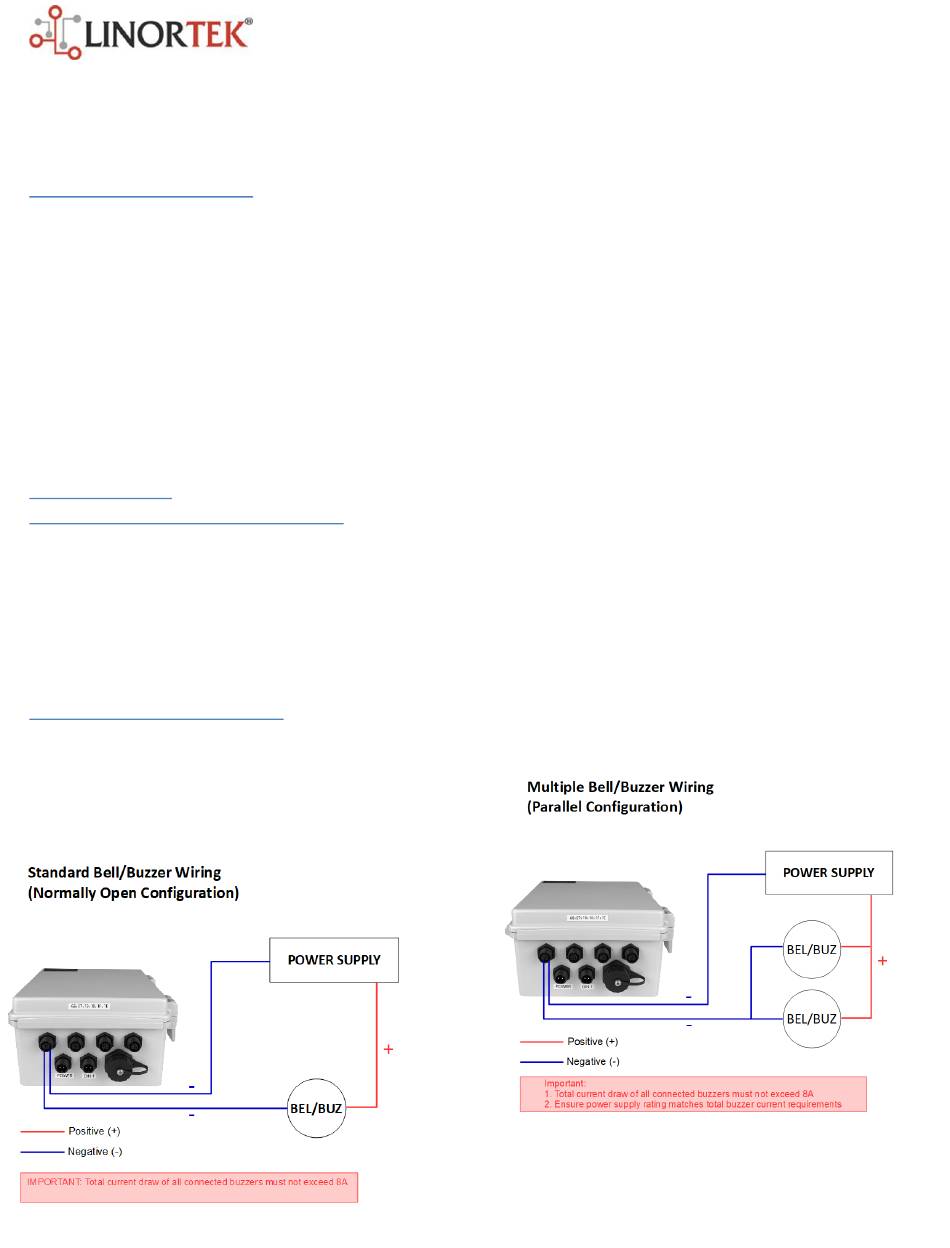

Step 2: Buzzer Wiring Instructions
Relay Output Specifications:
- Four relay outputs for controlling timed signal
equipment, labeled as EXT1 to EXT-4
- Dry Contact type (1-Form-A relay)
- Maximum rating: 48VAC @ 8A per relay
- Normally Open (NO) contacts, convertible to NC if
needed
Bell Wiring Steps:
1. Bell Mounting and Cable Requirements:
- Mount the pre-wired bell kit at the location you
would like to have your bell
- You can extend the power cable of the bell if
needed
- Bell can be installed at 500 feet away from
controller using 16AWG cable
2. Basic Connection Setup: the relays on the Netbell-4
K are dry contact relay with CP connector and four
bell cables (3M) come with your Netbell-4K.
– Connect CP connector side of bell cable to one of
the bell outputs (EXT1 to EXT4)
– Connect one power source wire to one side of the
bell
– Connect other power wire to one side of the bell
cable
– Connect remaining bell wire to other side of bell
cable
– Repeat wiring process for all four bells
3. Multiple Bell Configuration:
- Each relay can control devices up to 8A total current
- Total current draw of all connected bells must not
exceed 8A
- Ensure power supply rating matches total bell
current requirements
- Verify total current draw is within specifications
before operation
IMPORTANT NOTES:
- This device is NOT designed to directly switch line
voltage (120V/240V)
