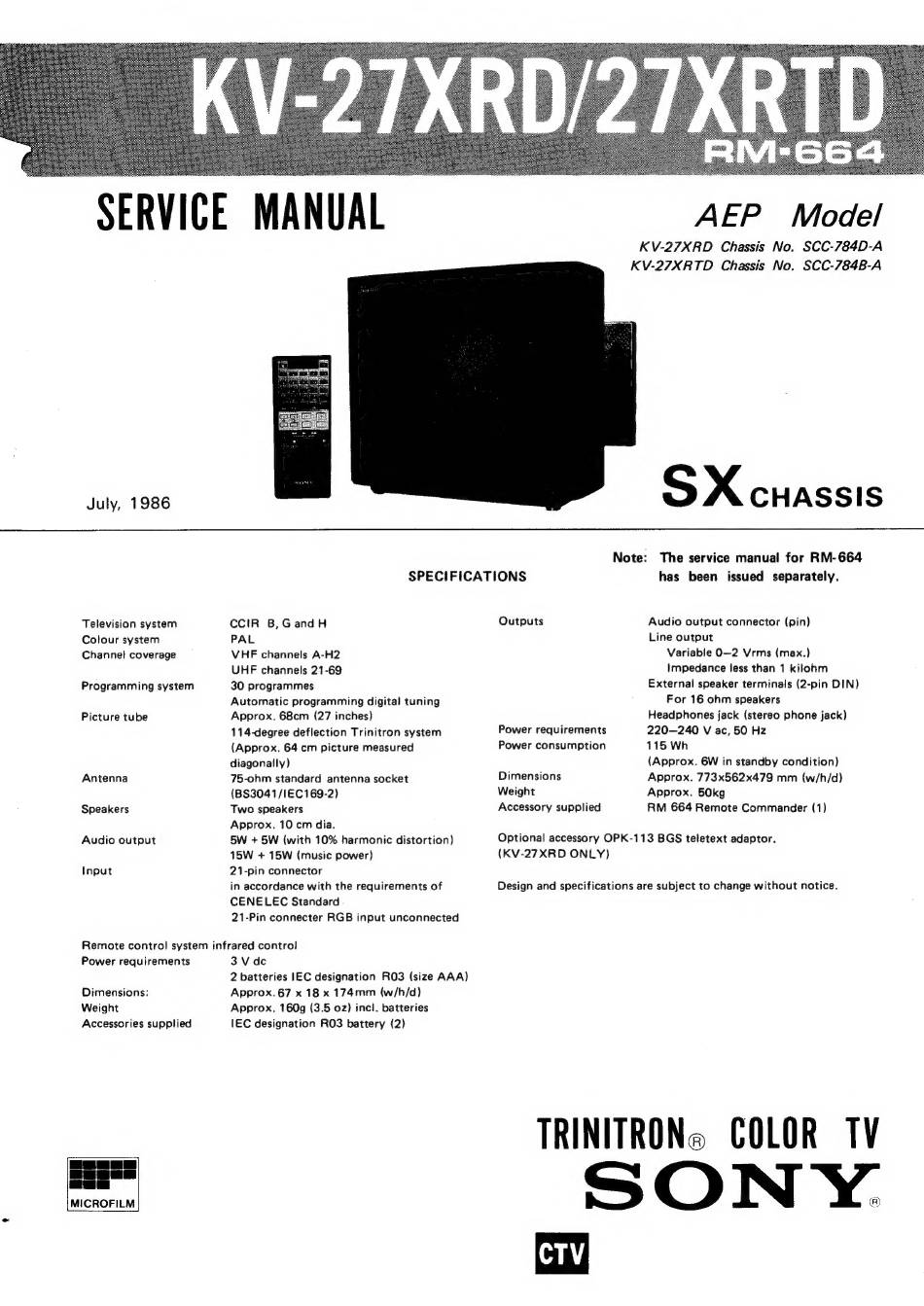

SERVICE MANUAL
AEP
Model
KV-27XRD
Chassis No. SCC-784D-A
KV-27XRTD
Chassis No. SCC-784B-A
SX
cuassis
July, 1986
Note:
The service manual for RM-664
SPECIFICATIONS
has
been
issued
separately.
Television system
CCIR
B,GandH
Outputs
Audio output connector (pin)
Colour system
PAL
Line output
Channel coverage
VHF channels A-H2
Variable O—2 Vrms (max.)
UHF channels 21-69
Impedance less than 1 kilohm
Programming system
30 programmes
External speaker terminals (2-pin DIN)
Automatic programming digital tuning
For 16 ohm speakers
Picture tube
Approx. 68cm (27 inches)
Headphones jack (stereo phone jack)
114-degree deflection Trinitron system
Power requirements
220—240 V ac, 50 Hz
(Approx. 64 cm picture measured
Power consumption
115 Wh
diagonally)
(Approx. 6W in standby condition)
Antenna
75-ohm standard antenna socket
Dimensions
Approx. 773x562x479 mm (w/h/d)
(BS3041/1EC169-2)
Weight
Approx. 50kg
Speakers
Two speakers
Accessory supplied
RM 664 Remote Commander (1)
Approx. 10 cm dia.
Audio output
5W + 5W (with 10% harmonic distortion)
Optional accessory OPK-113 BGS teletext adaptor.
15W + 15W (music power)
(KV-27XRD ONLY)
Input
21-pin connector
in accordance with the requirements of
CENELEC Standard
21-Pin connecter RGB input unconnected
Remote control system infrared contro!
Power requirements
3 V de
2 batteries IEC designation RO3 (size AAA)
Dimensions:
Approx. 67 x 18 x 174mm (w/h/d)
Weight
Approx. 160g (3.5 02) incl. batteries
Accessories supplied
tEC designation RO3 battery (2)
||
MICROFILM
Design and specifications are subject to change without notice.
TRINITRON= COLOR TV
SONY.
