Sony TRINITRON KV-27XBR51 Service Manual

(5-19

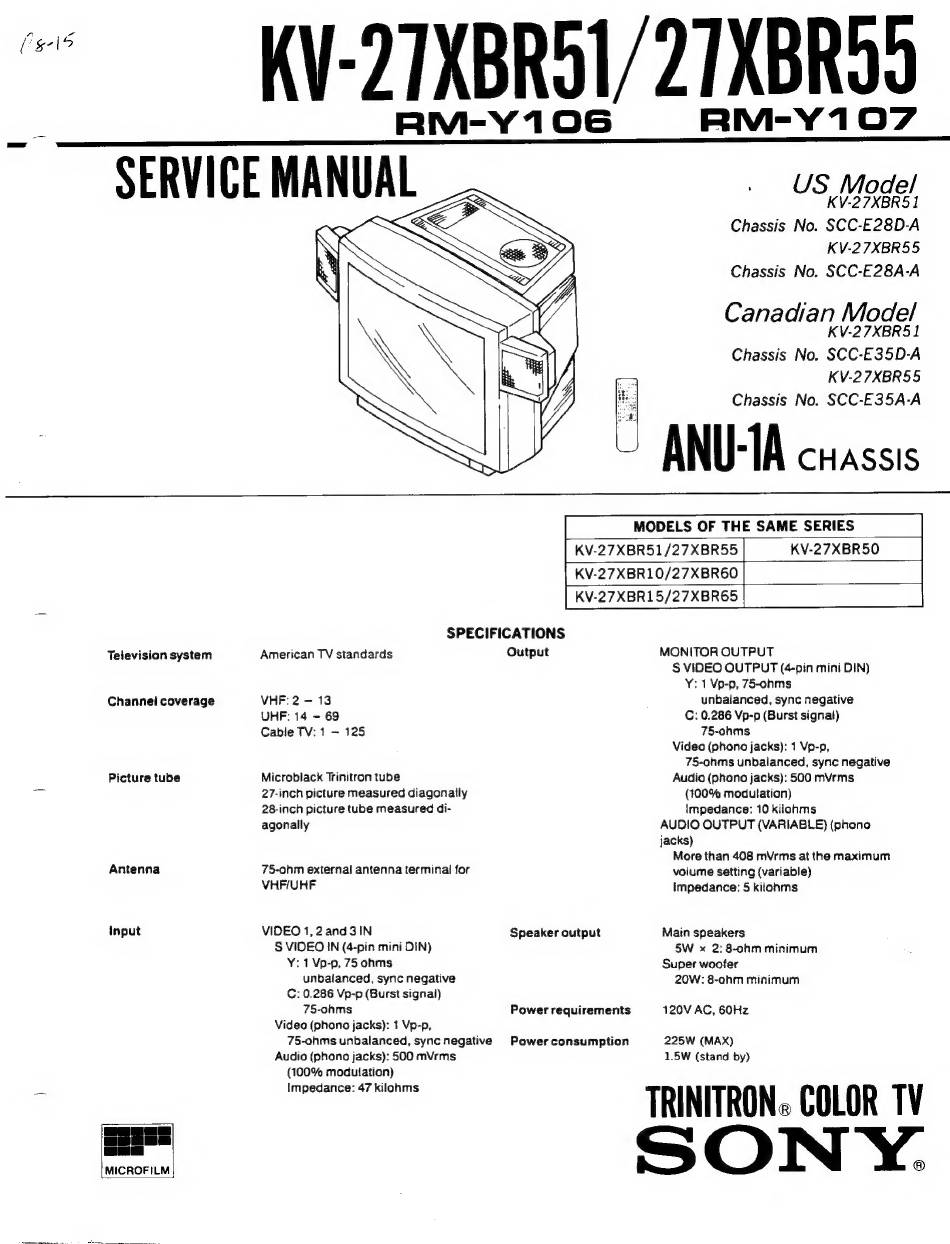

SERVICE MANUAL
RM-Y107
- US Model
KV-27XBR51
Chassis No. SCC-E28D-A
KV-27XBR55
Chassis No. SCC-E28A-A
Canadian Model
KV-27XBR51
Chassis No. SCC-E35D-A
KV-27XBR55
Chassis No. SCC-E35A-A
ANU-1A CHASSIS
Television system
Channel coverage
Picture tube
Antenna
input
am
MICROFILM
MODELS OF THE SAME SERIES
KV-27XBR51/27XBR55 |
KV-27XBR50
KV-27XBR10/27XBR60 |
SPECIFICATIONS
American TV standards Output
VHF: 2 -— 13
UHF: 14 - 69
Cable TV: 1 — 125
Microblack Trinitron tube
27-inch picture measured diagonally
28-inch picture tube measured di-
agonally
75-ohm external antenna terminal for
VHF/UHF
VIDEO 1, 2and3 IN
S VIDEO IN (4-pin mini DIN)
Y: 1 Vp-p, 75 ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal)
75-ohms
Video (phone jacks): 1 Vp-p,
75-ohms unbalanced, sync negative
Audio (phono jacks): 500 mVrms
(100% modulation)
Impedance: 47 kilonms
Speaker output
Power requirements
Power consumption
KV-27XBR15/27XBR65
MONITOR OUTPUT
S$ VIDEO OUTPUT (4-pin mini DIN)
Y: 1 Vp-p, 75-ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal)
75-ohms
Video (phono jacks): 1 Vp-p,
75-ohms unbalanced, sync negative
Audio (phono jacks): 500 mVrms
(100% modulation)
impedance: 10 kilohms
AUDIO OUTPUT (VARIABLE) (phono
jacks)
More than 408 mVrms at the maximum
volume setting (variable)
Impedance: 5 kitohms
Main speakers
5W x 2: 8-ohm minimum
Super woofer
20W: 8-ohm minimum
120V AC, 60Hz
225W (MAX)
1.5W (stand by)
TRINITRON.. COLOR TV
