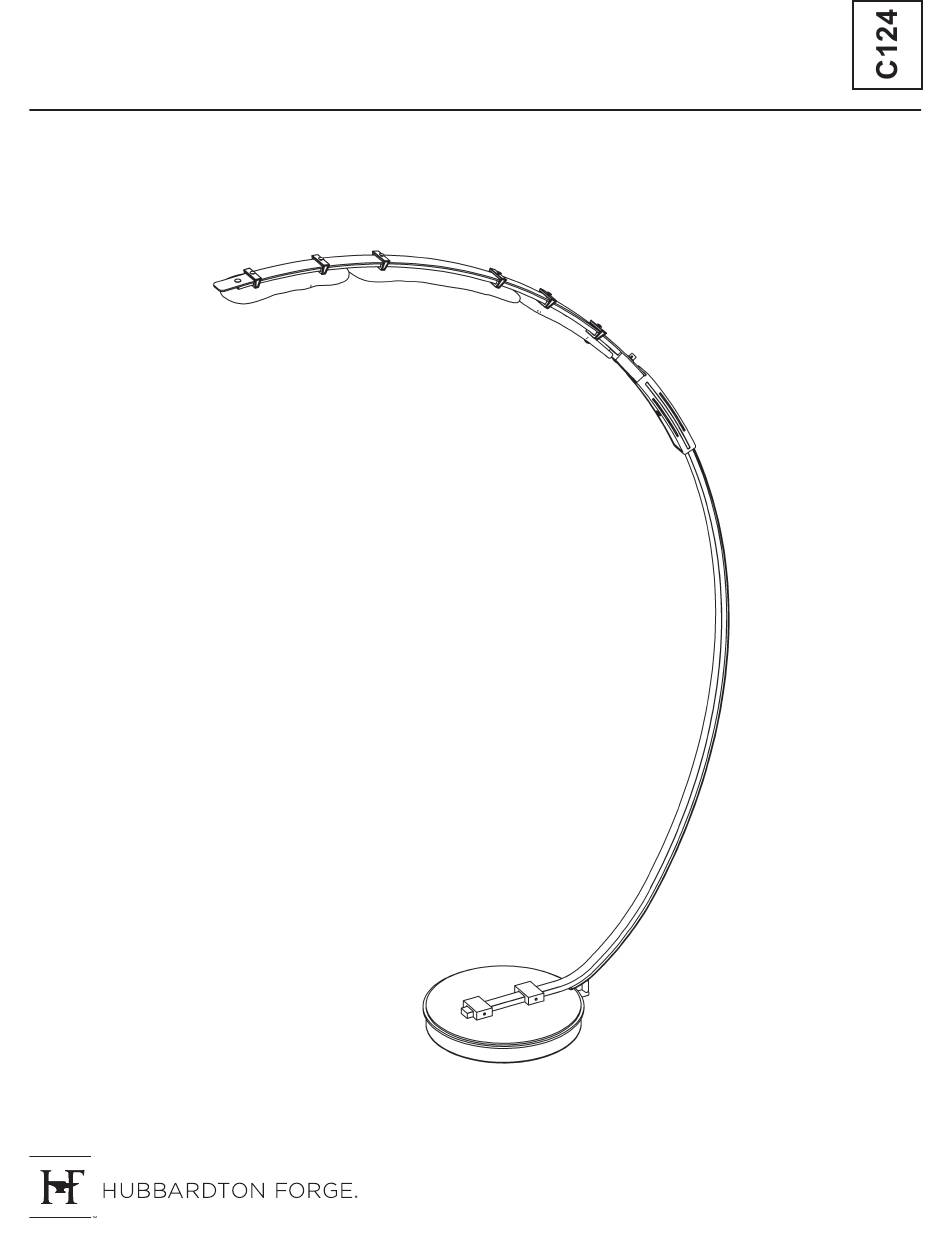

- Page 1 ASSEMBLY & INSTALLATION INSTRUCTIONS Glissade Floor Lamp - 241108 MODERN AMERICAN BLACKSMITHS | FINE, HAND CRAFTED LIGHTING CASTLETON, VERMONT USA | HUBBARDTONFORGE.COM 56861 1 OF 6...
- Page 2 ASSEMBLY & INSTALLATION INSTRUCTIONS Glissade Floor Lamp - 241108 Component Parts Base Wireway Blocks (2) 1/4-20 Set Screws (4) Base Connector Quick Connect LED Assembly Small Set Screws (2) Wire Connector (4) Cover Plate Thumb Screw (2) Glass Short (2)
- Page 3 ASSEMBLY & INSTALLATION INSTRUCTIONS Glissade Floor Lamp - 241108 CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJU- RY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*...
- Page 4 ASSEMBLY & INSTALLATION INSTRUCTIONS Glissade Floor Lamp - 241108 Install LED Assembly (Figure 2) 1. Carefully unpack LED assembly (G). Lo- cate end with wires. 2. Align end of LED assembly (G) with wires, with opening on wireway (B). 3. Slide wires through opening in wireway (B) and insert LED assembly (G) in wireway (B) until it stops.
- Page 5 ASSEMBLY & INSTALLATION INSTRUCTIONS Glissade Floor Lamp - 241108 To Make Wiring Connections (Figure 3) 1. Base wires are shipped with connectors (I) attached. 2. Use the chart below to attached LED wires to Base wires. Labels have also been applied to the wires.
- Page 6 If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product. We hope you enjoy your fixture! * Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture. MODERN AMERICAN BLACKSMITHS | FINE, HAND CRAFTED LIGHTING CASTLETON, VERMONT USA | HUBBARDTONFORGE.COM...
