Assembly Instructions
Mobius Floor Lamp 23-4505 & 23-4505C

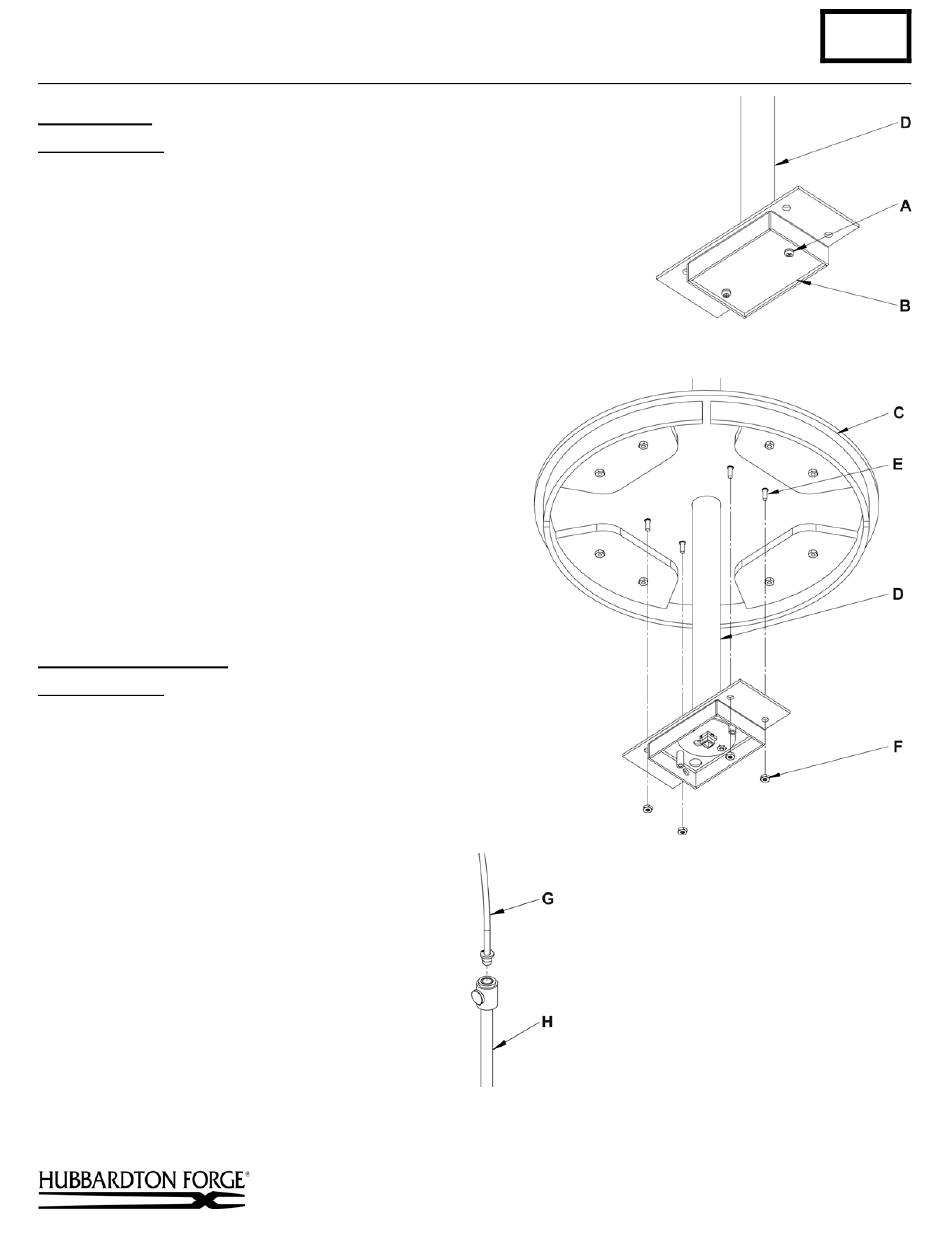

Prepare Base

(Figures 1& 2)
Component Parts
A 8-32 Screw (2)
B Wireway Cover Plate
C Base
D Lower Pipe Assembly
E Threaded Stud (4)
F Hex Nut (4)
1. Carefully unpack the lamp from the carton. The lamp has been
packaged with the cord routed through the various
parts of the lamp. Take care not to damage the cord
when removing the lamp from the packaging.
2. Remove two 8-32 screws (A) holding wireway
cover plate (B) to fixture. Set all parts to the side
for later use.
3. Slip base (C) over lower pipe assembly (D)
allowing the four threaded studs (E) to slip thru the
four holes in the lower pipe assembly (D).
4. Install four hex nuts (F) onto threaded stud (E) and
tighten.
Assemble Mid-Section
Component Parts
G Arm Assembly
H Tube Assembly
1. Thread arm assembly (G) to tube assembly (H), be
certain not to twist the cord.
(Figure 3)
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont
(Figure 3)
C35
Page 1 of 7
(Figure 1)
(Figure 2)
(continued)
24809 Rev C
