Summary of Contents for AEG TR939M6CE

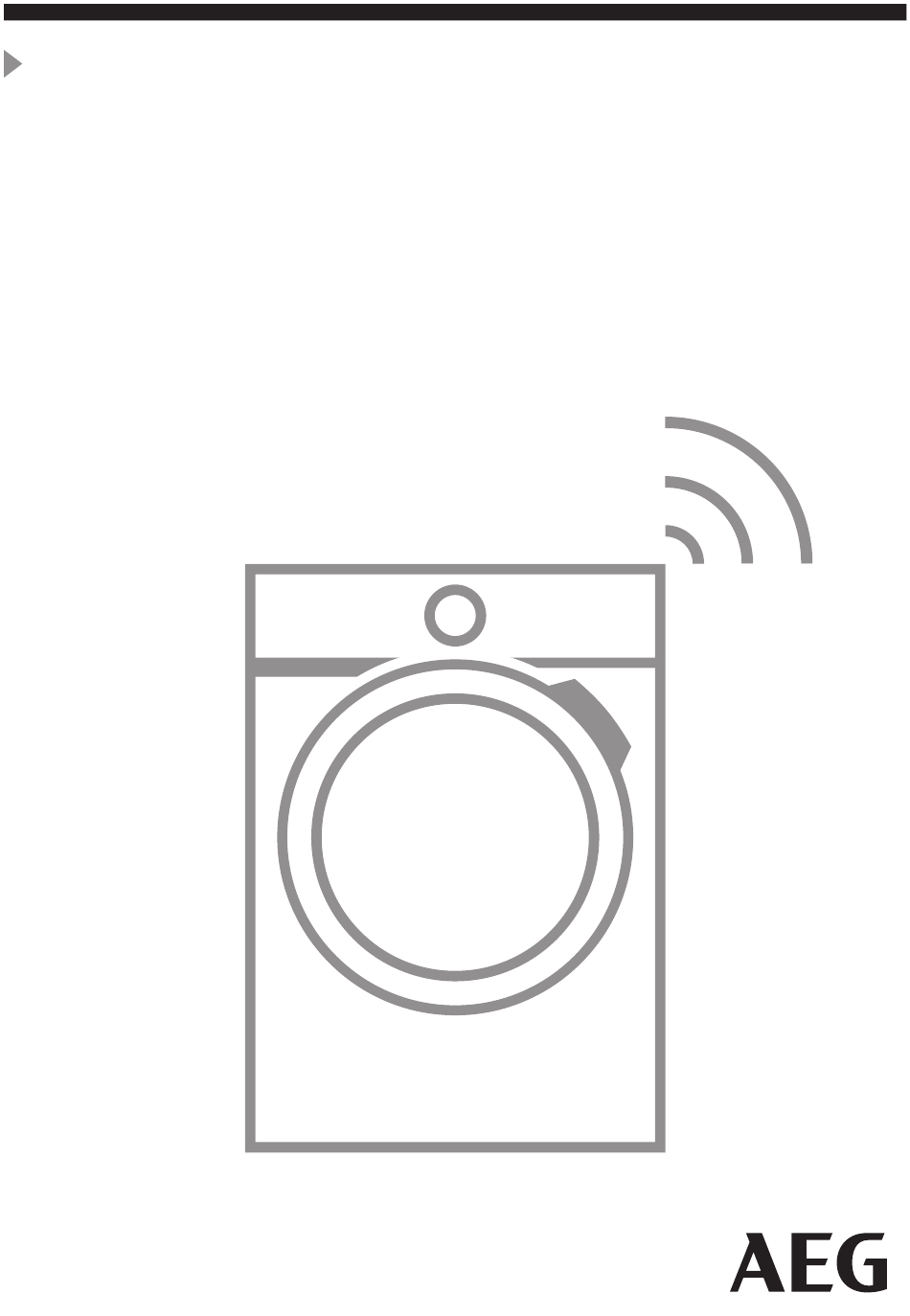

- Page 1 TR939M6CE User Manual Tumble Dryer USER MANUAL...
-
Page 2: Table Of Contents
8. BEFORE FIRST USE..................20 9. DAILY USE......................21 10. HINTS AND TIPS....................24 11. CARE AND CLEANING..................26 12. TROUBLESHOOTING..................29 13. TECHNICAL DATA................... 32 14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017....................... 33 15. ENVIRONMENTAL CONCERNS..............35 My AEG Care app... -
Page 3: Customer Care And Service
ENGLISH FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. -
Page 4: Children And Vulnerable People Safety
1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability. This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience... - Page 5 ENGLISH houses and other similar accommodation where such use does not exceed (average) domestic usage levels. Do not change the specification of this appliance. • If the tumble dryer is put on top of a washing machine, • use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory.
- Page 6 WARNING: In the appliance enclosure or in the built - • in structure, keep ventilation opening clear of obstruction. WARNING: Do not damage the refrigerant circuit. • If the mains power supply cable is damaged, it must • be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
-
Page 7: Safety Instructions
ENGLISH 2. SAFETY INSTRUCTIONS 2.1 Installation to a grounding connection in the building. • Make sure that the parameters on the rating plate are compatible with the Warning: Risk of fire / Flammable electrical ratings of the mains power materials. supply. -
Page 8: Internal Lighting
2.4 Internal lighting tight. The damage of the system can cause a leakage. WARNING! 2.7 Service Risk of injury. • To repair the appliance contact the • Visible LED radiation, do not look Authorised Service Centre. directly into the beam. -
Page 9: Product Description
ENGLISH 3. PRODUCT DESCRIPTION Water container Airflow slots Control panel Condenser lid Internal lighting Condenser cover Appliance door Adjustable feet Filter Rating plate and QR Code For ease of loading laundry or ease of installation the door is reversible (see the separate leaflet). -
Page 10: Control Panel
4. CONTROL PANEL Programmes Start/Pause button Programme dial SyncDry button Favourite programmes Options Display auto-off On/Off button with Finish In button function Remote Start button 4.1 Display Symbol on the display Symbol description cycle time indication... -
Page 11: Wi-Fi - Connectivity Setup
ENGLISH Symbol on the display Symbol description maximum load finish in selection (up to 24h) wireless connection remote control APP notification to check + Anti Crease option on buzzer off child lock on laundry dryness: iron dry, cupboard dry, extra dry Time Dry option on drain the water container indicator:... -
Page 12: Wireless Connection Configuration
• Scan the QR code with the built-in around 3 minutes. camera app to download the My AEG 4. Configure the My AEG Care app on Care application from the App store your smart device and follow the on on your smart device and follow the screen instructions to connect the required steps. -
Page 13: Remote Start
ENGLISH Remote Start activation sound. The symbol: appears on the display. Once the My AEG Care app is installed and the wireless connection is complete, Appliance stores last you can activate the Remote Start: connection configuration. To use wireless features of the 1. -
Page 14: Programmes
My AEG Care and you will be able to choose a drying programme that suits your needs most. Programme names are subject to change depending on market requirements without notice. The My AEG Care app will give you a complete description of each programme. Sportswear Pillow Silk... - Page 15 ENGLISH Programmes Load Properties / Fabric mark White and coloured cotton fabrics Cottons 9,0 kg programme. Default setting is for ready to store dryness level. Blended garments containing mostly Synthetics 4,0 kg synthetic fibres like polyester, polya‐ mide, etc. Recommended for generic delicate Delicates 2,0 kg fabrics such as viscose, rayon, acryl‐...
- Page 16 Programmes Load Properties / Fabric mark Maintains the functionality of outdoor fabrics made of technical textile and restores water repellency on water‐ 2,0 kg Outdoor proof jackets and shell jackets with removable linings (suitable for drying in tumble dryer).
-
Page 17: Consumption Data
ENGLISH Options Dry‐ Time + Anti Programmes Silent ness Level Crease Synthetics Delicates Wool Quick 3kg Bedlinen XL Outdoor Hygiene Duvet Down Jackets 1) Aside from the programme, you can set one or more options at the same time. 2) Set by default 3) See chapter OPTIONS: Time Dry on Wool programme Consumption data Energy... -
Page 18: Options
Energy consump‐ Program Spun at / residual humidity Drying time tion 1200 rpm / 40% 68 min 0,53 kWh cupboardDry 800 rpm / 50% 76 min 0,62 kWh 1) For partial loads, the cycle time is shorter and appliance uses less energy. -
Page 19: Favourite Programmes
Once the favourite programmes have Wi-Fi to the AEG Cloud, as well as to been set, you can select one of them via your tumble dryer. App or by turning the programme dial to... -
Page 20: Before First Use
5. Touch Start/Pause button to same home network and begin drying process. paired with the My AEG Care application. To activate the function: When SyncDry programme is set, user is still allowed to 1. Once the wash cycle has come to an... -
Page 21: Daily Use
ENGLISH Working pump and transferring condensation to the tank. Brrrr Rotating drum. Working fans. 9. DAILY USE 9.1 Preparing the laundry • Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you Very often the clothes after start a programme. -
Page 22: Loading The Laundry
• Dry only the laundry that is suitable • Shake the large clothes, fabrics for tumble drying. Refer to the fabric before placing in the tumble dryer. It is label on the items. to avoid moist places inside the fabric •... -
Page 23: Setting A Programme
ENGLISH 9.6 Setting a programme You can activate the child lock option: • before you touch the Start/Pause button - the appliance cannot start • after you touch the Start/Pause button - programs and option selection is unavailable. Child lock option activation: Use the programme dial to set the programme. -
Page 24: Program Change
9.12 Programme end After setting a drying programme, the icon lights up on the display Clean the filter and drain the if the programme supports it. water container after each Touching the Start/Pause button, the drying cycle. (See chapter ProSense starts the laundry load CARE AND CLEANING.) -
Page 25: Adjustment Of Default Dryness Level
ENGLISH • Do not exceed the load sizes which + Anti Crease buttons at the same are specified in the programmes time for approximately 2 seconds. chapter. In case of Wi-Fi network • Clean the filter after each drying connected machines a cycle. -
Page 26: Factory Defaults
(does not include pauses or delayed start working modes will be reset. It will also time). remove WiFi network credentials from the appliance memory and reset To visualise this value, proceed as personalized program settings. follows: To activate this option follow steps 1. -
Page 27: Emptying The Water Container
ENGLISH 3. Gather lint with hand from both 11.2 Emptying the water internal parts of the filter. container Empty the condensed water container after each drying cycle. If the condensed water container is full, the programme stops automatically. The Water container symbol comes on the display and you must empty the water container. -
Page 28: Cleaning The Condenser
11.3 Cleaning the condenser Heat exchanger flashes If the symbol on the display, inspect the condenser and its compartment. If it is dirty, clean it. Do the check not less than once a 6 months. WARNING! Do not touch the metal surface with bare hands. -
Page 29: Troubleshooting
ENGLISH 11.6 Cleaning the airflow CAUTION! slots Do not use furniture cleaning agents or cleaning agents Use a vacuum cleaner to remove fluff which can cause corrosion. from the airflow slots. 12. TROUBLESHOOTING WARNING! Refer to Safety chapters. 12.1 Error Codes The appliance does not start or it stops during operation. - Page 30 12.2 Troubleshooting Problem Possible cause Remedy The tumble dryer is not connected Connect it to the mains socket. to the mains supply. Check the fuse in the fuse box (do‐ mestic installation). The door is open. Close the door.
- Page 31 ENGLISH Problem Possible cause Remedy There is no Defective drum lamp. Contact the service centre to re‐ drum light place the drum lamp. Unexpected du‐ The drying duration is calculated This is automated - the appliance ration time ap‐ according to load size and damp‐ is working correctly.
-
Page 32: Technical Data
Move the router closer to the appli‐ ance through ance. Equip your home network the My AEG with wireless range extender. Care application Do not use at the same time micro‐ does not work wave oven and remote control. -
Page 33: Product Information Sheet In Reference To E.u. Regulation 1369/2017
The information given in the chart above is compliant with the EU Commission regulation 392/2012 implementing directive 2009/125/EC. 14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Model TR939M6CE PNC916099389 Rated capacity in kg... - Page 34 Air vented or condenser tumble dryer Condenser Energy efficiency class A+++ Energy consumption in kWh per year, based on 160 drying cy‐ 194,10 cles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
-
Page 35: Environmental Concerns
ENGLISH 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol Recycle materials with the symbol with the household waste. Return the Put the packaging in relevant containers product to your local recycling facility or to recycle it. Help protect the contact your municipal office. environment and human health by recycling waste of electrical and electronic appliances. - Page 36 My AEG Care app The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project. To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIUS)
