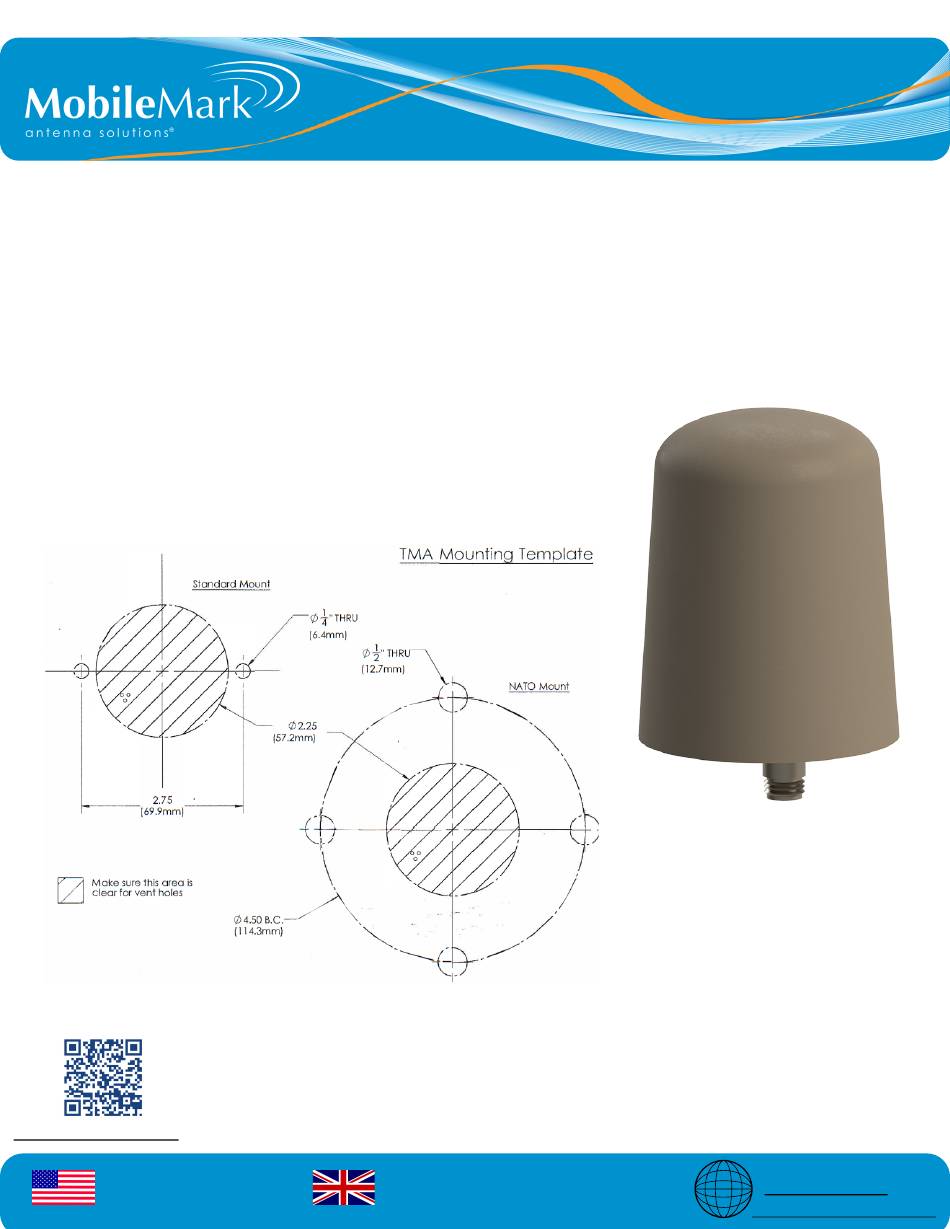

HIGH PERFORMANCE TACTICAL MESH ANTENNA NON-AMPLIFIED
Products covered:
TMA-14-2VT 1400-1500MHz (2dBi) Linear-Vertical.
TMA-24-2CT 2400-2500MHz (2dBi) Right Hand circular.
TMA-44-5VT 4400-4800MHz (5dBi) Linear-Vertical.
TMA-49-5VT 4400-5000MHz (5dBi) Linear-Vertical.
TMA-5X-4VT 5400-5850MHz (4dBi) Linear-Vertical.
TMA-5XS-7VT 5400-5850 (7dBi) Linear-Vertical.
TMA-WB1 420-6000MHz Wide Band.
Terms and Conditions
Toll Free: 1-800-648-2800
Phone: 1-847-671-6690
Fax: 1-847-250-5120
Email: info@mobilemark.com
TMA Series Installation Instruction
Phone: +44 1543 459555
Fax: +44 1543 459545
Email: enquiries@mobilemarkeurope.co.uk
Mobilemark.com
950-106-9-001-0924/DR: SM/APP: XX/REV. B
Advertisement
Related Manuals for Mobile Mark TMA Series
Summary of Contents for Mobile Mark TMA Series
- Page 1 TMA Series Installation Instruction HIGH PERFORMANCE TACTICAL MESH ANTENNA NON-AMPLIFIED Products covered: TMA-14-2VT 1400-1500MHz (2dBi) Linear-Vertical. TMA-24-2CT 2400-2500MHz (2dBi) Right Hand circular. TMA-44-5VT 4400-4800MHz (5dBi) Linear-Vertical. TMA-49-5VT 4400-5000MHz (5dBi) Linear-Vertical. TMA-5X-4VT 5400-5850MHz (4dBi) Linear-Vertical. TMA-5XS-7VT 5400-5850 (7dBi) Linear-Vertical. TMA-WB1 420-6000MHz Wide Band.
-
Page 2: Document Conventions
DOCUMENT CONVENTIONS NOTE: Tips, hints, or unique requirements that you should take note of. CAUTION: Care is required. Disregarding a caution can Result in Data Loss or equipment malfunction. WARNING: Indicates a condition or procedure that could result in personal injury or equipment damage. QUICK INSTALLATION GUIDE Product ships with: HP-TMA... - Page 3 ANTENNA DEPLOYMENT The type of radiation pattern produced by the HP-TMA varies for the different models. Figure 2 shows where the HP-TMA should be mounted in the desired coverage patterns. NOTE: The Antenna Patterns in Figure 2 are not representative of actual shape or scale of the HP-TMA’s signal radiation patterns.
- Page 4 MOUNTING THE HP-TMA Nato Mount (HDW-TMA-45NATO) Figure 4 The Tactical Mesh Antenna (HP-TMA) can be mounted directly to a vehicle using a standard 4.5” (11.43cm) NATO mounted hole pattern. Use the two 1/4-20 by ½” (1.27cm) screws to connect the NATO mounting plate to the (HP-TMA).
- Page 5 Figure 6 WARNING: The bottom of HP-TMA has three small pressure equalizing vent Holes, Figure 6. These vents must not be obstructed or penetrated COAX CABLE INFORMATION Cable Requirements The TMA requires a Coax cable with an Impedance of 50 Ohm and N-Male Connectors. Check with your radio manufactures’s documentation for the coax cable and connector requirements for your radio.
