Mission Critical Wi-Fi
HIGH PERFORMANCE
TACTICAL MESH ANTENNA (HP-TMA)
QUICK INSTALL GUIDE
Congratulations on your purchase of the MMI High Performance Tactical Mesh Antenna! You are just minutes away from
enjoying the benefits of a farther reaching, clearer wireless signal.
Products covered by this Guide
TMA-24A-302CT - 2.4GHz HP-TMA (33dBm), R H CP Omnidirectional
TMA-5XA-302CT - 5GHz HP-TMA (33dBm), VP Omnidirectional
TMA-5XA-304VT - 5GHz HP-TMA (35dBm), VP Omnidirectional
TMA-5XSA-307VT - 5GHz HP-TMA (37dBm), VP 180 Degree Sector
TMA-44A-305VT - 5GHz HP-TMA (35dBm), VP Omnidirectional
1

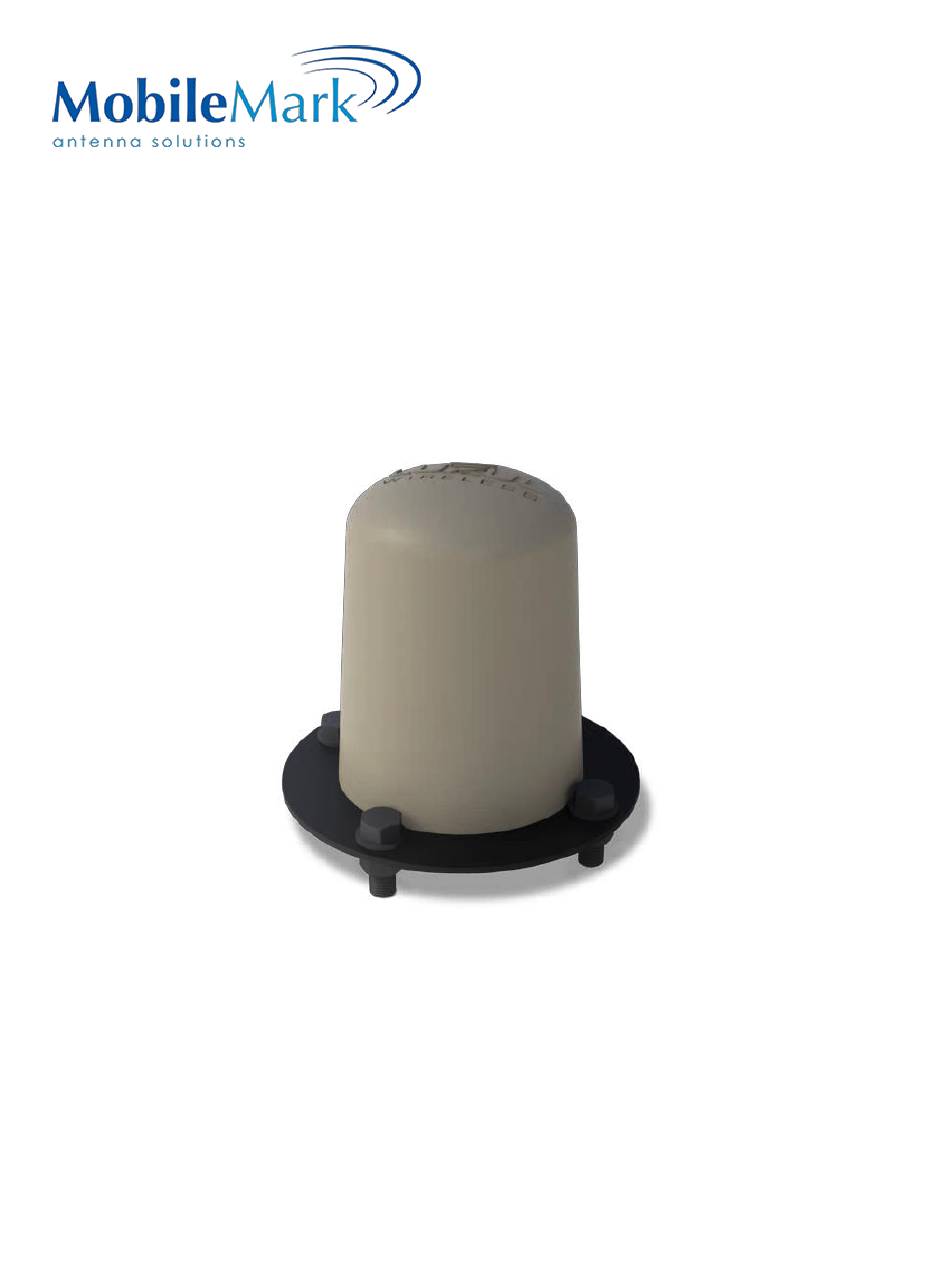

Shown with optional NATO mount adapter
Advertisement
Table of Contents
Related Manuals for Mobile Mark TMA-24A-302CT
Summary of Contents for Mobile Mark TMA-24A-302CT
- Page 1 Congratulations on your purchase of the MMI High Performance Tactical Mesh Antenna! You are just minutes away from enjoying the benefits of a farther reaching, clearer wireless signal. Products covered by this Guide TMA-24A-302CT - 2.4GHz HP-TMA (33dBm), R H CP Omnidirectional TMA-5XA-302CT - 5GHz HP-TMA (33dBm), VP Omnidirectional TMA-5XA-304VT - 5GHz HP-TMA (35dBm), VP Omnidirectional...
-
Page 2: Document Conventions
WARRANTY Mobile Mark, Inc. (Seller) warrants to Buyer that the products for a period of two years from the date of shipment will be free from defects of material and workmanship, and will be in accordance with specifications referred to herein. Seller’s sole obligation under these warranties will be limited to either, at Seller’s option and expense, repairing, or furnishing a replacement F.O.B. -
Page 3: Quick Install Guide
QUICK INSTALL GUIDE Product ships with: • HP-TMA • Quick Install Guide • Smart Power Over Coax (SPOC) Injector • Power cable for SPOC Additional Items required: • 802.11 a or b/g radio • N-Male to Radio Antenna Port, Coax cable (See your radio manufacturer’s set-up guide for more information on the required connector for your Radio) to connect your radio to the SPOC •... - Page 4 Antenna Deployment The type of radiation pattern produced by the HP-TMA varies for the different models. Figure 2 shows where the HP-TMA should be mounted in the desired coverage area. OMNI SECTOR Mounting Direction for the HP-TMA Sector Antenna The HP-TMA Sector, TMA-5XSA-308T, is a directional antenna. You will need to be aware of the direction it is pointing when deployed.
- Page 5 QUICK INSTALL GUIDE Mounting the HP-TMA (Optional) NATO Mount (HDW-TMA-45NATO) Figure 4 The Tactical Mesh Antenna (HP-TMA) can be mounted directly to a vehicle using a standard 4.5” NATO mount hole pattern. 1. Use the two 1/4-20 by 1/2” screws to connect the NATO mounting plate to the HP-TMA 2.
- Page 6 Coax CABLE Information Cable Requirements The HP-TMA and SPOC injector requires a Coax cable with an Impedance of 50 Ohm and N-Male Connectors. Check with your radio manufacturer’s documentation for the coax cable and connector requirements for your radio. Connecting Coax CABLE 1.
- Page 7 QUICK INSTALL GUIDE SMART POC The SMART (Serially Manageable And Reporting TMA) SPOC Injector is intended to work with the various HP-TMA variations to allow for ease of installation and a simple method of determining if the system is operational. Powering the SMART POC 1.
- Page 8 Once the SPOC injector has been connected to the power source and all other cables are connected, power can now be applied. Other Power Connection Options • PWR-120V - 120V Power Supply for SPOC Injector • PWR-POE - 2’ cable with M12 to RJ45 coupler for connecting SPOC injector to POE source (Additional RJ45 cable and non-802.3af POE injector required)
- Page 9 QUICK INSTALL GUIDE SMART SPOC LED Indicator The SMART SPOC injector has a single multi color LED indicator, Figure 9, for determining operational status of the HP-TMA. Power Up LED Functionality • Red/Amber, flashing: During initial power up you will see Red/Amber flashing as the system confirms the presence of the HP- TMA.
- Page 10 Error Code LED Functionality • Red/Amber, flashing constantly: SPOC is powered but has no HP-TMA attached or is not communicating with the HP-TMA. –– Probable Cause: −−HP-TMA has been removed or damaged. −−Disconnected or bad coax. –– Corrective Action: −−Check for damage to the HP-TMA. −−Check coax for damage or loose connection.
- Page 11 QUICK INSTALL GUIDE Optimizing your Radio The HP-TMA operates best when the input power to the HP-TMA, from the radio, is between +10dBm to +20dBm. Radio power may need to be adjusted for optimal performance. Be sure to factor the dB loss for the SPOC and coax. The SPOC has approximately 1dB of loss.
-
Page 12: Troubleshooting
TROUBLESHOOTING If you make any changes to the system or notice any abnormal behavior we suggest you power cycle the radio and equipment. • Make sure the cables are properly connected and that there is power to the TMA and your radio. •...
