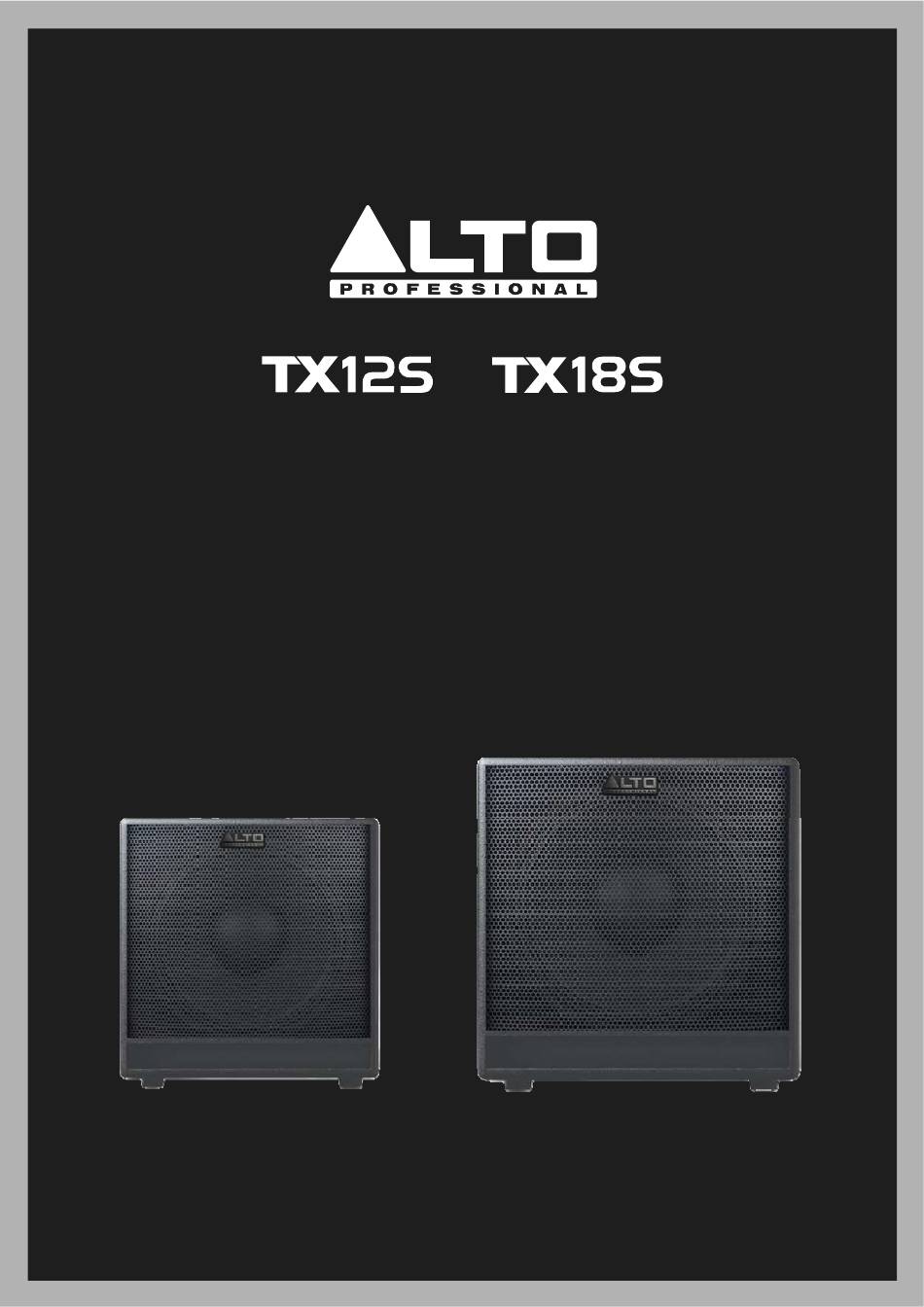

- Page 1 User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS (1.0) INTRODUCTION .................... 3 (1.1) Box Contents ............................3 (1.2) Support ..............................3 (2.0) IMPORTANT SAFETY PRECAUTIONS ............4 (2.1) Loudspeaker Mounting ........................4 (2.2) (Optional) Attaching Casters (only on TX18S) ................ 4 (2.3) Sound Level ............................4 (3.0) SETUP ...................... -
Page 3: (1.0) Introduction
(1.0) INTRODUCTION Thank you for purchasing the TX Sub. This guide is designed for you to get the most out of the TX Sub. We recommend you read through this guide before using the speaker. (1.1) Box Contents TX Sub Power Cable (6 ft. -
Page 4: (2.0) Important Safety Precautions
(2.0) IMPORTANT SAFETY PRECAUTIONS Please note: Alto Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Alto Professional and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. -
Page 5: (3.0) Setup
(3.0) SETUP (3.1) System Power Sequencing Proper power sequencing will help prevent audible thumps, clicks, and other noises in the system. Note: Read the Safety & Warranty Manual before using the TX Sub. 1. Turn down the output level controls on your audio sources and processors (CD players, mixers, etc.) and power them on. -
Page 6: (3.2) Connection Diagram
(3.2) Connection Diagram Items not listed under the (1.1) Box Contents are sold separately. Example A: 1 Subwoofer & 2 Loudspeakers Connect the left and right outputs of your mixer to the inputs of your subwoofer, and then connect the Thru Outputs of the subwoofer to the input of each loudspeaker. - Page 7 Example B: 2 Subwoofers & 2 Loudspeakers Connect the left and right outputs of your mixer to an input on each speaker, and then connect the Mix Output of each speaker to an input on each subwoofer. Loudspeaker Loudspeaker Subwoofer Subwoofer Power Power...
-
Page 8: (4.0) Features
(4.0) FEATURES (4.1) Rear Panel H I J A. Power Input Connect the included power cable to this input and connect the other end of the cable to a power source. Make sure the Power Switch is set to OFF when plugging and unplugging the cable. B. - Page 9 H I J H. LPF Press this button to select the center frequency of the Low-Pass Filter: 120 Hz, 100 Hz, or 80 Hz. Voicing Mode Press this button to select the front-end EQ applied to the signal: MUSIC (enhanced low-frequency bump). •...
-
Page 10: (5.0) Appendix
(5.0) APPENDIX (5.1) Technical Specifications TX12S Line Inputs CH1/CH2 Connector XLR/TRS combo input connector (line is TRS only) Dynamic Range 108 dB (A-weighted) THD +N (%, -1 dBFS input) <0.01% Maximum Input Level +16 dBu Gain Range 24 dB Frequency Response 20 Hz –... - Page 11 TX18S Line Inputs CH1/CH2 Connector XLR/TRS combo input connector (line is TRS only) Dynamic Range 108 dB (A-weighted) THD +N (%, -1 dBFS input) <0.01% Maximum Input Level +16 dBu Gain Range 24 dB Frequency Response 20 Hz – 20 kHz (+/- 0.1 dB) Input Impedance CH1/CH2 Thru Connector...
-
Page 12: (5.2) Trademarks & Licenses
(5.2) Trademarks & Licenses Alto Professional is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. All other product names, company names, trademarks, or trade names are those of their respective owners. - Page 13 altoprofessional.com Manual Version 1.0...
