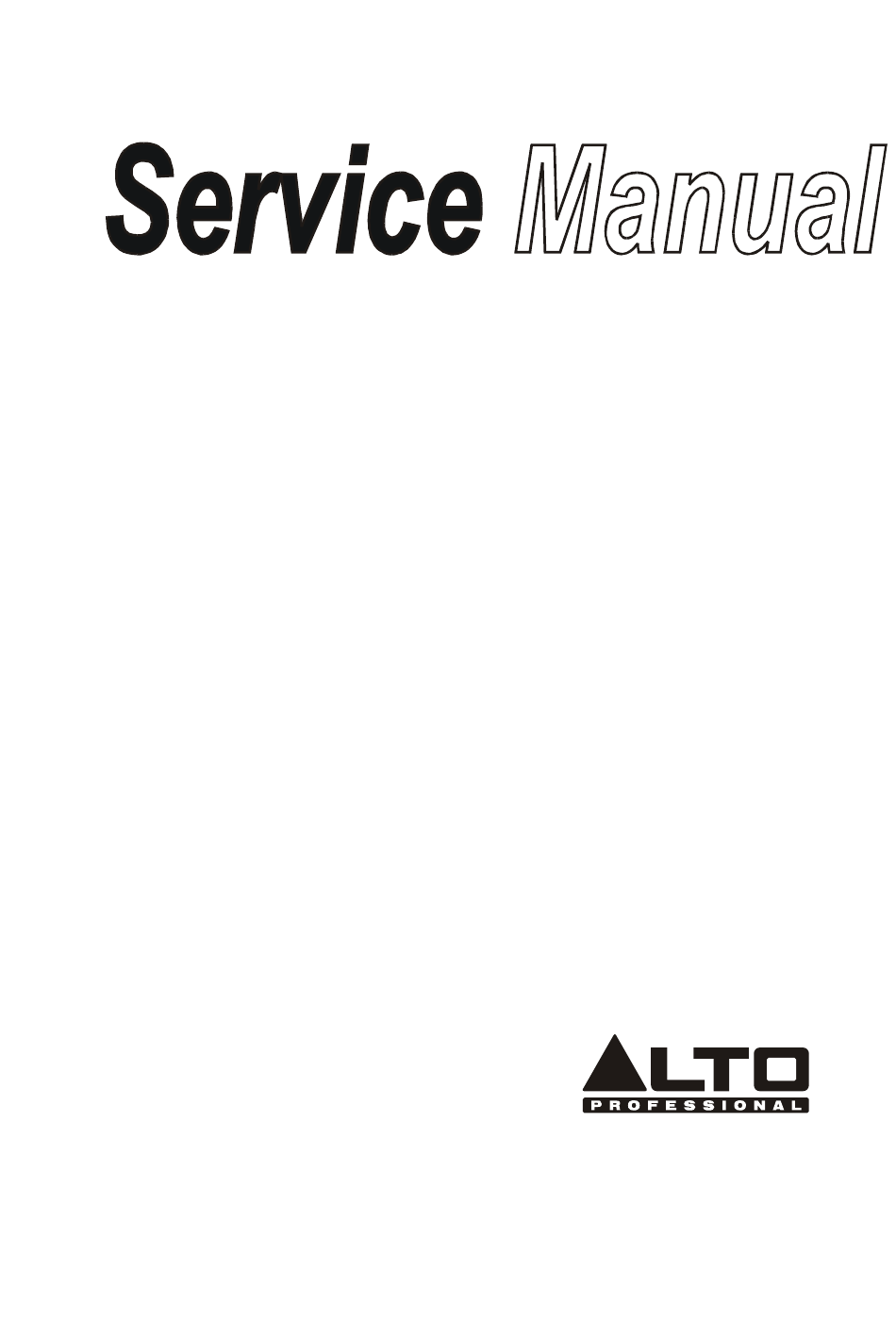

MODEL: TS212S/TS215S/TS218S
MODEL: TX8/10/12/15
Version 1.0 revised on Jun, 2016
Version 1.vised on MAY 2014

Advertisement

loading
Need help?

Need help?

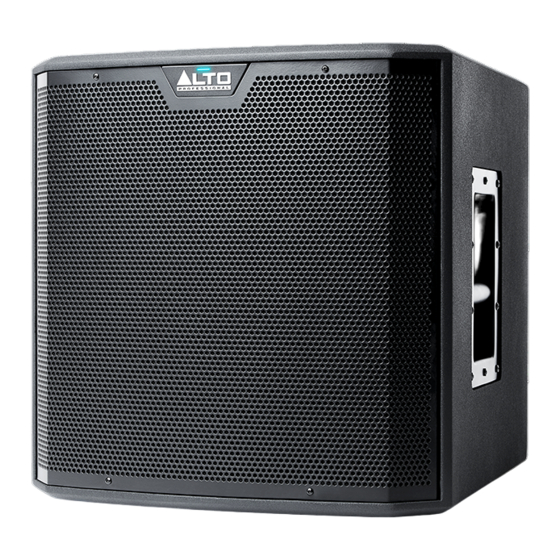

Do you have a question about the TS212S and is the answer not in the manual?

Questions and answers

Summary of Contents for Alto Professional TS212S

  • Page 1 MODEL: TS212S/TS215S/TS218S MODEL: TX8/10/12/15 Version 1.0 revised on Jun, 2016 Version 1.vised on MAY 2014...
  • Page 2 CONTENTS 1. BLOCK DIAGRAM……………………………………………………………..1 2. SCHEMATIC DIAGRA………………………………………………………….2 3. WIRING DIAGRAM…………………………………………………………….3 4. EXPLODED VIEW & MECHANICAL PARTS LIST………………………….6 5. BOM……………………………………………………………………………..11...
  • Page 3 HIGH PASS INPUT 2 LINE MIX OUT 2 EXTENDED LF HIGH PASS AMP MODULE DM 300W+300W POWER FOR PRE(+/-12V) POLARITY REVERSE OUTPUT FULL-RANGE EXTENDED LF POWER LED +15V POWER(+/-12V) Titel TS212S/TS215S/TS218S Size Model No: Revision Sheet Date: Drawn By: File: fanweizeng...
  • Page 4 ˜ ˜ ˜ ˜ TS212 SUB PRE SCH(1/1) Ł Ł Ł Ł C129 8.06K 6.98K 100nF 4580M ˘ ˘ ˘ ˘ Ł Ł Ł Ł 4580M SW1D 100nF 100nF 100nF 100nF SW PS-42E85L R137 46.4K 40.2K WGND GND GND ¯ ¯ ¯ ¯ Ł...
  • Page 5 ˜ ˜ ˜ ˜ TS215 SUB PRE SCH(1/1) Ł Ł Ł Ł C129 8.06K 6.98K 100nF 4580M ˘ ˘ ˘ ˘ Ł Ł Ł Ł 4580M SW1D 100nF 100nF 100nF 100nF SW PS-42E85L R137 46.4K 40.2K WGND GND GND ¯ ¯ ¯ ¯ Ł...
  • Page 6 ˜ ˜ ˜ ˜ TS218 SUB PRE SCH(1/1) Ł Ł Ł Ł C129 8.06K 6.98K 100nF 4580M ˘ ˘ ˘ ˘ Ł Ł Ł Ł 4580M SW1D 100nF 100nF 100nF 100nF SW PS-42E85L R137 46.4K 40.2K WGND GND GND ¯ ¯ ¯ ¯ Ł...
  • Page 7 DM 300W+300W MAIN(1/1) +12V 1UF/50V 1W15V BEAD 0.001UF 220uF/200V AN7812 8A GBU-8K 1000UF/16V 222/250V 100K 1A/200V DC-DC RB160M-30 470V 560PF 470U/25V TC-3 0.047UF 222/250V 2.7mH 1.0uF/25V 1.0uF/25V 103/1KV 100K 1002 5401 0.33uF 100K 4148 1A/200V AN7912 2.7mH 1000UF/16V NTC-5 RB160M-30 470U/25V 0.33uF 1A/200V...
  • Page 8 TS212S/TS215S/TS218S Wiring Diagram...
  • Page 10: Specification

    TS212S PART LISTS S/N Part No Description Specification Remark Material MG00351 Screw-RS-steel plate M4*16 HK18377 K-faceplate TS212S_ ALTO_220-240V_EU_CH_(NUMARK) ND00665 EV Foam-RS-one side with glue 950*15*2.0mm black_V1.0 NC05053 Cabinet TS212S_V1.0 ND00633 EV Foam-RS-one side with glue 1.0t*1500*15mm black_V1.0 HK18344 K-woofer 12" 600W 8Ω(TS212S)
  • Page 12 TS215S PARTS LIST S/N Part No Description Specification Remark Material MG00351 Screw-RS-steel plate M4*16 ND00665 EV Foam-RS-one side with glue 950*15*2.0mm black_V1.0 NC05054 TS215S_V1.0 Cabinet ND00633 EV Foam-RS-one side with glue 1.0t*1500*15mm black_V1.0 ND00398 EV Foam-RS-one side with glue SR500A-SUB 1205.5*15*2 black_V1.0 HK18345 K-woofer 15吋...
  • Page 14 TS218S PARTS LIST S/N Part No Description SpecifIcation Material Remark MG00351 Screw-RS-steel plate M4*16 HK18379 K-faceplate TS218S_ ALTO_220-240V_EU_CH_(NUMARK) Cabinet NC05055 TS218S_V1.0 HK18346 K-woofer 18吋 600W 8Ω(TS218S) MG00350 Screw-RS M5*30(T headφ10) grille MG01030 Screw-RS-flat-plate M3*20 plastic logo NI07836 30.35*11.03*90.22 light pipe-semi-transparent PC NI07597 TS212 16.69*10.32*8.15_V1.1 HK17710...
  • Page 15 PU-010-4 170KG/Pail | ├0030 AE00693 Paint MTS-2209 20KG/Pail | ├0031 AE00694 Paint LTS-6070B-1 10KG/Pail | └0032 ND01550 Absorb sound sponge-RS TS212S 800*350*30t 500g/㎡UL_V1.0 ├0002 HK18344 speaker 12inch 600W 8Ω(TS212S) | ├0001 NH00243 cushion-RS φ315*284.4*8 EVA+ 8_V1.1 | ├0002 NH00715 caushion-RS φ152*138*20_V1.0...
  • Page 16 ├0014 HA04308 header wiring 2P-2P 700mm UL1007 26AWG red/white connect the LED of logo ├0015 NA00885 PE bag-RS 0.03t*1200*1050mm 12 PGPP1036ZA/J1_P_C pack the speaker ├0016 NA00858 PE bag-RS 0.04t*240*160mm_V1.0 pack the user manual and guarantee ├0017 NA01717 sponge barrier TS212S_V1.0 ├0018 NE27061 label...
  • Page 17 R1,R2,R3,R4,R5,R8,R9,R3 6,R37,R40,R41,R42,R43,R 102,R103,R104,R105,R106 | | | | ├0025 RD00214 SMD precise resistor 1/10W 10.0KΩ ±1% 0603 ,R10,R11,R75,R76,R16,R1 7,R19,R130,R57,R59,R60, R61,R62,R63,R64,R65,R66 ,R67,R86,R87,R88,R89 | | | | ├0026 RD00215 SMD precise resistor 1/10W 13.0KΩ ±1% 0603 R121,R137,R138 | | | | ├0027 RD00216 SMD precise resistor 1/10W 13.3KΩ...
  • Page 18 | | ├0020 NC01179 insulator spacer-RS 0.13t*40mm*55mm(HI-FLOW-625) stick to Q1, Q5 | | ├0021 CB00335 electrolytic capacitor-RS 1000uF/16Vφ8*20mm C89,C90 | | ├0022 RA01063 metal-oxide-film resistor 3W 0.1Ω ±2% P type | | ├0023 RH00033 thermistor-RS-CT 5Ω B57235S-0509M000/(EPCOS) | | ├0024 SD00380 integrated circuit-RS NJM7812FA(TO220F)/(JRC)
  • Page 19 EV foam 0.5t*650*3mm_V1.0 stick to the sealed box | ├0023 NI02527 knob-RS φ14*13mm_V1.3 | ├0024 MA11188 panel TS212S ALTO CHINA_V1.1 | | └0001 MA11187 panel TS 212 SUB 2t*235*268 | | | ├0001 AE00055 solvent solvent | | | ├0002...
  • Page 20 PU-010-4 170KG/Pail | ├0030 AE00693 Paint MTS-2209 20KG/Pail | ├0031 AE00694 Paint LTS-6070B-1 10KG/Pail | └0032 ND01550 Absorb sound sponge-RS TS212S 800*350*30t 500g/㎡UL_V1.0 ├0002 HK18344 speaker 12inch 600W 8Ω(TS212S) | ├0001 NH00243 cushion-RS φ315*284.4*8 EVA+ 8_V1.1 | ├0002 NH00715 caushion-RS φ152*138*20_V1.0...
  • Page 21 | ├0001 NI00015 membrane 0.04*1M | └0002 NH00012 bond paper 0.04*1M ├0020 NF03534 assurance card-RS ALTO PROFESSIONAL_V2.0 ├0021 HK18377 Faceplate TS212S_ ALTO_220-240V_CHINA_(NUMARK) fixed to the back of the cabinet | ├0001 HA01271 signle terminal wiring 60 (PC250,PC187) SW TO AC Jack | ├0002 HA01287 wire-RS...
  • Page 22 | | | | ├0036 RD00330 SMD precise resistor 1/10W 39.0KΩ ±1% 0603 R129 | | | | ├0037 RD00334 SMD precise resistor 1/10W 11.0KΩ ±1% 0603 R120 R22,R23,R24,R25,R26,R28 | | | | ├0038 RD00339 SMD precise resistor 1/10W 47.0KΩ ±1% 0603 ,R30,R31,R33,R34,R35 | | | | ├0039 RD00344 SMD precise resistor 1/10W...
  • Page 23 | | ├0040 CG00130 X2 capacitor 0.47uF/305V 20%(C42Q2474M6HC000)(FARA) | | ├0041 HA01919 jump PR1,R110 | | | └0001 HA02249 wire φ0.6_鍍錫 | | ├0042 MI06323 heat-shassis TS212 2t*40*100*206_V1.2 | | | ├0001 ME00221 iron pillar M3*8*0.5PH_V1.1 | | | └0002 MJ00055 AL plate-RS 2*2000*1000 10.88kg...
  • Page 24 EV foam 0.5t*650*3mm_V1.0 pasted on the sealed box | ├0022 NI02527 knob-RS φ14*13mm_V1.3 | ├0023 MA11188 panel TS212S ALTO CHINA_V1.1 | | └0001 MA11187 panel TS 212 SUB 2t*235*268 | | | ├0001 AE00055 solvent solvent | | | ├0002...
  • Page 25 Rank Part No Description Specification Insert Location Remark PC03017 PC03017 SPEAKER TS215S_ALTO_110V-120V_CHINA_(NUMARK) ├0001 NC05054 box TS215S_V1.1 | ├0001 NI02426 foot cushion φ37*15.5mm PGHA1022ZA/J1_P_A | ├0002 MI02042 handle-RS 220*163.5*63mm _V1.0 | ├0003 ME00082 nut-RS M5*0.8PH*10.6_V1.2 Lock the woofer | ├0004 ME00083 nut M6*1.0PH*11.6_V1.2 Lock the pole mount | ├0005...
  • Page 26 ├0018 NE27062 label TS215S_V1.0 Inside and outside*1 , carton *1, user manual*1 ├0019 NE27070 label TS215S_V1.0 speaker*1 | ├0001 NI00015 membrane 0.04*1M | └0002 NH00012 bond paper 0.04*1M ├0020 NF03534 assurance card-RS ALTO PROFESSIONAL_V2.0 ├0021 HK18375 Faceplate TS215S_ ALTO_110-120V_CHINA_(NUMARK) fixed to the back of the cabinet | ├0001 HA01271 signle terminal wiring 60 (PC250,PC187)
  • Page 27 | | | | ├ RD00282 SMD precise resistor 1/10W 1.00KΩ ±1% 0603 R118,R133 0032 | | | | ├ RD00289 SMD precise resistor 1/10W 8.06KΩ ±1% 0603 R12,R13 0033 | | | | ├ RD00290 SMD precise resistor 1/10W 47.5KΩ...
  • Page 28 | | ├0036 CN00359 inductance 5.0mH φ0.7*30T L3,L4 | | ├0037 CG00126 X2 capacitor-RS 0.33uF/275V ±10%(C42P2334K6SC000)(FARA) C9,C12 | | ├0038 TC00585 Transistor PT-DM 350W+175W(ER35)_230V | | ├0039 NI07555 insulator TT12 0.5t*95*93_V1.0 | | | └0001 NI04630 film-RS-CT 450*605*0.5mm 0.184kg_V1.0 | | ├0040 CG00130 X2 capacitor 0.47uF/305V 20%(C42Q2474M6HC000)(FARA) | | ├0041...
  • Page 29 | | | | ├ L6,L7,L10,L11,L14,L15,L CO00168 SMD inductance-RS-ACT 1000Ω±25%(BLM18RK102SN1D) 0062 16,L17,L13 | | | | ├ CI00366 SMD ceramic capacitor 0805 220PF/250V COG ±5% C100,C101,C102,C103 0063 | | | | ├ CI00387 SMD ceramic capacitor-RS 0.0022uF/250V X7R ±10% C54,C55 0064 | | | | ├...
  • Page 30 Rank Part No Description Specification Insert Location Remark PC03018 PC03018 SPEAKER TS215S_ALTO_230V_CHINA_(NUMARK) ├0001 NC05054 TS215S_V1.1 | ├0001 NI02426 foot cushion φ37*15.5mm PGHA1022ZA/J1_P_A | ├0002 MI02042 handle-RS 220*163.5*63mm _V1.0 | ├0003 ME00082 nut-RS M5*0.8PH*10.6_V1.2 Lock the woofer | ├0004 ME00083 nut M6*1.0PH*11.6_V1.2 Lock the pole mount | ├0005...
  • Page 31 ├0015 NA00858 PE bag-RS 0.04t*240*160mm_V1.0 pack the user manual and guarantee ├0016 NA01718 sponge barrier TS215S_V1.0 ├0017 NE27062 label TS215S_V1.0 Inside and outside*1 , carton *1, user manual*1 ├0018 NE27070 label TS215S_V1.0 speaker*1 | ├0001 NI00015 membrane 0.04*1M | └0002 NH00012 bond paper 0.04*1M...
  • Page 32 | | | | ├0028 RD00217 SMD precise resistor 1/10W 14.0KΩ ±1% 0603 | | | | ├0029 RD00219 SMD precise resistor 1/10W 20.0KΩ ±1% 0603 R107,R108,R6,R7 | | | | ├0030 RD00225 SMD precise resistor 1/10W 130KΩ ±1% 0603 | | | | ├0031 RD00272 SMD precise resistor 1/10W 10.0Ω...
  • Page 33 | | ├0030 CF00277 metal-film capacitor-RS 0.22uF/100V C242A224K2SC000/(Fara) C52,C53 | | ├0031 CB00438 electrolytic capacitor-RS 470uF/25V LSR φ8*20mm C1,C2 | | ├0032 CF00284 metal-film capacitor-RS 0.1uF/630V C822J104J60C000/(Fara) | | ├0033 RH00037 thermistor-RS-ACT 330Ω PTFL04BG222Q2N34B0/(MURATA) PR200 | | ├0034 CF00279 metal-film capacitor-RS 1.0uF/250V C322E105J60C000/(Fara) C50,C51 | | ├0035...
  • Page 34 | | | | ├0056 RD00818 SMD fixed resistor 2W 2.2KΩ ±5% 2512 R43,R44 | | | | ├0057 RD00800 SMD precise resistor 1/8W 10.0Ω ±1% 0805 R112,R113,R114,R115 | | | | ├0058 SG00729 SMD integrated circuit-RS-ACT MC78M12CDTRKG(DPAK-3)/(ON) | | | | ├0059 SE00156 SMD diode-RS-ACT 1A/200V ES1D(SMA)/(FAIRCHILD) D1,D2,D20,D21,D28...
  • Page 35 Rank Part No Description Specification Insert Location Remark PC03022 PC03022 SPEAKER TS218S_ALTO_110V-120V_CHINA_(NUMARK) ├0001 NC05055 TS218S_V1.2 | ├0001 NI02426 foot cushion φ37*15.5mm PGHA1022ZA/J1_P_A | ├0002 MI02042 handle-RS 220*163.5*63mm _V1.0 | ├0003 ME00082 nut-RS M5*0.8PH*10.6_V1.2 Lock the woofer | ├0004 ME00083 nut M6*1.0PH*11.6_V1.2 Lock the pole mount | ├0005...
  • Page 36 ├0017 NA01719 sponge barrier TS218S_V1.0 ├0018 NE27063 label TS218S_V1.0 Inside and outside*1 , carton *1, user manual*1 ├0019 NE27071 label TS218S_V1.0 speaker*1 | ├0001 NI00015 membrane 0.04*1M | └0002 NH00012 bond paper 0.04*1M ├0020 NF03534 assurance card-RS ALTO PROFESSIONAL_V2.0 ├0021 HK18376 Faceplate TS218S_ ALTO_110-120V_CHINA_(NUMARK)
  • Page 37 | | | | ├0037 RD00709 SMD precise resistor-RS 1.37KΩ±1% 0603 R128 | | | | ├0038 RD00721 SMD fixed resistor-RS 1/10W 22.1KΩ ±1% 0603 R124 | | | | ├0039 RD00856 SMD fixed resistor-RS 1/10W 23.2KΩ ±1% 0603 | | | | ├0040 RD00859 SMD fixed resistor-RS 1/10W 9.09KΩ...
  • Page 38 | | ├0028 ND01210 cushion-RS 8t*45*10mm(E-4382) stick on C13/C14 | | ├0029 CB00436 electrolytic capacitor-RS 1000uF/63V LSR φ16*25mm C28,C31,C32,C64 | | ├0030 CF00277 metal-film capacitor-RS 0.22uF/100V C242A224K2SC000/(Fara) C52,C53 | | ├0031 CB00438 electrolytic capacitor-RS 470uF/25V LSR φ8*20mm C1,C2 | | ├0032 CF00284 metal-film capacitor-RS 0.1uF/630V C822J104J60C000/(Fara)
  • Page 39 | | | | ├0054 CI00328 SMD ceramic capacitor-RS 1206 150PF/630V C0G ±5%(C3216C0G2J151J)/TDK C47,C48 | | | | ├0055 SE00149 SMD double-direct triy diode-RS 1A/30V RB160M-30(ROHM) D3,D4 | | | | ├0056 RD00818 SMD fixed resistor 2W 2.2KΩ ±5% 2512 R43,R44 | | | | ├0057 RD00800 SMD precise resistor 1/8W...
  • Page 40 Rank Part No Description Specification Insert Location Remark PC03023 PC03023 SPEAKER TS218S_ALTO_230V_CHINA_(NUMARK) ├0001 NC05055 box TS218S_V1.2 | ├0001 NI02426 foot cushion φ37*15.5mm PGHA1022ZA/J1_P_A | ├0002 MI02042 handle-RS 220*163.5*63mm _V1.0 | ├0003 ME00082 nut-RS M5*0.8PH*10.6_V1.2 Lock the woofer | ├0004 ME00083 nut M6*1.0PH*11.6_V1.2 Lock the pole mount | ├0005...
  • Page 41 ├0015 NA00858 PE bag-RS 0.04t*240*160mm_V1.0 pack the user manual and guarantee ├0016 NA01719 sponge barrier TS218S_V1.0 ├0017 NE27063 label TS218S_V1.0 Inside and outside*1 , carton *1, user manual*1 ├0018 NE27071 label TS218S_V1.0 speaker*1 | ├0001 NI00015 membrane 0.04*1M | └0002 NH00012 bond paper 0.04*1M ├0019...
  • Page 42 | | | | ├ RD00544 SMD precise resistance 1/10W 22Ω±1% 0603 R127 0034 | | | | ├ RD00545 SMD precise resistance 1/10W 49.9Ω±1% 0603 R99,R100 0035 | | | | ├ RD00550 SMD precise resistor 1/10W 27.0KΩ ±1% 0603 R132 0036 | | | | ├...
  • Page 43 | | ├0023 RH00033 thermistor-RS-CT 5Ω B57235S-0509M000/(EPCOS) | | ├0024 SD00380 integrated circuit-RS NJM7812FA(TO220F)/(JRC) | | ├0025 AC00603 lead free soldering bar S100 | | ├0026 SB00284 transistor-RS IRFB4020PBF(TO220AB)/(IR) Q6,Q7,Q8,Q9 | | ├0027 NC04098 insulator spacer-RS 0.13t*27.5*40mm(HI-FLOW-625) stick on Q6, Q7/Q8, Q9 | | ├0028 ND01210 cushion-RS 8t*45*10mm(E-4382)
  • Page 44 | | | | ├ SG00495 SMD integrated circuit-RS IR2156SPBF(SO14)/(IR) 0046 | | | | ├ CI00279 SMD ceramic capacitor-RS 1206 0.0022uF/200Vx7R±10% 0047 | | | | ├ CI00306 SMDceramic capacitor-RS 1.0uF/25V X7R ±10% C21,C22 0048 | | | | ├ AE00553 SenJu solder paste M705-GRN360-K2-V 0.5KG/bottle 0049...
