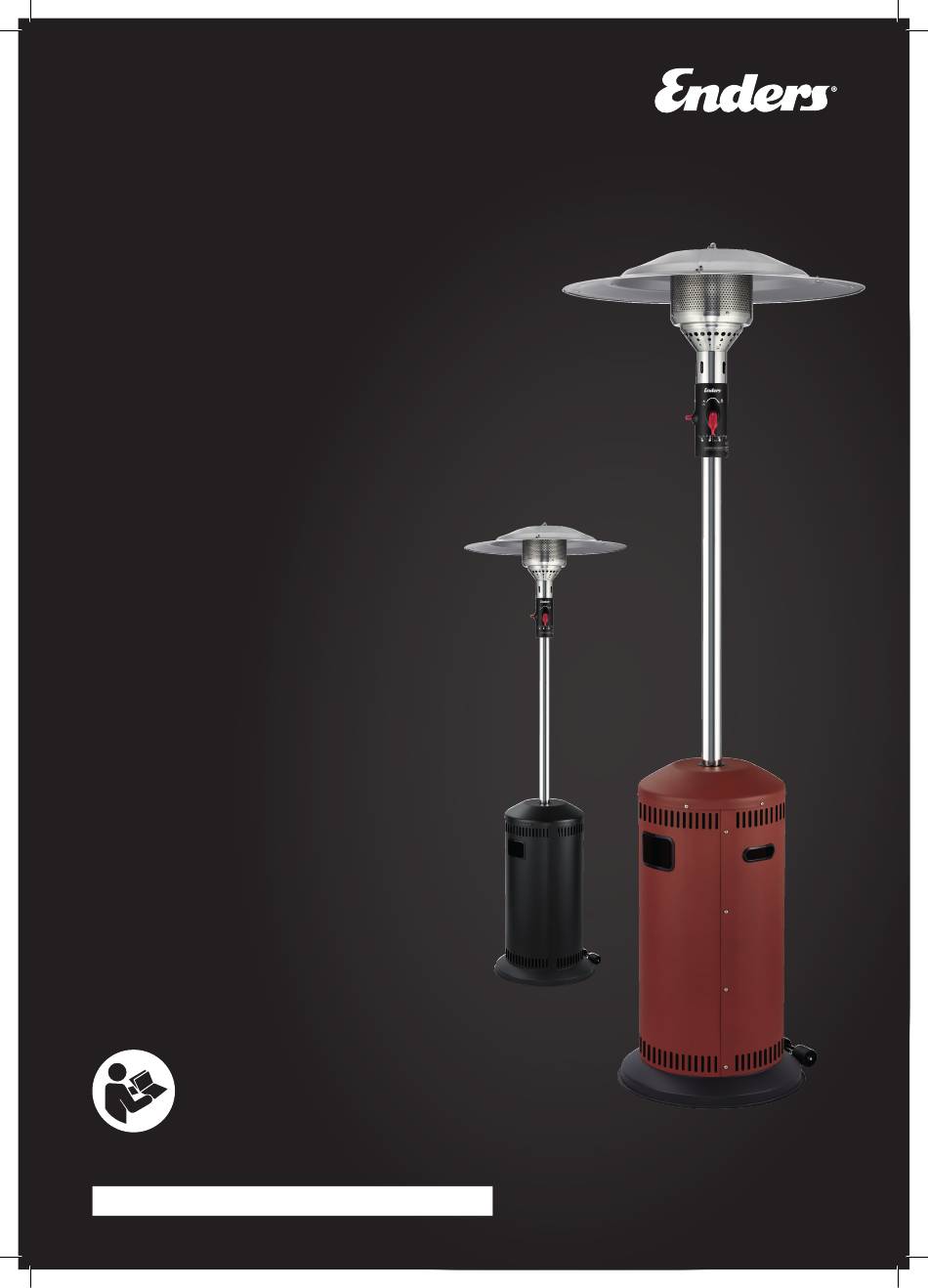

- Page 1 CALORA BLACK ECO GREEN PATIO HEATER BUN-821-000 (0698489) CALORA OCHRE ECO GREEN PATIO HEATER BUN-823-000 (0700863) www.enders-germany.com AUS/NZ Instruction Manual...
-
Page 2: Table Of Contents
AUS/NZ CONTENT INFORMATION REGARDING CLEANING/SERVICING SYMBOLS IN THESE INSTRUCTIONS SAFETY NOTICE UNPACKING STORAGE/TRANSPORT SAFETY NOTICE SAFETY NOTICE REQUIRED TOOLS/AUXILIARY MATERIALS DISPOSAL PARTS DESCRIPTION SCOPE OF DELIVERY TECHNICAL SPECIFICATIONS ASSEMBLY STEPS WARRANTY SAFETY NOTICE SPARE PARTS REQUIRED TOOLS/AUXILIARY MATERIALS ASSEMBLY PROCESS MANUFACTURER CONNECTING THE GAS CYLINDER SAFETY NOTICE... -
Page 3: Information Regarding
CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) INFORMATION REGARDING Congratulations on purchasing this Enders product! Please read and observe these instructions for use and Keep these instructions for future reference. If the pro- particularly the safety notice before using the product and... -
Page 4: Unpacking
AUS/NZ UNPACKING SAFETY NOTICE Q Despite careful processing of all individual Q Risk of death by suffocation/swallowing. Keep parts, individual components can have sharp the packaging materials out of the reach of edges. Therefore, please wear safety gloves, children and dispose of it immediately. Also to avoid getting cut. -
Page 5: Scope Of Delivery
CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) SCOPE OF DELIVERY 241128... -
Page 6: Assembly Steps
AUS/NZ Assembly steps SAFETY NOTICE Q Despite careful processing of all individual Q Risk of death by suffocation/swallowing. Keep parts, individual components can have sharp the packaging materials out of the reach of edges. Therefore, please wear safety gloves, children and dispose of it immediately. Also to avoid getting cut. - Page 7 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Quantity M5 x 10 Quantity M6 x 10 Ø6 ,6 241128...
- Page 8 AUS/NZ Quantity Quantity M6 x 12...
- Page 9 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Quantity M8 x 25 Quantity Ø6 ,4 M6 x 70 241128...
- Page 10 AUS/NZ Quantity M6 x 8 Ø6 ,4...
- Page 11 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Quantity Ø6 ,4 Quantity M6 x 12 241128...
-
Page 12: Connecting The Gas Cylinder
AUS/NZ CONNECTING THE GAS CYLINDER SAFETY NOTICE RISK OF FIRE AND EXPLOSION Q The appliance can only be operated with a Q Make sure that there are no sources of ignition, pressure regulator. Also read and observe open fire or the like in the vicinity, when the assembly instructions and instructions for connecting or replacing the gas cylinder. - Page 13 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) ASSEMBLY PROCESS Place the gas cylinder into the patio heater. Attach the regulator hose to the regulator and then turn the connector (right-hand thread) of the pressure regulator onto the thread on the gas cylinder as shown on the diagram on page 12 of this instruction manual.
-
Page 14: Changing Gas Connection
AUS/NZ CHANGING GAS CONNECTION Remove the two screws at the top of the burner head. Remove the clip. - Page 15 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Loosen the union nut on the gas hose by turning it clockwise and then replace the gas hose with a new one. Connect the union nut to the thread of the gas tap by turning it anticlock- wise and then tighten it with a suitable wrench.
-
Page 16: Installation
AUS/NZ INSTALLATION SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover (see Example 1). - Page 17 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Minimum Clearance from Combustible Material: Side: 1500mm Ceiling: 600mm Rear: 1500mm CEILING 1500mm 241128...
-
Page 18: Operating The Patio Heater
AUS/NZ... -
Page 19: Turning On
CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) TURNING ON CAUTION: NOTE: The device can also be ignited by other means of igni- occur on the burner when igniting and when tion (candle lighter, long match). Wear gloves and switching off the device. -
Page 20: First Aid Measures
AUS/NZ FIRST AID MEASURES FIREFIGHTING MEASURES Q Bring bystanders to safety! If possible, close Q Cover the respective area with a sterile the valve on the gas cylinder. Cool off the Metalline compress. Place the side coated gas cylinder with water. When doing so, with Metalline on the injured skin and loosely pay attention to your own safety! A repeated fixate with a gauze bandage and a cravat. -
Page 21: Cleaning/Servicing
CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) Do not use any aggressive cleaning agents or those containing chlorine. Wipe the soiled surface with a damp cloth or rinse with hot water. If necessary, use a mild detergent. Rinse with water and wipe the entire surface with a microfiber cloth. -
Page 22: Safety Notice
AUS/NZ STORAGE/TRANSPORT SAFETY NOTICE Q These storage instructions also apply to empty gas cylinders because these always contain a RISK OF FIRE AND EXPLOSION residual amount of liquefied gas. Q If possible, do not transport the gas cylinder in vehicles, in which the cargo bay/boot is not Q Store the gas cylinder out of the reach of separated from the driver’s cab. -
Page 23: Technical Specifications
CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) TECHNICAL SPECIFICATIONS CALORA BLACK ECO GREEN/ This appliance has been tested and approved in accordance BUN-821-000 with Australian standard AS/NZS 5263.1.4 MODEL: CALORA OCHRE ECO GREEN/ BUN-823-000 Gas Cylinder: 9Kg Item no.:... -
Page 24: Warranty
AUS/NZ COZO OCHRE 2.0 (BUN-825-000) / COZO BLACK 2.0 (BUN-578-AA.22) WARRANTY Thank you for purchasing one of our quality For Australian Customers Patio Heaters. To make a claim under the warranty please contact Garth support website: www.garthsupport.com or return the product (with proof of purchase) to any Bunnings YOUR PATIO HEATER IS COVERED store. -
Page 25: For Technical Assistance
AUS/NZ CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) WARRANTY WHAT IS NOT COVERED IN THE WARRANTY FOR TECHNICAL ASSISTANCE • Removal or re-installation costs. This warranty does not If you experience any technical issues with your Patio Heater, cover costs for transit, nor in home service. -
Page 26: Spare Parts
AUS/NZ SPARE PARTS... - Page 27 CALORA BLACK ECO GREEN (BUN-821-000) / CALORA OCHRE ECO GREEN (BUN-823-000) CALORA BLACK ECO GREEN: PART PART NAME SUPPLIER CODE NUMBER Reflector FAL 140003077 Burner 140003090 Knob 140002014 Container lid (black) 140003091 Container part left with hinge (black) 140003092 Container door (black)
-
Page 28: Manufacturer
MANUFACTURER Enders Colsman AG Brauck 1 D-58791 Werdohl, Deutschland, Allemagne, Germania, Germany, Duitsland + 49 (0) 2392-9782 30 www.enders-germany.com 241128...
