Genmitsu 101-63-KK-CK User Manual

Camera module kit for kiosk laser machine
Hide thumbs

Advertisement

Quick Links

Download this manual

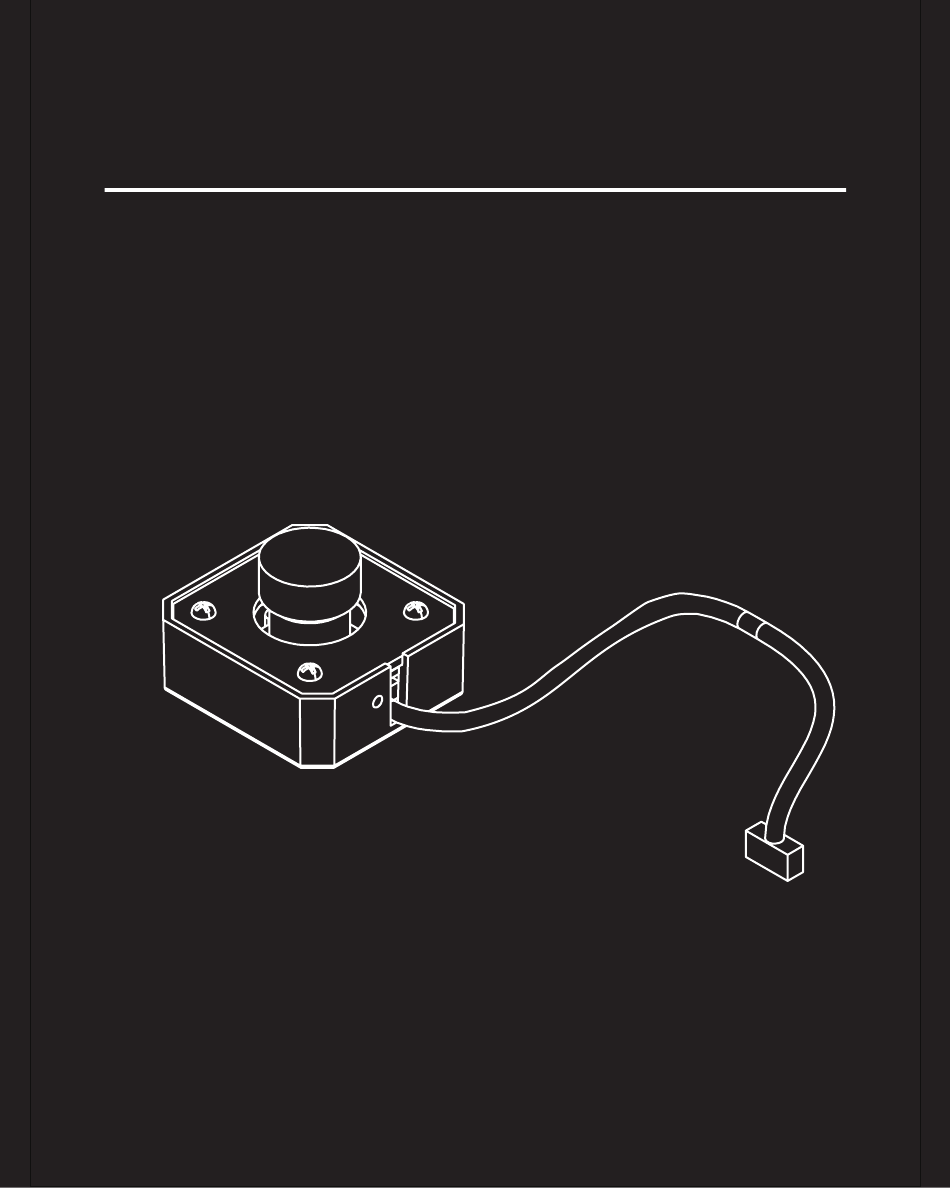

Genmitsu
Camera Module Kit for
Kiosk Laser Machine
User Manual
V1.0 Aug 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the 101-63-KK-CK and is the answer not in the manual?

Questions and answers

Related Manuals for Genmitsu 101-63-KK-CK

Summary of Contents for Genmitsu 101-63-KK-CK

  • Page 1 Genmitsu Camera Module Kit for Kiosk Laser Machine User Manual V1.0 Aug 2024...
  • Page 2 Unbox Camera Module (2) Kraft Paper USB-Type A Cable Focus Card User Manual...

  • Page 3: Step 1: Installation

    Step 1: Installation 1. Place the machine upside down and manually move the laser module to the upper right position. Tip: During installation, please be sure to turn off the power of the machine first and seal the laser air nozzle with an opaque sticker. Move the laser module to the upper right position...
  • Page 4 2. Install the camera module into the top cover buckle. Cover Buckle...
  • Page 5 3. Plug the cable terminal into the corresponding connector, as shown. 4. Push the camera cable through the cable clamp opening and hang it inside. Cable of the Camera Module Cable Terminal Opening Direction of the Cable Clamp Congratulations! You have completed the camera installation steps;...
  • Page 6 Step 2: Camera Focus and Adjustment What you need in this step: • The Kiosk • The computer already has Lightburn installed. • USB-Type A Cable • Focus Card PART 1: Preparatory Work 1. Please open the Lightburn software and select the kiosk model for calibration.
  • Page 7 PART 2: Calibrate Camera Lens 1. Click “camera control” in the control bar, and select the camera name as “USB Camera”. 2. Right-click and select “Calibrate Camera Lens”.
  • Page 8 3. After entering the “Lens Calibrate Wizard” interface, select “USB Camera”. 4. Select “standard Lens” and click “Next”.
  • Page 9 5. Place the focus card according to the guidelines and turn off “Honeycomb check enabled”. 6. Click “Capture” to get the value. The focus card can be properly raised with a wooden block, to prevent the black circle from being unreadable due to exposure. Then click “Next”.
  • Page 11 8. After completing the above operations, click “Finish” to complete the Calibrate Camera Lens. PART 3: Calibrate Camera Alignment What you need in this step: • Kraft Paper 1. Press the power button to turn on the machine. 2. Place the Kraft paper and focus. 3.
  • Page 12 5. Select “USB Camera”, wait for the image to be acquired, then click “Next”.
  • Page 13 6. Enter the required parameters. The following templates are suitable for 10W laser modules: “Fill Speed” enter 6000; “Line Speed” enter 3000; “Fill Power” enter 100; “Line Power” enter 60; “Scale” enter 48. For the 5W laser module, modify “Fill Speed” to 4000. For the 2.5W laser module, modify “Fill Speed”...
  • Page 14 9. Click the icon, wait for the laser module to move into position. 10. Click “Capture Image” when the image refreshes. Then click “Next”.
  • Page 15 11. Select the center of the “1, 2, 3, 4” circle by clicking on it according to the instructions. Zooming in and then selecting will be more accurate. You can click on “Undo Last” to undo the previous mistake.
  • Page 16 12. Click “Next” after making your selection and finish the “Calibrate Camera Alignment”.
  • Page 17 PART 4: Verify the Focusing Effect What you need in this step: • Kraft Paper 1. Place the Kraft paper and focus. 2. Using the square tool, draw 10 square shapes, with length in increments of 10, 20,30 to 100. You can use “Align both vertical and horizontal centers”...
  • Page 18 4. Click “Update Overlay” to importing images. 5. Confirm the camera mesh overlaps with the engraving mesh. If not, you need to adjust Width, Height, X Shift, Y Shift to keep them overlapping. After the complete adjustment, please take a screenshot of the parameter picture and save it on your computer with the file, so that it can be directly imported next time if there is any deviation.
  • Page 19 Genmitsu If you need any assistance, please contact us via: Email: support@sainsmart.com Facebook messenger: https://m.me/SainSmart Help and support is also available from our Facebook Group Vastmind LLC, 2330 Paseo Del Prado, C303, Las Vegas, NV 89102...
