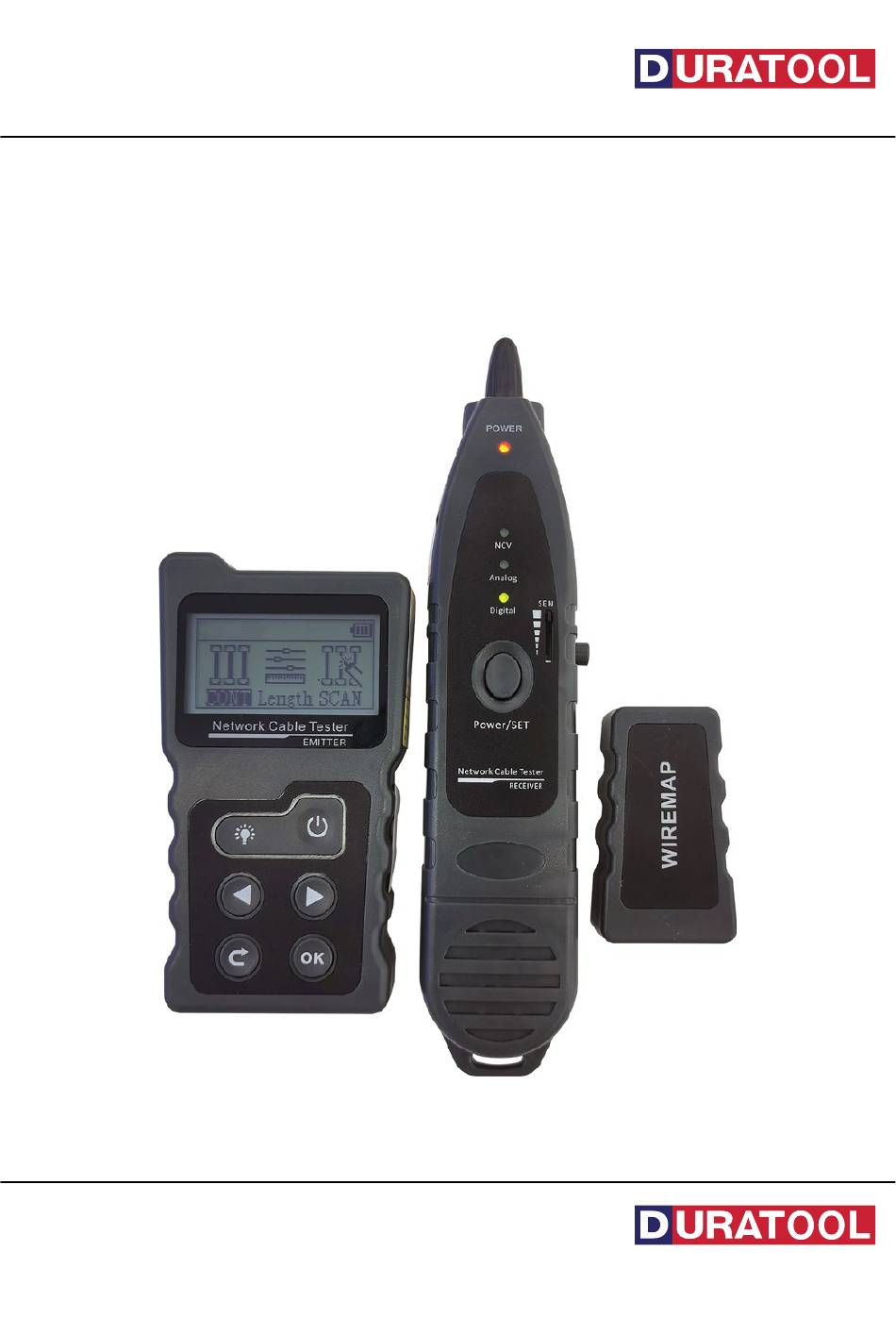

- Page 1 User Manual Network Cable Tester Part Number: D03480 Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <1> 10/04/24 V1.0...
-
Page 2: Table Of Contents
Table of Contents Overview ..........2 Product Operation . -
Page 3: Product Operation
Keypad display and features Product Operation Turn on the device and enter the below main Menu 1. CONT-- Test open, short, cross,ect for STP, UTP cable. 2. Length--measure length of lan cable, range is 2.5m-200m. 3. Scan--Analog/Digital/ PoE mode to locate lan cables. 4. PoE-- available for standard or non-standard PoE switch (5-60V), identify AT or AF standard of PSE type. 5. Flash--locate network port by the flashing port light on switch/ router. 6. Setting-Set Language, backlight time, auto-off time, contrast and version. 1. Continuity Testing Connect one end of cable to “CONT” port of transmitter on the left side, the other end to the RJ45 port of remote, Press “OK” to start testing. If the cable is a good one, the result will be as below. Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <3>... -
Page 4: Length Measurement
1.1 Possible results Only if a cable exists short circuit, no matter it exists cross, breakage or not, the testing result will only display “Short” informa- tion. If it doesn’t exist short circuit, then it would display what actually it is. 1.2 Cable Open If the LCD screen display “Cable Open!”, there are several reasons for this. 1. All the pins are open indeed. 2. No cable is connected. 3. The remote is not connected. 4. Connect with wrong port. 2. Length measurement Connect one end of cable to “Length/Port flash” port, disconnect the cable at far end, choose ‘Length” on the main menu, and select the preferred unit (meter/yard/ feet) before testing. Then press start to measure and the result will come out soon on the screen. From the image, it means there exists problem at 12.1m. To make sure it is short or broke there, you can test its continuity to know details. Kind reminds when measuring cable length. 1. The Lan cable to be tested must be de-energized. 2. disconnect the cable at the far end, no remote, no other devices connected! 3. The range must be 2.5m-200m, otherwise, it would be display 0 meter. 4. W hen measuring broken cables, if the broken point is too close to the empty end (less than 3% of the full length), due to technical reason, the device will show the full length of the cable, in that case customers were suggested to measure the length from the other end to locate the broken point. Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <4> 10/04/24 V1.0... -
Page 5: Cable Scan
3. Cable Scan Connect the cable to be tested to “SCAN” port of transmitter on the left side, enter “SCAN’ on the main menu, press ok to choose scan mode you prefer, the default is digital mode, the other modes is Analog & PoE. then set the corresponding mode on receiver accordingly. After that, hold the receiver to locate cable at the other end, the loudest voice is the correct one. 3.1. A ttention: lf the transmitter is in PoE scan and digital scan mode, the receiver must be in digital mode. The analog scan in transmitter matches analog mode in receiver. If the modes are not matched correctly, even the receiver touch the correct cable, it won’t generate tone, either. 3.2. N on-contact voltage detecting: press the ‘Power/Set” button on the receiver, if the “NCV” indicator is lit on, then you can use the receiver to detect AC voltage presence. 4. PoE Testing 4.1 Standard PoE device It can test the information of standard PoE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE (at or at standard). Connect the cable into “PoE” port, the testing result display as below image. 4.2 Non-standard PoE device If the PoE device is non-standard, it can also test POE voltage, power supply polarity, power supply mode, but it can’t tell the type of PSE, just display “Non standard”. Connect the cable into “PoE” port, the testing result display as below image. Attention: If all the 8 pins are providing power, it won’t display polarity. 4.3 I f connected with PoE device, the result can be displayed after a few sees, it there is no result displayed after 30secs, then the device connected may not be PoE device. 5. Port Flash & Switch details Tasting Connect a Lan cable to “Length/Flash” port on the main unit, choose “Flash” on the main menu to start testing. The 2 indicators ... -
Page 6: Setting
6. Setting 6.1. Back light Setting Adjust the backlight time among 15s, 30s, 60s, on, and off. 6.2. Auto-off time Adjust the backlight time among 15mins, 30mins, 1h, OFF. 6.3. Contrast Setting Press the left and right keys to adjust the contrast to suit yourself. 6.5. Version Information To check version information of software and hardware . 7 .Specification Cable type CAT5e, CAT6, CAT6a (STP & UTP) Wiremap Test with Switch Directly Max. Range 600m Cable Type CAT5e, CAT6, CAT6a (STP & UTP) Test Range 2.5~200m Length Accuracy ±1.6m Breakage Location Emitter Cable Type CAT5e, CAT6, CAT6a (STP & UTP) Max. Signal Voltage 9 ±1Vp-p Scan Frequency 130kHz... -
Page 7: Accessories
LCD Display 128×64 Dot-matrix with backlight Power Supply AAA Battery×3 (Not Included) Low Battery Warning 2.7V Emitter Auto-off Time 15min / 30min / 60min / OFF Voltage Protection DC46V 5mA Max. Working Current <150mA Size 130mm×70mm×28mm Sensitivity Adjustable AC Voltage Detecting Lamp Receiver Battery Type 9V×1Pc (Not Included) Low Battery Warning 6 ±0.5V Max. Working Current <100mA Size 210mm×43mm×27mm Wire Map Port RJ45 Remote Voltage Protection DC48V 5mA Size 65mm×37mm×23mm Note: If the emitter uses a rechargeable battery, it can be charged through the Type-C port of the emitter. 8. Accessories Emitter Carry Bag Receiver Cable Adaptor Remote Certification... - Page 8 Result Reason or solution Connects to wrong port, “SCAN” is the correct one The mode of transmitter and receiver must keep the same No tone when track cable Check whether the battery is low Turn up the sensitivity The text on screen is blurry Adjust the contrast to suit yourself Turn on the device and Replace a new battery auto-off soon Important Notice : This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. DURATOOL is the registered trademark of Premier Farnell Limited 2019. Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <8> 10/04/24 V1.0...
