Operation Manual
SANlight EVO Compact
By purchasing a SANlight EVO Compact Series you have decided on a high quality product, which will give you much
pleasure. Please read the operating instructions before using your EVO Compact LED, as incorrect use can cause da-
mage to the lamp or plants. If the EVO Compact is not used properly, all warranty claims and the manufacturer's product
liability expire.
ATTENTION photobiological safety advice: The EVO Compact Series is used exclusively for illuminating plants and is not intended for
general lighting purposes. According to DIN EN 62471, the EVO Compact is classified in risk group 1. Nevertheless, avoid unnecessarily
long irradiation or looking directly into the light source. The EVO Compact Series includes following models: EVO 2C, EVO 3C, EVO 4C,
EVO 5C, EVO 6C, EVO 8C
Guarantee Policy
This device has been designed, manufactured and tested in accordance with the European safety standard (EN60598/CE). The guarantee for the LED-light and accessories
is 3 years from the date of purchase. The guarantee does not apply to equipment that has not been installed and maintained as specified in this manual. The manufacturer
assumes no responsibility for damage caused by unauthorized or incorrect use. In case of damage, the device (LED-light incl. power supply) must be returned to the respecti-
ve SANlight sales partner, from whom the product was purchased. They send the defective goods to the manufacturer, SANlight GmbH. After repair by the manufacturer, the
device is returned to
the respective sales partner.
Work and repairs
Repairs and works may only be carried out by the manufacturer. If repairs, modifications and other works are not performed by the manufacturer, the manufacturer 's warranty
and product liability expire.
Scope of delivery

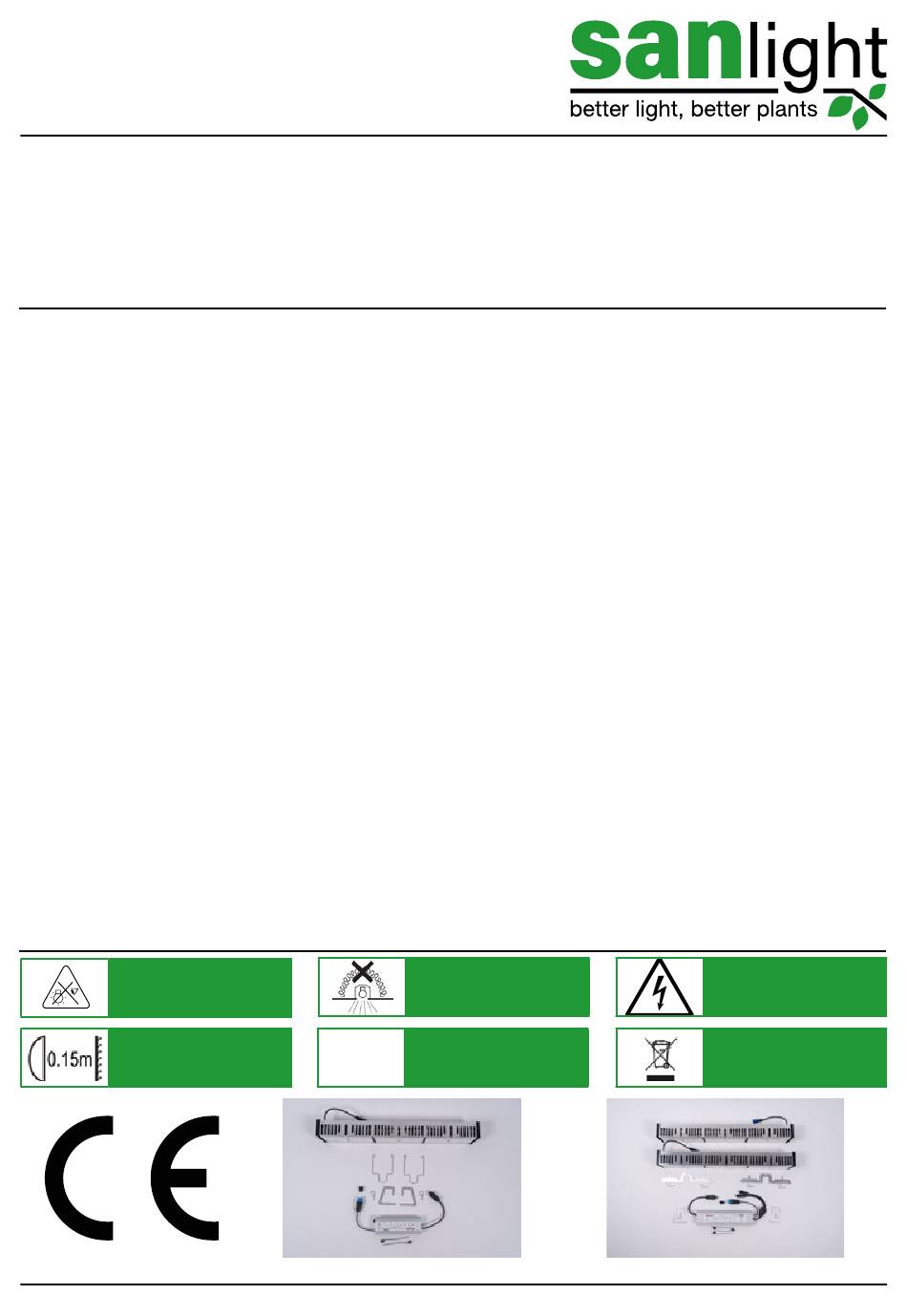

Figure 1+2 shows all components of your SANlight EVO Compact (depending on model). Please check the content of the packaging for completeness and damage. Never
use damaged components.
Electrical connection of the EVO Compact
The LED module must be connected to the power supply unit for the power supply. To do this, connect the plug of the DC supply cable on the LED module to the socket of
the DC cable on the power supply unit. For this purpose, the plug and the socket have printed arrows that must point towards each other.
Connection sequence
The connection sequence must be followed! First connect the DC cables and then the AC cable. If you disconnect the EVO Compact from the power supply, proceed in
reverse order (disconnect the AC supply cable first and then the DC cable). Failure to comply with this instruction may result in the destruction of the EVO Compact. All
guarantee and warranty claims will be invalidated. The EVO Compact has a hot-plug lock as a safety feature: If the connection sequence is not followed, it will not switch on.
Always connect the driver to the light first, then connect it to the power supply! For a detailed guide see the installation guide on the following pages.
Laying the cables
When laying all cables, ensure a strain-relieved fixation. Cabling should not be exposed to tensile load. All cables must be completely unwound. The LED-module and the
power-supply unit must not be operated with coiled cables.
Power supply
When using several EVO Compact modules, a distance of at least 10mm must be maintained between the individual power supplies. Stacking the power-supply units is not
permitted.
Technical data
For technical data, please refer to the separate data sheet for the EVO Compact Series.
Attention: Do not look directly
into the light source.
Attention: Keep a safety
distance of at least 15cm to
surrounding objects.
1
Attention: Do not cover the
light source.
Dust tight, protection against
IP65
water jets from any direction.
Figure 1
www.sanlight.com
Attention: Risk of shock.
Disconnect power before
working on the light.
The LED must not be disposed in hou-
sehold waste! It can be handed back
to the manufacturer. Disposal costs are
borne by the manufacturer.
Figure 2
20.12.24

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVO Compact Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanlight EVO Compact Series

  • Page 1 In case of damage, the device (LED-light incl. power supply) must be returned to the respecti- ve SANlight sales partner, from whom the product was purchased. They send the defective goods to the manufacturer, SANlight GmbH. After repair by the manufacturer, the device is returned to the respective sales partner.
  • Page 2 Operation Manual SANlight EVO Compact Handling the LED module and general warnings To clean the secondary optics of your EVO Compact, please use a soft, non-abrasive cloth with distilled water. Under no circumstances should you use other aids such as cleaning agents, damp cloths, etc. For cleaning, the luminaire must be disconnected from the mains. Make sure that the secondary optics are not scratched by cleaning.
  • Page 3 Operation Manual SANlight EVO Compact Step 5: Secure front and back end of the driver with Step 5: Secure front and back end of the driver with the splints in the slot of the hanging brackets. the splints in the slot of the hanging brackets.
  • Page 4: Led Driver

    Operation Manual SANlight EVO Compact Step 7: The LED hanging brackets should always be Step 8: Take the DC cable and make sure the orien- mounted in the middle slot of the front e.g. back tation matches with the plug on the LED driver.
  • Page 5 Operation Manual SANlight EVO Compact Step 10: Place them on both sides. Step 10: Now you can secure the dimming signal plug. Step 1: Also attach the AC plug. Step 11 (optional): If the dimming signal plug is not needed close it with the enclosed protection cap.
  • Page 6 Operation Manual SANlight EVO Compact Step 11 (optional): When the protection cap is plug- Step 12 Now the EVO Compact is ready to be ged in right it will make a „click“ sound. Now the connected to a power source (black/green plug) and connection is IP65 sealed.
  • Page 7 Operation Manual SANlight EVO Compact Step 3: Place LED driver between the hanging bra- Step 4: Slide the LED driver support into the corre- ckets. sponding slot in the hanging brackets. Step 5: Secure front and back end of the driver with Step 5: Secure front and back end of the driver with the splints in the slot of the hanging brackets.
  • Page 8 Operation Manual SANlight EVO Compact Step 7: Insert the LED hanging bracket in the Step 7: Make sure the LED hanging bracket is inser- second slot after the middel of the module (9 slot ted all the way in. overall from the right e.g left).
  • Page 9 Operation Manual SANlight EVO Compact Step 8: Secure the second LED hanging bracket also Step 9: Now you can place the second luminaire with a splint. next to the one with the attached LED hanging brackets. Step 9: Make sure both hanging brackets are po-...
  • Page 10 Operation Manual SANlight EVO Compact Step 9: Make sure both LED hanging brackets are at Step 9: Now secure the front and back LED hanging the right position. brackets with the splint. Step 9: Now secure the front and back LED hanging Step 10: Now you can securly lift the assembled brackets with the splint.
  • Page 11 Operation Manual SANlight EVO Compact Step 11: Take the two DC cables from the driver and Step 11: Take the two DC cables from the driver and route them over the carrier, between the carrier and route them over the carrier, between the carrier and the lights.
  • Page 12 Operation Manual SANlight EVO Compact Step 12: Attach the enclosed cable ties to the sus- Step 12: Attach the enclosed cable ties to the sus- pension brackets. Take the dimming cable (blue pension brackets. Take the dimming cable (blue plug) and attach it.
  • Page 13 Operation Manual SANlight EVO Compact Step 13 (optional): When the protective cap is Step 14: The EVO Compact is now ready to be con- correctly inserted, you will hear a ‘click’ sound. The nected to a power source (green plug) and a dim- connection is now sealed to IP65.
  • Page 14 Operation Manual SANlight EVO Compact Single luminaires: This suspension allows flexible Single luminaires: Driver and luminaire can hang at positioning of the light. different heights. Only the cable length needs to be taken into account here. Double luminaires: The suspension allows a carabi- Double luminaires: The driver can also be suspen- ner or similar to be attached in the centre.

This manual is also suitable for:

Evo 2cEvo 3cEvo 4cEvo 5cEvo 6cEvo 8c
