Transmitter
Instruction and Operation Manual
Document No. 360-2001-01 Rev A
th
Sensidyne, LP • 1000 112
Circle N, Suite 100
St. Petersburg, Florida 33716 USA
800-451-9444 • +1 727-530-3602 • +1 727-539-0550 [fax]
web:
www.sensidyne.com
• e-mail:
info@sensidyne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SensAlert IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sensidyne SensAlert IR

Summary of Contents for Sensidyne SensAlert IR

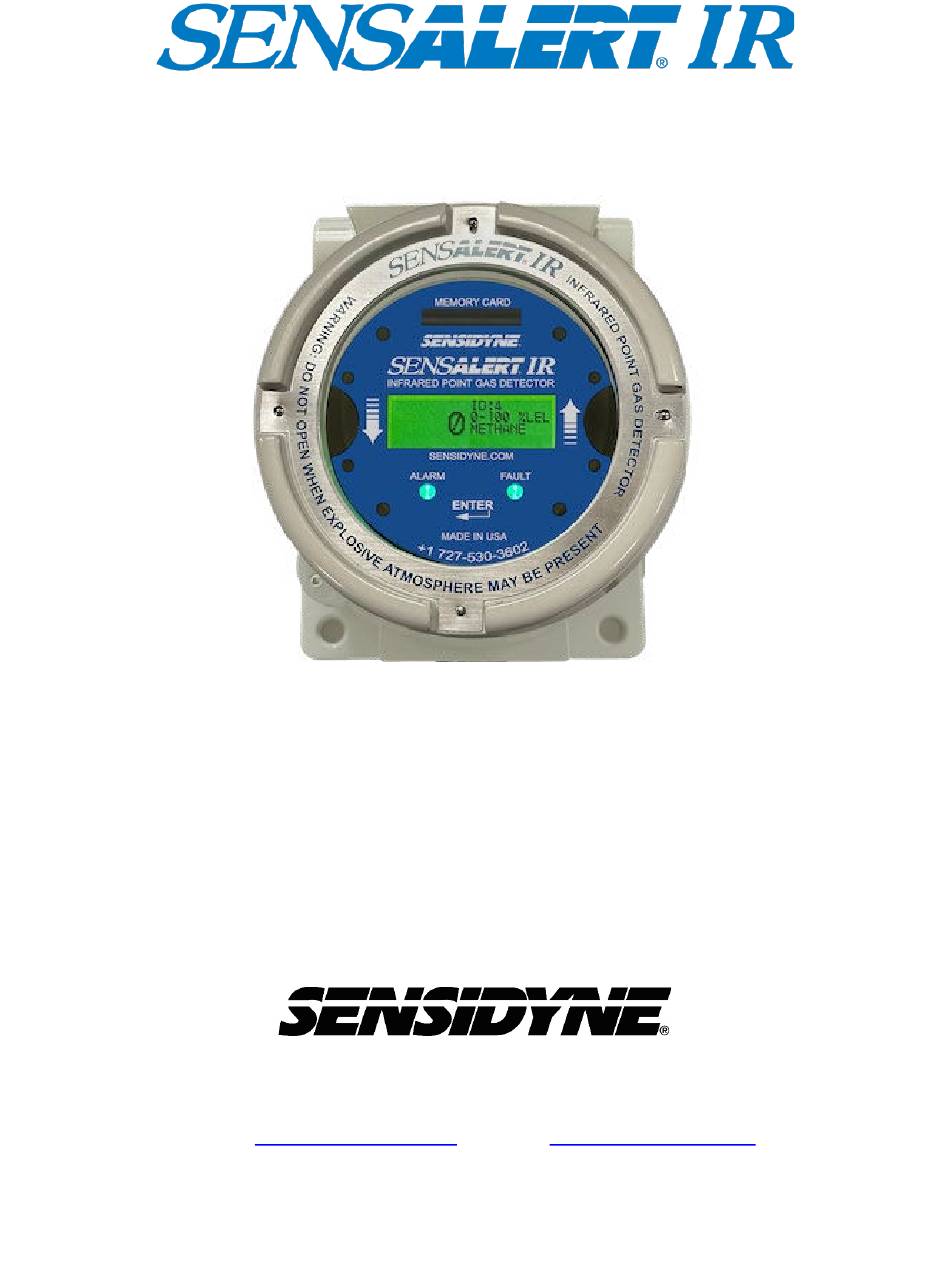

  • Page 1 Transmitter Instruction and Operation Manual Document No. 360-2001-01 Rev A Sensidyne, LP • 1000 112 Circle N, Suite 100 St. Petersburg, Florida 33716 USA 800-451-9444 • +1 727-530-3602 • +1 727-539-0550 [fax] web: www.sensidyne.com • e-mail: info@sensidyne.com...
  • Page 2 SensAlert IR Transmitter Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 3 Commitment Our quality and service are uncompromising. We back the SensAlert IR with a five-year warranty on all materials and workmanship. We offer technical support, user training and on-site service and maintenance of equipment to meet the needs of our customers.

  • Page 4: Table Of Contents

    4 – 20 MA CAL Menu ........................27 6.9. Sensor Restore Menu ........................28 6.10. DATA LOGGING (OPTIONAL) ......................29 FIGURES ............................33 UNIT STATUS FLASH CODES ......................39 UNIT ERROR CODES ........................41 Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 5: Specifications

    Average: 250 mA Peak: 500 mA Power: 9W Max Weight: 2.8kg Approvals: CSA(US) Certificate: 1513912 (LR9549) Class I, Division 1, Groups B,C,D T5 Installation Category: Cat. I, Pollution Degree 2, Overvoltage II Altitude: Up to 2000m Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 6: General Description

    VDC (DC Voltage) SENSALERT IR The SensAlert IR Transmitter is designed to be used with the SensAlert IR Sensor. The SensAlert IR is a microprocessor based intelligent transmitter continuously monitoring information from the gas sensor. The LCD of the SensAlert IR displays the gas concentration and sensor status. The SensAlert IR has one (1) “Alarm”...

  • Page 7: Operation

    The first step in the installation process is to establish a mounting location for the SensAlert IR Transmitter and Sensor. Select a sensor location that is typical of the atmosphere to be monitored or close to the anticipated source of a dangerous gas.
  • Page 8 Wire insulation should be temperature rated for greater than or equal to 70°C. There are 2 earth screws on the SensAlert IR Transmitter. One is on the outside of the enclosure and the other is located on the inside of the enclosure. Both are marked with earth ground symbols and green screws.

  • Page 9: Current Output

    0 for status code information If a fault is detected, the SensAlert IR Transmitter will display a fault notification on the LCD display giving the error code in decimal. Refer to section 10 for more information on the error codes.

  • Page 10: Optional Features

    5.2. Data Card Option The Data Card Option of the SensAlert IR Transmitter uses a MMC card to log different events to help track and changes or sensor behavior. See below for events that get logged: Gas Change Events- When a gas level rises or falls according to a pre-determined delta (change) threshold, a gas record is entered into the log by the SensAlert IR Transmitter, containing the timestamp and gas level at the time of the event.

  • Page 11: Magnetic Switch Operation

    SensAlert IR Transmitter 6. MAGNETIC SWITCH OPERATION The SensAlert IR Transmitter has three (3) magnetic switch pickups on the Display PCA. The picture below shows the location of the magnetic switches labeled UP, DOWN and ENTER. Placing a magnet near one of the switches will cause the following operations to occur.
  • Page 12 During Warm Up, FAULT LED will be solid Blue and ALARM LED will be falshing Yellow – Blue. MC – REMOVED indicates the MEMORY CARD (MC) in not installed in the SensAlert IR Transmitter. Other MC indications are OK, FAULT, FULL.
  • Page 13 SensAlert IR Transmitter Selecting Enter when the SensAlert IR Transmitter is in normal operating mode will advance to the following display: Selecting Enter will allow the operator to safely remove the Memory Card. * EJECT MEMORY CARD INFO MAIN MENU...

  • Page 14: Main Menu And Sub Menus

    20 mA current output Down Arrow Sensor Restore Allows user to 4 – 20 MA CAL Restore the sensor * SENSOR RESTORE EXIT to its original factory settings Down Arrow Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 15 SensAlert IR Transmitter Exit back to normal operation. 4 – 20 MA CAL SENSOR RESTORE * EXIT Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 16: Calibra�On Menu

    Using the Up and Down arrows will allow the operator to change the calibration gas value of the sensor to match the calibration gas used to span the sensor. Once the correct value is displayed select Enter and the sensor will be uploaded with the new calibration gas value. Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 17 This completes the calibration and the device can be put back into the normal operating mode. Arrow Down to ZERO SPAN CAL. VAL * EXIT Enter * EXIT Enter again and the SensAlert IR Transmitter returns to normal operation. Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 18: Alarm Menu

    6.3. Alarm Menu The alarm menu allows the user to configure the alarm thresholds, latch behavior, and the active high/low setting. The default alarm threshold for the SensAlert IR Transmitter are as follows: Alarm Threshold 20% of Full Scale 40% of Full Scale...

  • Page 19: Rese�Ng Latch Relays/Silencing Audible Relays

    This menu will allow the operator to select another relay to program. Or select Fault or Exit and the next display will be: FAULT * EXIT Selecting Enter on this display will put the SensAlert IR Transmitter back into normal operation. Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 20: Relay Menu

    Enter to accept the new value. Then Exit the menu and proceed on to the next selection. In this example the Low alarm relay will actuate 30 seconds after the Low set point is exceeded. * ON DLY LOW OFF DLY ENERGIZED EXIT Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 21 This menu will allow the operator to select another relay to program. Or select Exit and the next display will * FAULT EXIT Arrow Down to Exit FAULT * EXIT Enter * EXIT Selecting Enter will return the SensAlert IR Transmitter to normal operation. Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 22 The fault relay is set to energized by default. This is so if the device loses power, the relay toggles and indicates to the unit’s power has been lost. For this to work, the fault relay must be utilized by being wired to a light, horn, or some other indicator. Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 23: Network Menu

    Select Enter * ZONE ONLINE EXIT Select Enter to change the Zone number of the SensAlert IR Transmitter. * ZONE ONLINE EXIT Use the Up and Down Arrows to change the Zone number (0-16). Once the correct Zone number is displayed select Enter.

  • Page 24: Hide Menu

    * SELF TEST DATE TIME Selecting Enter for the Self Test will make the sensor generate a 4-20 mA input into the SensAlert IR Transmitter from 4 mA to 20 mA (0-fullscale). In the self test mode, the SensAlert IR Transmitter outputs are fully functional.

  • Page 25: Time Date Menu

    SensAlert IR Transmitter 6.8. Time Date Menu SELF TEST * DATE TIME Entering this menu will allow the operator to set the time and date of the SensAlert IR Transmitter real time clock. * DATE / 30 / 2006 TIME...
  • Page 26 Time numbers are changed using the procedure as the Date numbers. Once the correct Time is programmed, select Enter and arrow down to Exit. DATE TIME * EXIT Select Enter * EXIT Selecting Enter again will return the SensAlert IR Transmitter to normal operation. Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 27: Ma Cal Menu

    0 SET 4 MA SET 20 MA * DEFAULTS EXIT Arrow down and select Enter to return to the SensAlert IR Transmitter to 4-20 MA CAL main menu. SET 4 MA SET 20 MA DEFAULTS * EXIT Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 28: Sensor Restore Menu

    Selecting Enter will display the following: Selecting Enter will issue a factory restore and restore the sensor to its original factory settings. Any changes made to the zero, span, or calibration value will be reset. The SensAlert IR Transmitter will then FACT RESET SENSOR * YES show a SENSOR FAULT as the sensor must be reset for the factory restore to take effect.

  • Page 29: Data Logging (Optional)

    OK” to “MC-FULL”, warning the user to copy the contents off to a permanent storage location and reformat the card to start storage over. The SensAlert IR Transmitter will continue to log data to the flash card until it reaches 100% full. At that time, the status will change to “MC-FULLNOW” indicating that there is no more room to store data.
  • Page 30 = variable data depending on tt Log Entry Type Table (tt): Log Entry Type Description Code (tt) Boot/Power up- SensAlert IR Transmitter Unit Information Event Sensor Warm-up: New Sensor/Sensor removed and replaced Event Parameter Changes Made Event Alarm High-Level Triggered Event Alarm Mid-Level Triggered Event Alarm Low-Level Triggered Event Change in Gas Level >...
  • Page 31 Literal text for sensor one (S1-) Literal text for sensor two (S2-) Literal text for both sensors (BB-) Replaced with literal text (S1-, S2- or BB-) based on sensor(s) reporting on SensAlert IR Transmitter Unit Serial Number DVID Disk Volume ID FWMaj...
  • Page 32 Message Text Sensor Status Code (see sensor manual for code values) Sensor Error Code (see sensor manual for code values) Literal text: “Sensor Missing!”, or “Sensors Not Identical!” CALTXT Literal text: “Zeroed.” or “Spanned.” Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 33: Figures

    Figure 2 – Back View of SensAlert IR Transmitter Wiring Figure 3 – SensAlert IR Sensor Separation Kit Figure 4 – Mounting SensAlert IR Transmitter and SensAlert IR Sensor Figure 5 – Mounting SensAlert IR Transmitter and SensAlert IR Sensor Tall Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 34: Lcd Display

    Gas Sensor Port (1 ” NPT Sensidyne, LP 1000 112 Circle N, Suite 100 St. Petersburg, Florida 33716 USA Figure 1 – SensAlert IR Tel: 800-451-9444 / +1 727-530-3602 • Fax: +1 727-539-0550 [fax] web: www.Sensidyne.com • www.SensidyneGasDetection.com e-mail: info@Sensidyne.com...
  • Page 35 NO = NORMALLY OPEN Sensidyne, LP 1000 112 Circle N, Suite 100 St. Petersburg, Florida 33716 USA Figure 2 - Back View of SensAlert IR Tel: 800-451-9444 / +1 727-530-3602 • Fax: +1 727-539-0550 [fax] Wiring web: www.Sensidyne.com • www.SensidyneGasDetection.com e-mail: info@Sensidyne.com...
  • Page 36 Class I, Div I Group B, C & D Ex d IICC GB 2. TERMINALS: 6 3. HEIGHT: 4.11” COVER INSTALLED 4. GROUND SCREW ALSO LOCATED UNDER TERMINAL BLOCK Figure 3 – SensAlert IR Sensor Separation Kit Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 37 SensAlert IR Transmitter Figure 4 - Mounting SensAlert IR Transmitter and SensAlert IR Sensor Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 38 SensAlert IR Transmitter Figure 5 - Mounting SensAlert IR Transmitter and SensAlert IR Sensor Tall Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 39: Unit Status Flash Codes

    Unit goes through its Cool Temperature calibration procedure. (Factory Only) 4mA->20mA 0x0f Self Test Unit generates zero to full scale output (4-20mA & Norm Gas Level) AGC Potentiometer reaches the minimum predetermined value during the unit AGC 0.2ma 0x10 Reference Channel Fault procedure. Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 40 Balance Potentiometer reaches the minimum or maximum predetermined value 0.4ma 0x11 Active Channel Fault during the unit Calibration procedure. 0x12 Power Fault 24VDC < 18 or 24VDC >32V 0x13 Comp Zeroing 0x14 Comp Spanning 0x15 Fixed 4mA 0x16 Fixed 20mA Sensidyne Document No. 360-2001-01 (Rev A)

  • Page 41: Unit Error Codes

    When the Balance digital potentiometer reaches the maximum predetermined value during the unit ERR_BAL_POT_MAX 0x0B Calibration Fault calibration procedure. When the Balance digital potentiometer reaches the minimum predetermined value during the unit ERR_BAL_POT_MIN 0x0C Calibration Fault calibration procedure. Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 42 ERR_24VDC_LOW 0x19 24VDC too Low Unit Fault ERR_24VDC_HIGH 0x1A 24VDC too High Unit Fault PRESSURE_FAULT 0x1B No Pressure Sensor Input Unit Fault FAULT_EXTERNAL 0x1C LIM (Fault Version) Either input Active…External Fault Condition Unit Fault Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 43 SensAlert IR Transmitter ERR_RD_PRES SensAlert IR Sensor 0x1D . No response from MPL115A2 Unit Fault Sensidyne Document No. 360-2001-01 (Rev A)
  • Page 44 SensAlert IR Sensor Run (Warning) 0x88 Temp Transient SensAlert IR Sensor Run (Warning) 0x8A EOL Warning SensAlert IR Sensor has reached its end of life Run (Warning) 0x8B Over-Range SensAlert IR Sensor gas output over predetermined range Run (Warning) 0x8C Revision...
