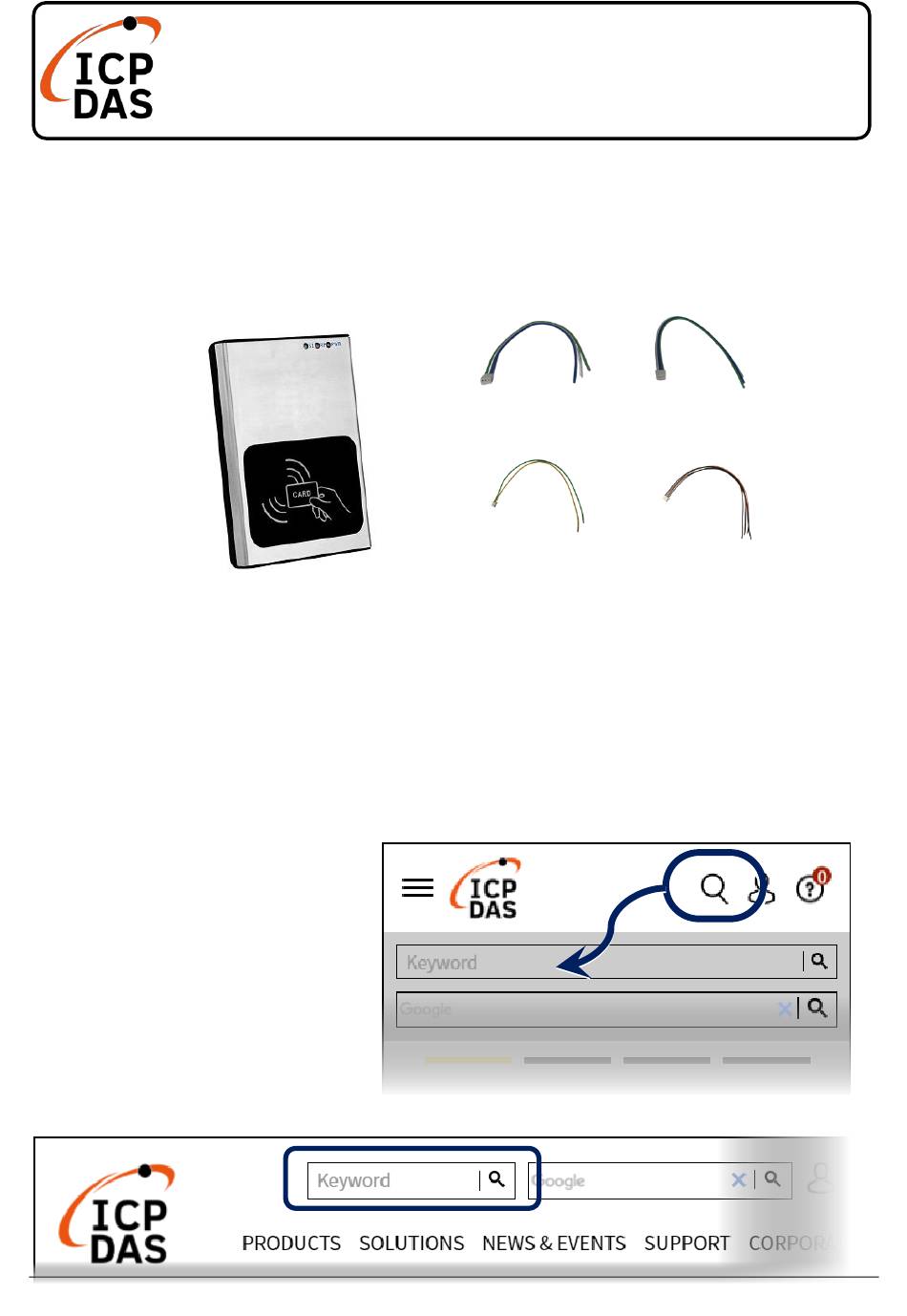

Packing List
In addition to this guide, the package includes the following items:
ACS-10VP-MF
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
ACS-10VP-MF Quick Start
CA-012x2
CA-019x1
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
v1.0, Dec. 2024
CA-013x1
CA-020x1
Cables
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA ACS-10VP-MF
Summary of Contents for ICP DAS USA ACS-10VP-MF
- Page 1 ACS-10VP-MF Quick Start v1.0, Dec. 2024 Packing List In addition to this guide, the package includes the following items: CA-012x2 CA-013x1 CA-019x1 CA-020x1 ACS-10VP-MF Cables Resources How to search for drivers, manuals and spec information on ICP DAS website. Technical Support ...
-
Page 2: Pin Assignment
Pin Assignment Connector Type Pin Assignment Description RS-485(D+/D-) Baud Rate (bps): 9600 Parity: NONE, Data Bits: 8, Stop Bits: 1 DI0(Door position detection) DI1(Electric lock trigger) (Digital Input, Dry Contact) Electronic lock control (Relay Output) Door position alarm output (Relay Output) Anti-sabotage detection (Relay Output) Wire connections... -
Page 3: System Installation
System Installation Connect to host PC, network and power supply... - Page 4 01. Make sure that the network settings on the PC are properly configured and functioning properly a. Entry the IP address as "192.168.0.x", where "x" is a number Between 1 and 254 except 1, Subnet mask as "255.255.0.0". Finally, press "OK" button. 02.
- Page 5 03. Select network connection interface of PC 04. Click the "OK" button to wait for the search to complete 05. Display the device search list and select the module name Add Mifare card number A. Add Mifare card number 01. Select the voice number (0~39): 0 02.
- Page 6 C. Read the pass records 01. Click the "Get Record" button to read a pass record 02. Display Card number [2632646384] /、Status [Pass] and Time [Year/Month/day Hour:Minute:Second] Card UID Delete Mifare card UID A. Delete Mifare card UID 01. Fill in the UID of card: 2632646384(4 Byte or 7 Byte UID) 02.
- Page 7 C. Read the pass records 01. Click the "Get Record" button to read a pass record 02. Display Card number [2632646384]、Status [Denied] and Time [Year/Month/day Hour:Minute:Second] 02 Card UID...
-
Page 8: Troubleshooting
⚫ Troubleshooting Problem Item Solution Description 1. Please confirm that the PoE power Power Failure supply is normal (PWR LED Off) 2. Please return to the ICP DAS for inspection and repair 1. Make sure cards support Mifare S50 Cards cannot be standard (ISO 14443-A) used 2.
