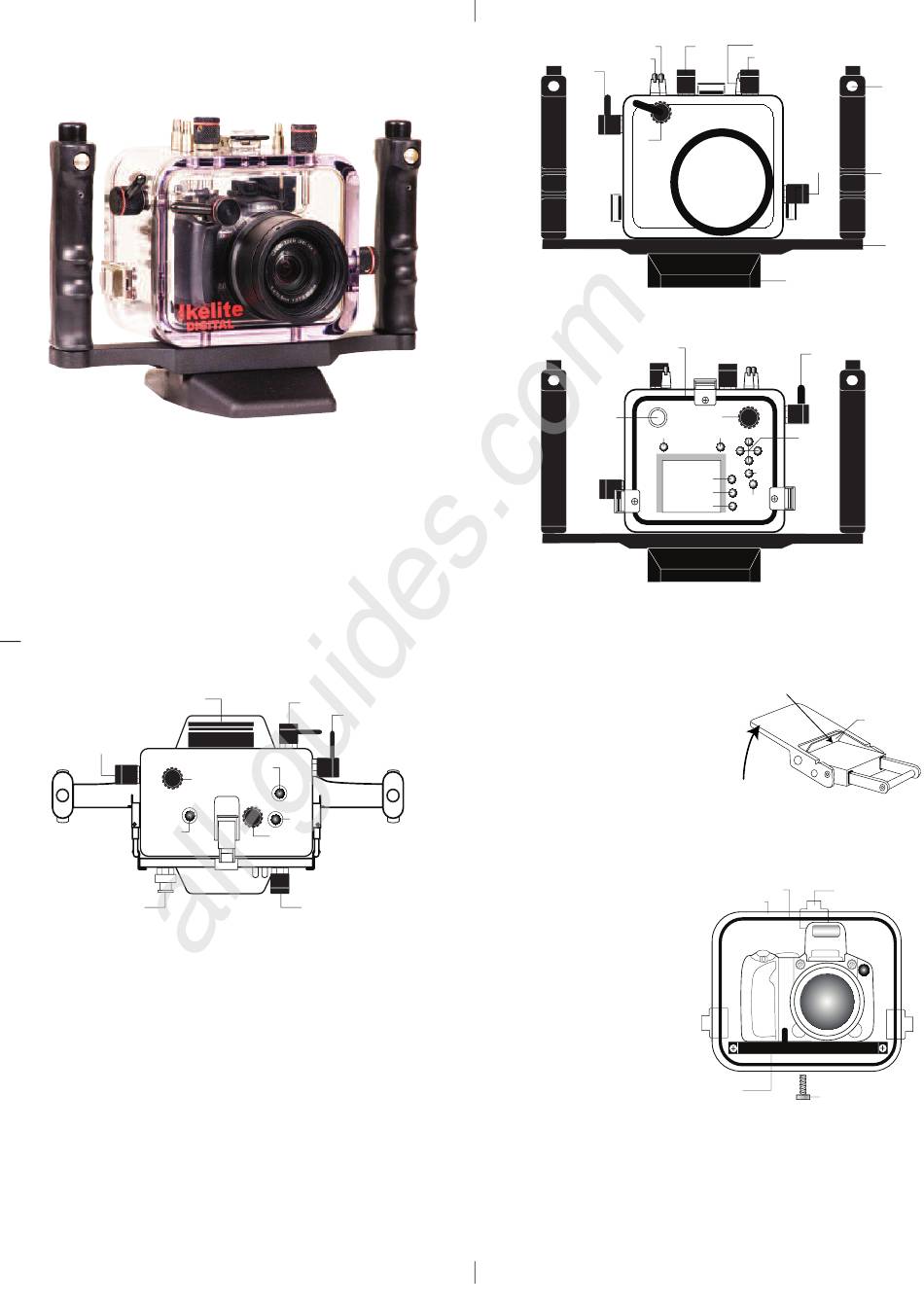

Ikelite 6140.05 Instruction Manual

Ikelite Digital Housing
i n s t r u c t i o n
#6140.05 for Canon PowerShot S5 IS
Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 30 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200' (60m).
Lens Port
Macro/
Manual Focus
Pop-Up Flash
Flash
TTL Sync Cord
Connector
TOP VIEW
All manuals and user guides at all-guides.com
m a n u a l
Zoom
Shutter
Release
Continous
Off
Mode
Mode
3
Off
Continous
Shutter
Release
Zoom
Lid
Snap
FRONT VIEW
O'ring
TTL
Sync Cord
Connector
Shortcut
Function
Lid
Snap
BACK VIEW
O O p p e e n n i i n n g g t t h h e e H H o o u u s s i i n n g g
1. Lid Snaps have a L L o o c c k k .
To open, push Lid Snap Lock
forward and lift as shown.
Keep pressure on the Lid
Snap so it does not fly open
quickly.
Some lid snaps have a lot of
spring tension once they go over center, have a firm grip on the
lid snap. Lid Snaps may be opened one at a time.
I I n n s s t t a a l l l l i i n n g g t t h h e e C C a a m m e e r r a a
1. Remove the back from
the housing. The
mounting tray for the
camera is secured to
the housing back.
Position the camera on
the tray and secure it
with the mounting bolt
which threads into the
camera's tripod socket.
U U s s e e a a c c o o i i n n o o r r f f l l a a t t
b b l l a a d d e e d d s s c c r r e e w w d d r r i i v v e e r r t t o o
t t i i g g h h t t e e n n t t h h e e m m o o u u n n t t i i n n g g
b b o o l l t t s s o o t t h h e e c c a a m m e e r r a a i i s s
f f l l a a t t a a g g a a i i n n s s t t t t h h e e t t r r a a y y . .
C C A A U U T T I I O O N N : :
Some camera tripod socket threads are plastic. The mounting
tray bolt is metal. Do not cross thread or over tighten as you
may damage the camera tripod socket threads.
2. Pull out on each housing control until it stops. This will get the
controls out of the way for installing the camera.
Flash
Mode
Pop-Up Flash
Macro/
Manual
Focus
Lens Port
Lid
Snap
Base
Shutter
Release
Mode
Omni
Movie
Selector
Set
ISO Lid
Menu
Snap
Display
2
Push Forward
Lift
O' Ring
Lid
Hook
Housing Back
Mounting
Tray Mounting
Bolt
4
Quick Relea
Button
Rubber
Handles
Tray
Lid Snap Lock
