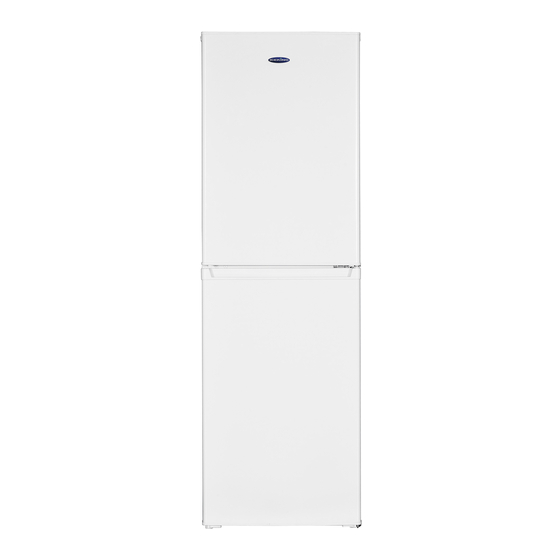

- Page 1 Installation and Operating Manual Static Fridge Freezer - White IK1750EW Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this ICEKING appliance. Your appliance has been designed to give years of trouble- free use provided it is installed, maintained and used according to the manufacturers instructions. Please read these instructions carefully before installing or using your appliance for the first time and keep them in a safe place for future reference.
- Page 3 CONTENTS: Safety Information Safety Advice Installation Reversing The Door Description Of The Appliance Operating The Appliance Troubleshooting Maintenance Special For New European standard Guarantee Information WEEE Information...
-
Page 4: Safety Information
Safety Information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture. WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.
- Page 6 Power cord must not be lengthened. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire. Make sure that you can the mains plug of the appliance.
- Page 7 Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
- Page 8 If electricity goes off, don’t open the door(s); Don’t open the door(s) frequently; Don’t keep the door(s) open for too long a time; Don’t set the thermostat on exceeding cold temperatures; All accessories, such as drawers, shelves and balconies, should be kept there for lower energy consumption.
-
Page 9: Safety Advice
Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. If this appliance is to replace an old refrigerator, as a safety measure remove the door/doors before disposal. Your old appliances contain insulation gases and refrigerant that must be disposed of correctly. -
Page 10: Installation
Installation IMPORTANT! This appliance must be left to stand in an upright position for at least 4 hours before being switched on for the first time. y This appliance has been designed for Domestic Use Only. Remove all packaging and securing tape from the appliance. - Page 11 Space Requirement Keep enough space to allow the door to open. Keep at least a 50mm gap at both sides and above when up against a solid wall/unit. 1730 D min=50 E min=50 F min=50 1130 135° Levelling The Unit To do this, adjust the two levelling feet in the front of the unit.
-
Page 12: Reversing The Door
Reversing The Door Tools required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner. 1. . Remove four screws in top cover and then lift i 2. . Unscrew top hinge and then remove upper do and place it on a soft pad to avoid scratching. unscrew 3. - Page 13 5. . Move the hinge hole covers from left side right side. 6. Unscrew bottom hinge. Then remove the Note: remove this screw if it presents. adjustable feet from both sides 7. . Unscrew and remove the bottom hinge pin, turn the bracket over and replace i Screw Unscrew 8.
- Page 14 9. Make the middle hinge reverse the direction180oC then transfer it to the left property position. Place the middle hinge pin in the upper hole of the lower door, then tighten the bolts. 10. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge.
-
Page 15: Description Of The Appliance
Description of the Appliance Control knob and Light Glass Shelves Balconies Crisper Cover Crisper Freezer Drawers Leveling Feet (Picture shown for indicative purposes only, model supplied may differ). -
Page 16: Operating The Appliance
Operating the Appliance • Set the thermostat control to the required setting as detailed below. • Leave the appliance for approximately 4 hours for the correct temperature to be reached. Temperature Control. • Plug in your appliance. The internal temperature is controlled by a thermostat. - Page 17 Temperature Setting Recommendation Environment Temperature Freezer Compartment Fridge Compartment Summer Set on 2-4 Normal Set on 3 Winter Set on 4-6 Impact on Food Storage • Under recommended setting, the best storage time of fridge is no more than 3 days.
-
Page 18: Daily Use
Daily Use Helpful hints and tips Hints for freezing To help you make the most of the freezing process, here are some important hints: • the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;... -
Page 19: Hints For Fresh Food Refrigeration
Hints for fresh food refrigeration To obtain the best performance: • do not store warm food or evaporating liquids in the refrigerator; • do cover or wrap the food, particularly if it has a strong flavour; • meat (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer;... - Page 20 Position different food in different compartments according to be below table. Refrigeration Compartment Type of food Foods with natural preservatives, such as · Door or balconies of fridge jams, juices, drinks, condiments. compartment Do not store perishable foods. · Fruits, herbs and vegetables should be ·...
-
Page 21: Troubleshooting
Troubleshooting Caution! Before shooting any trouble, disconnect the power supply. Only a qualified electrician of competent person must do the trouble shooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible Cause Solution Mains plug is not plugged in or is... -
Page 22: Maintenance
Maintenance Maintenance Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. Internal Cleaning Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol. - Page 23 Special for new European standard The ordered parts in the following table can be acquired from customer services. Provided By Ordered Parted Minimum Time Required For provision. Professional maintenance At least 7 years after the last model is Thermostats personnel launched on the market Professional maintenance At least 7 years after the last model is...
- Page 24 THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS Your new ICEKING appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that any claim is accompanied by evidence of the model reference,...
- Page 25 Cosmetic parts such as, but not exclusively, shelves, drawers, door balconies. • Repair costs incurred that have not been authorised by Iceking and/or carried out by a non-approved Iceking engineer. Insurance Any guarantee provided with this product does not cover loss of fridge/freezer content.
-
Page 26: Weee Information
WEEE Information Important Note: This appliance is marked according to the European directive 2002/96/ EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. - Page 28 Iceking: Henry John House , Northway Industrial Estate , Northway Lane , Ashchurch Tewkesb ury , Gloucestershire , GL20 8JH T: 0330 025 0179 E: enquiries@ice-king.co.uk W: www.ice-king.co.uk...
