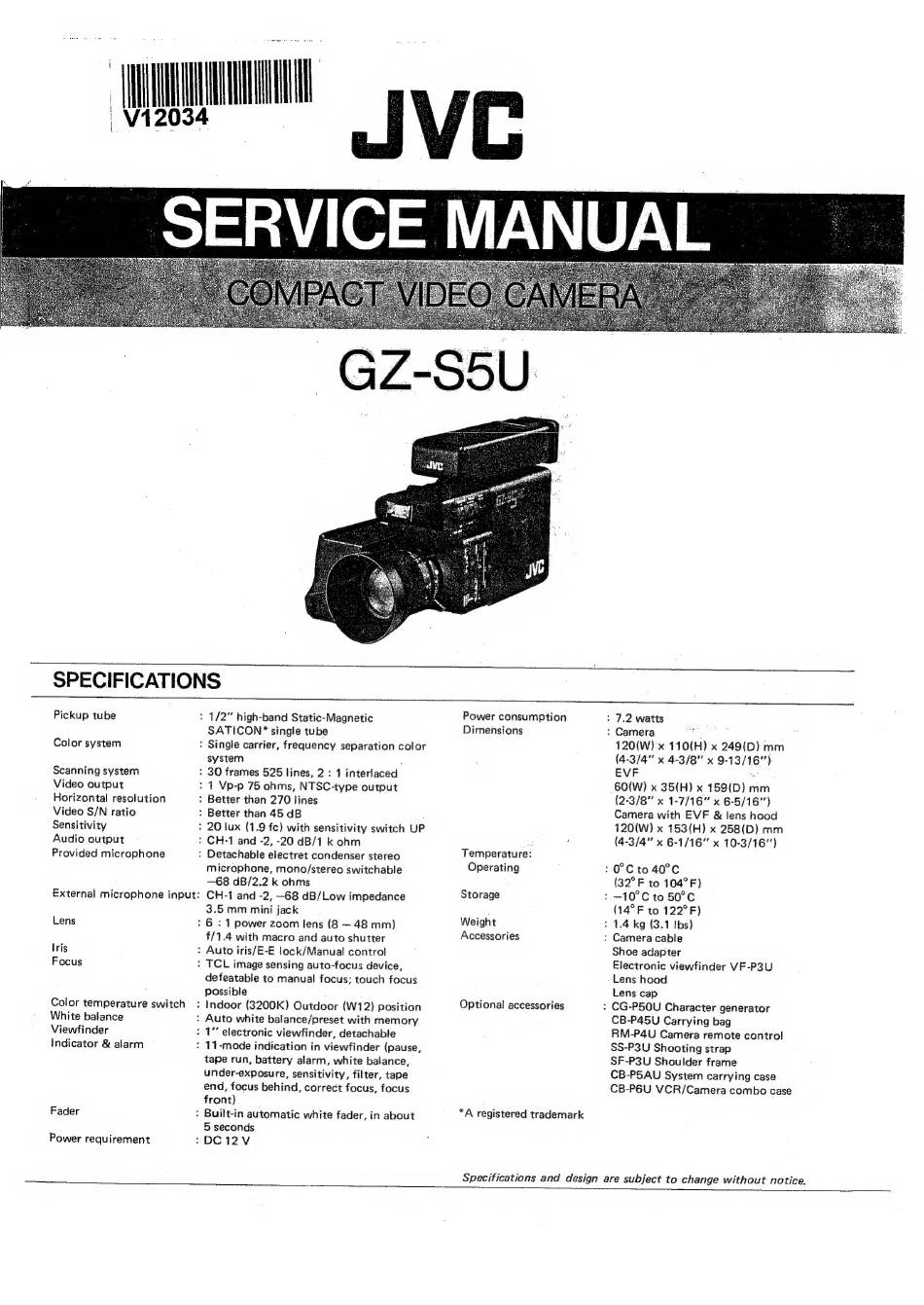

JVC GZ-S5U Service Manual

JVC
SPECIFICATIONS
Pickup tube
Color system
Scanning system
Video output
Horizontal resolution
Video S/N ratio
Sensitivity
Audio output
Provided microphone
External microphone input:
Lens
Iris
Focus
Color temperature switch
White balance
Viewfinder
Indicator & alarm
Fader
Power requirement
: 1/2" high-band Static-Magnetic
: 6 : 1 power zoom lens (8 — 48 mm)
+ Indoor (3200K) Outdoor (W12) position
: Auto white balance/preset with memory
: 1" electronic viewfinder, detachable
: 11-mode indication in viewfinder (pause,
: Built-in automatic white fader, in about
Power consumption
SATICON* single tube Dimensions
: Single carrier, frequency separation color
system
: 30 frames 525 tines, 2 : 1 interlaced
> 1 Vp-p 75 ohms, NTSC-type output
: Better than 270 lines
: Better than 45 dB
: 20 lux (1.9 fc) with sensitivity switch UP
> CH-1 and -2, -20 dB/1 k ohm
'
: Detachable electret condenser stereo Temperature:
—68 dB/2.2 k ohms
CH-1 and -2, -68 dB/Low impedance
3.5 mm mini jack
Storage
Weight
: Auto iris/E-E lock/Manual control
: TCL image sensing auto-focus device,
defeatable to manual focus; touch focus
tape run, battery alarm, white balance,
under-exposure, sensitivity, filter, tape
end, focus behind, correct focus, focus
front)
*A registered trademark
5 seconds
:DC1i2V
: 7.2 watts
: Camera
120(W)'x 110(H) x 249(D) mm
(4-3/4" x 4-3/8" x 9-13/16")
EVF :
60(W) x 35(H) x 159(D) mm
(2-3/8" x 1-7/16" x 6-5/16")
Camera with EVF & lens hood
120(W) x 153(H) x 258(D) mm
(4-3/4" x 6-1/16" x 10-3/16")
: OC to 40°C
(32°F to 104°F)
> -10°C to 50°C
(14°F to 122°F)
> 1.4 kg (3.1 Ibs)
: Camera cable
Shoe adapter
Electronic viewfinder VF-P3U
Lens hood
Lens cap
: CG-P50U Character generator
CB-P45U Carrying bag
RM-P4U Camera remote control
SS-P3U Shooting strap
SF-P3U Shoulder frame
CB-P5AU System carrying case
CB-P6U VCR/Camera combo case
