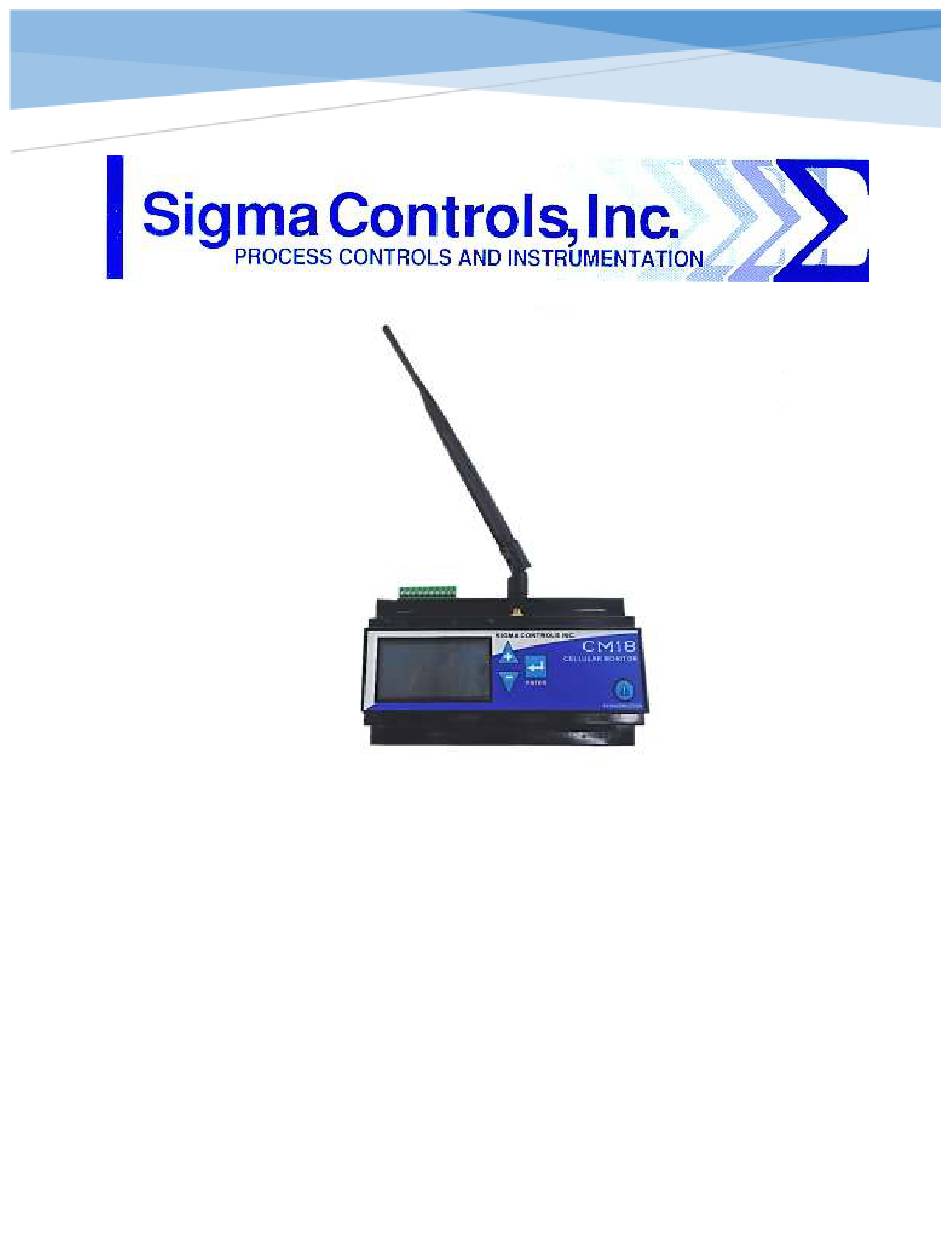

CM18 CELLULAR MONITOR
Version 4.3
MODEL CM18-DLR
THE CM18 SMS MESSENGER PROVIDES CONTINUOUS
MONITORING FROM VARIOUS INPUTS
VISIT OUR WEBSITE AT SIGMACONTROLS.COM
CM18 MANUAL 061623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sigma Controls CM18

  • Page 1 CM18 CELLULAR MONITOR Version 4.3 MODEL CM18-DLR THE CM18 SMS MESSENGER PROVIDES CONTINUOUS MONITORING FROM VARIOUS INPUTS VISIT OUR WEBSITE AT SIGMACONTROLS.COM CM18 MANUAL 061623...
  • Page 2 TABLE OF CONTENTS Specifications and Product Overview . 3-4 Sigma Drawings..5-6-7 Wiring Connections Programming .. 10-15 Model Numbering Quick Setup . .17-20 Warranty . .21...
  • Page 3: Product Overview

    It will contact you every day with a report if you wish. Text to it “STOP” while an alarm is active to clear it. Alternatively, while the CM18 is in alarm and you receive a text message, you can respond with a text saying “HALT” that will stop the CM18 from texting anyone else.
  • Page 4: Specifications

    SPECIFICATIONS Inputs (8 ea.) Digital, Dry Contact or +DC or -DC Outputs (1 ea.) Switching Voltage Max DC/Peak AC Resist. Volts 200 Switching Current Max DC/Peak AC Resist. Amps 0.5 Carry Current Max DC/Peak AC Resist. Amps 1.0 Contact Rating Max DC/Peak AC Resist. Watts 10 Display LCD, 20 Character X 4 line display 4 User Keys...
  • Page 5 MECHANICAL...
  • Page 6 TYPICAL WIRING DRAWING...
  • Page 7 MYRIAD DPC TO CM18 DRAWING...
  • Page 8: Wiring Connections

    WIRING CONNECTIONS Connecting a sinked input. Digital Inputs connections The inputs are grouped together in two sets. CM 1 is the common for 1-4. CM 2 is the common for 5-8. They must be used with DC voltage only, 5VDC -24VDC. The polarity can be either direction, as long as there is a difference of potential between the DI and the common, it will register as a closure.
  • Page 9 CM18 SMS MESSENGER TEXT CODES V5. CODE FOLLOWED BY = DEFAULT READ LOCATION NAME N/A CHANGE LOCATION NAME SITE MY LOCATION READ ALARM 1’S NAME CHANGE ALARM 1’S NAME DI01 ALARM 1 READ ALARM 2’S NAME CHANGE ALARM 2’S NAME...
  • Page 10 PROGRAMING...
  • Page 11 PROGRAMING CONTINUED...
  • Page 12 ■ indicates a closed input. RELAY/SIGNAL STATUS Starting with the top line, we show the cell carrier being used by the CM18, followed by the units phone number. The third line includes the date & time, which is updated from the cell towers.
  • Page 13 ENABLE/DISABLE ALARMS Typically recommended for setup of CM18. INPUT SETUP The second line shows incoming power of the CM18 along with the battery level in %. The Display Name third line shows the status of the battery. PASSWORD Each input needs to be named. When activated, this language will be sent to you, differentiating the various inputs.
  • Page 14: System Setup

    Input Changed Will send text message anytime the input changes state. Report Only Inputs state will be included in the CM18’s daily report. c for closed, o for open. Defaulted at 5 seconds. This sets the delay Example: oInput1, cinput2, input not used.
  • Page 15 Power Fail Alarm communicating with the CM18. It is highly recommended that this setting be changed to allow anyone to text the CM18 when setting up yours for the first time. Turn off System? This screen sets the amount of time the CM18 will be without its main power source before going into an alarm.
  • Page 16 Input disabled Report only Alarm Name This screen views the current name of the seal leak alarms. Change it by texting the CM18 LEK1= Followed by whatever you would like to name Alarm Delay This will set the time delay before a text is sent...
  • Page 17 FCC info Contains FCC ID: MCQ-XB3M1 Contains FCC ID: XPY2AGQN4NNN The enclosed device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 MB= MODBUS Example. CM18-DLR-DR-PL-8-1-INT-ATT-NA is the standard dialer MODBUS® The CM18 does not have Modbus as a standard feature. It is possible to add it. Extra hardware, software, customization and cost would be involved. QUICK SETUP GUIDE GENERAL NOTE: Navigation of the CM18's display is by way of the UP, DOWN and ENTER buttons.
  • Page 19 If you send the CM18 the message "PH01?" it will send the message: PH01=2152573412 to you. you can do this to all 8 stored phone number locations in the CM18 (PH01,PH02...PH08.) A message in the form "PH02=" without a phone number will erase the phone number stored in that spot.
  • Page 20 Note that the CM18 changes all lower case letters to upper case, and doesn't care if the message is in upper or lower or mixed case. Step 12:At this point, if you navigate to the system setup entry, and change the "answer any caller"...
  • Page 21 P) When you are finished, navigate to the "EXIT" choice on the MAIN SETUP MENU, and press ENTER, the display will go back to showing the CM18's phone number and the date & time as well as the received signal dB level of the cellular connection.
  • Page 22: Warranty

    WARRANTY All Sigma Controls, Inc. products are warranted to be free from defective materials and workmanship for one (1) year from date of shipment. Sigma reserves the right to repair or replace at its option any product found to be defective.
