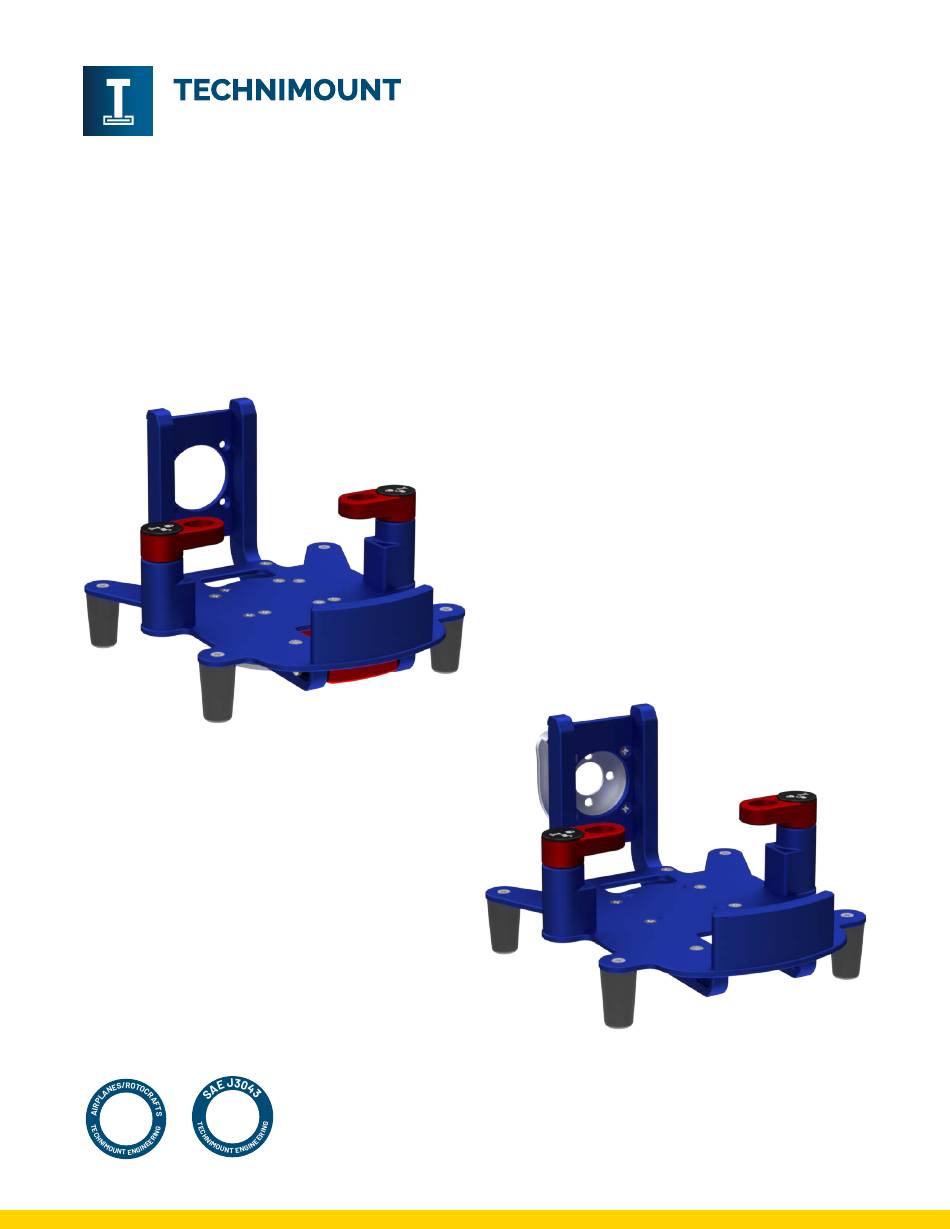

- Page 1 ® ® BRACKET PRO SERIE 191 – FL USER MANUAL SAFETY AND FLEXIBILITY TESTED 14 CFR WHERE IT MATTERS MOST...
-
Page 2: Copyrights
Copyright 2025 Technimount E.M.S. Holding Inc. is an affiliated company of Technologies CGC Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, backed-up on a retrieval system, translated in any language, modified in any form or by any means, without the written permission of Technimount or its affiliate companies. -
Page 3: Table Of Contents
Annex I EMS and clinical personnel Skills Assessment ..................23 Annex II Unpack the Bracket Pro Serie 191 – FL ....................25 Annex III Maintenance ............................27 ..Maintenance Frequency ..............................28 © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page iii of iv... - Page 4 Bracket Pro Serie 191 – FL User Manual ® ..Required Tools ..................................28 ..Tested Cleaning Solutions ..............................28 ..Maintenance Plan ................................29 ..Illustrated Inspection Points ..............................32 Annex IV Replacement Parts/Kits ........................33 © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page iv of iv...
-
Page 5: General Mentions And Considerations
(or equivalent) with the unpacking, assembling (when indicated) and maintenance of the Technimount product. It also includes specific user-related information to assist trained EMS and clinical personnel with effectively operating the support bracket. -
Page 6: Warranties
If the end user uses a Technimount product following a single emergency landing or a single crash impact, it is at the end user’s own risk and Technimount will not be held liable. -
Page 7: Claims
Claims are limited in amount to the actual replacement cost. If the claim has not been received by Technimount within the fifteen (15) day period following the date of delivery, or the damage was not noted on the delivery receipt at the time of receipt, the customer will be responsible for the full payment of the original invoice. -
Page 8: Return Of Material Authorization (Rma)
Upon reception of the returned merchandise, a thorough inspection will be performed. If the merchandise is compliant with the return policy or it is found that the product is defective, Technimount will take corrective actions and close the claim. If, however, it is found that the product is not defective, but rather misused or abused, the product will not be covered by the warranty. -
Page 9: General Safety Guidelines
EMS and clinical personnel, or damage to the product. This includes the special care necessary for the safe and effective use of the Technimount product to avoid damage that may occur from use or misuse. The terms "Warning" and "Caution" herein carry special meaning and should be carefully reviewed. -
Page 10: Labels
® 2.2. Labels Labelling on the surface of the Technimount product, quickly identify potential risks and provides information to the user. A manufacturing label, including the serial number and safe working load (Figure 1), can be seen on the Technimount product. -
Page 11: Safety Measures
EMS and clinical personnel. Refer to the « Technical Specifications » on page 12 for compatibilities. - Improper use of the Technimount product may damage it or cause injury to the patients or EMS and clinical personnel. -
Page 12: Technical Specifications
- Lavo 12, 10 000 ppm Sodium Hypochlorite ® Cleaning Solutions - TNT-100, 5% Quaternary Ammonium Compound - Spectro-Sept, 5% Ethyl Alcohol - Spectrol, 5% EDTA salt Options © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 12 of 34... -
Page 13: Bracket Pro Serie 191 - Fl Orientation Diagrams
Figure 2: Orientation diagram of the Bracket Pro Serie 191 – FL with a bottom micro disc Front of the support bracket Back of the support bracket Figure 3: Orientation diagram of the Bracket Pro Serie 191 – FL with a back anti-rotation micro disc © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 13 of 34... -
Page 14: Bracket Pro Serie 191 - Fl Illustrated Parts
Figure 4: Bracket Pro Serie 191 – FL components with a bottom micro disc 1. Rotary lock (2X) 3. Back anti-rotation micro disc 2. Feet (4X) Figure 5: Bracket Pro Serie 191 – FL components with a back anti-rotation micro disc © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 14 of 34... - Page 15 Figure 6: Bracket Pro Serie 191 – FL with a bottom micro disc with medical device Figure 7: Bracket Pro Serie 191 – FL with a back anti-rotation micro disc with medical device © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 15 of 34...
-
Page 16: Operate The Bracket Pro Serie 191 - Fl
A), turn the left rotary lock clockwise and the right rotary lock counterclockwise a quarter of a turn to the unlocked position (Figure 8 B). Figure 8: Unlock the support bracket with a bottom micro disc (top view) © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 16 of 34... - Page 17 Figure 10: Locking the support bracket with a bottom micro disc (top view) The installation of the medical device in the Bracket Pro Serie 191 – FL is complete. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 17 of 34...
-
Page 18: Remove The Medical Device From The Bracket Pro Serie 191 - Fl
Figure 12: Removing the medical device from the support bracket with a bottom micro disc (top view) The removal of the medical device from the Bracket Pro Serie 191 – FL is complete. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 18 of 34... -
Page 19: Install The Bracket Pro Serie 191 - Fl In The Micro Base
Figure 13: Installing the support bracket with a bottom micro disc in the Micro Base Figure 14: Installing the support bracket with a back anti-rotation micro disc in the Micro Base © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 19 of 34... -
Page 20: Remove The Bracket Pro Serie 191 - Fl From The Micro Base
Micro Base (Figure 16), then set it aside on a flat and clean surface or store as per your internal protocols. Figure 16: Removing the support bracket with a bottom micro disc from the Micro Base © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 20 of 34... - Page 21 Figure 17: Removing the support bracket with a back anti-rotation micro disc from the Micro Base The removal of the Bracket Pro Serie 191 – FL from the Micro Base is complete. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 21 of 34...
- Page 22 Bracket Pro Serie 191 – FL User Manual ® © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 22 of 34...
-
Page 23: Annex I Ems And Clinical Personnel Skills Assessment
- Able to operate the support bracket. - Has practiced safely operating the support bracket, has perfected the manipulations and has acquired the required skill level to safely use with patient. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 23 of 34... - Page 24 Bracket Pro Serie 191 – FL User Manual ® © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 24 of 34...
-
Page 25: Annex Ii Unpack The Bracket Pro Serie 191 - Fl
Identify all the components and hardware included for the installation when applicable, then set aside. Inspect the items for signs of damage. Take pictures and report them promptly when applicable. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 25 of 34... - Page 26 Bracket Pro Serie 191 – FL User Manual ® © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 26 of 34...
-
Page 27: Annex Iii Maintenance
- Use only Technimount parts, maintenance procedures, cleaning solutions and lubricants, as described herein. Using unapproved modified parts or procedures for the maintenance of the Technimount product may cause the system to be unstable and could cause injury to the patients or EMS and clinical personnel and void the product warranty. -
Page 28: Maintenance Frequency
- Oxivir, 5% Hydrogen Peroxide with Peracetic Acid (AHP) - Lavo 12, 10 000 ppm Sodium Hypochlorite - TNT-100, 5% Quaternary Ammonium Compound - Spectro-Sept, 5% Ethyl Alcohol - Spectrol, 5% EDTA salt © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 28 of 34... -
Page 29: Maintenance Plan
The rotary locks should turn in either direction without any resistance. Micro Base Refer to the user documentation of the Micro Base. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 29 of 34... - Page 30 Thoroughly rinse the solution with a clean cloth dampened with lukewarm water, then dry all the components using a clean cloth before returning to service. © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 30 of 34...
- Page 31 Bracket Pro Serie 191 – FL User Manual ® Comments and observations following the Safety Checks and Condition-Based Maintenance: Maintenance plan completed on (dd/mm/yyyy): Maintenance plan completed by: © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 31 of 34...
-
Page 32: Illustrated Inspection Points
Figure 18: Bracket Pro Serie 191 – FL components with a bottom micro disc 1. Rotary lock (2X) 3. Back anti-rotation micro disc 2. Feet (4X) Figure 19: Bracket Pro Serie 191 – FL components with a back anti-rotation micro disc © 2025 Technimount E.M.S. Holding Inc. UM-BP191FL-202504EN-01 | Page 32 of 34... -
Page 33: Annex Iv Replacement Parts/Kits
Bracket Pro Serie 191 – FL User Manual ® Annex IV Replacement Parts/Kits Technimount reserves the right to change part numbers and products without notice. Please contact Customer Service at customerservice@technimount.com to ensure product options and availability, or Technical Support at techsupport@technimount.com for replacement parts/kits or repair related issues. - Page 34 ® SAFETY AND FLEXIBILITY WHERE IT MATTERS MOST © 2025 Technimount E.M.S. Holding Inc. | technimount.com...
