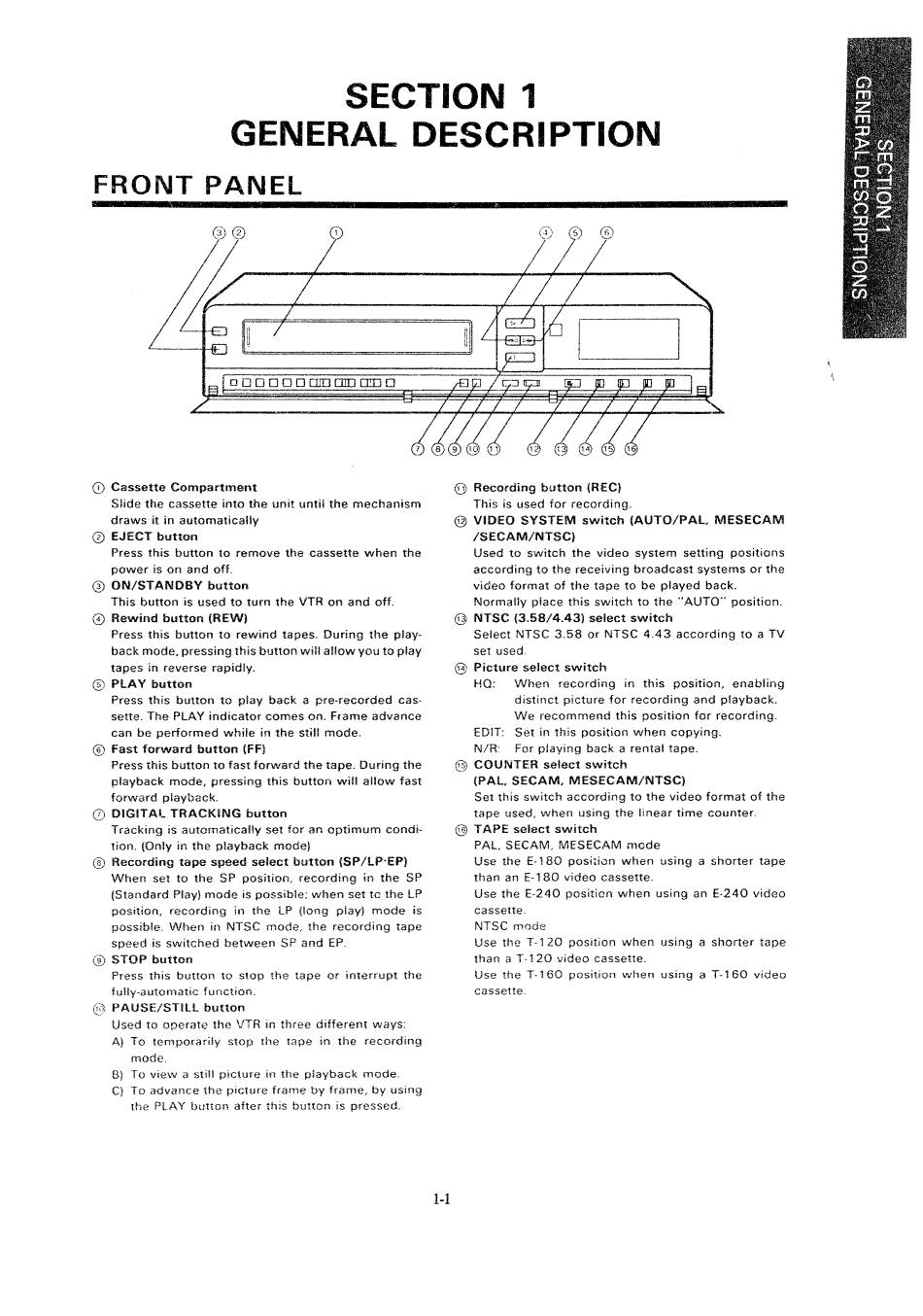

SECTION 1
GENERAL DESCRIPTION
@ ®
a) Cassette Compartment
Slide the cassette into the unit until the mechanism
draws it in automatically
@) EJECT button
Press this button to remove the cassette when
the
power is on and off.
@ ON/STANDBY
button
This button is used to turn the VTR on and off.
Rewind
button (REW)}
Press this button to rewind tapes. During the play-
back mode, pressing this button will allow you to play
tapes in reverse rapidly.
PLAY
button
Press this button to play back a pre-recorded
cas-
sette. The PLAY indicator comes on. Frame advance
can be performed while in the still mode.
Fast forward button (FF}
Press this button to fast forward the tape. During the
playback mode, pressing this button will allow fast
forward playback.
DIGITAL TRACKING
button
Tracking is automatically set for an optimum condi-
tion. (Only in the playback mode}
Recording tape speed select button (SP/LP-EP)
When
set to the SP position, recording
in the SP
{Standard Play} mode is possible: when set tc the LP
position,
recording
in the LP (long
play) mode
is
possible. When
in NTSC
mode, the recording tape
speed is switched between
SP and EP.
(3) STOP button
Press this button
to stop the tape or interrupt the
fully-automatic function.
G3 PAUSE/STILL
button
Used to operate the VTR in three different ways:
A} To temporarily
stop
the tape
in the
recording
mode.
B}) To view a still picture in the playback mode.
C} Fo advance the picture frame by frame, by using
the PLAY button after this button is pressed.
®
i-1
Q
@
G
ay Bs
ere
fe)
|=
ei
fe) |
aa!
ws
aN
Recording button (REC)
This is used for recording.
VIDEO
SYSTEM
switch (AUTO/PAL,
MESECAM
/SECAM/NTSC)
Used to switch the video system
setting positions
according to the receiving broadcast systems or the
video format of the tape to be played back.
Normally place this switch to the "AUTO"
position.
NTSC (3.58/4.43) select switch
Select NTSC
3.58 or NTSC 4.43 according to a TV
set used.
Picture select switch
HO:
When
recording
in this
position,
enabling
distinct picture for recording and playback.
We recommend
this position for recording.
EDIT:
Setin this position when copying.
N/R:
For playing back a rental tape.
COUNTER
select switch
(PAL, SECAM,
MESECAM/NTSC)
Set this switch according to the video format of the
tape used, when
using the linear time counter.
JAPE select switch
PAL, SECAM,
MESECAM
mode
Use the E-180
position when
using a shorter tape
than an E-180 video cassette.
Use the E-240 position when
using an E-240 video
cassette.
NTSC
mode
Use the T-120
position when
using a shorter tape
than a T-120 video cassette.
Use the T-160
position when
using a T-160
video
cassette.
