การรั บ ประกั น สิ น ค า
1170831-X2-D
LIMITED WARRANTY
Kohler (Thailand) Public Company Limited warrants to the original
products, which are purchased from authorized distributors and dealers
within Kingdom of Thailand only, to be free of defects in material and
workmanship.
Within the below mentioned periods from the date of purchase,
Kohler(Thailand) Public Company Limited will at its election, repair,
replace or make appropriate adjustment where company's inspection
disclose any such defect occurring in normal usage and maintenance but
is not responsible for labor charges, removal charges, installation, or
other incidental or consequential costs. In no event shall the liability of
Kohler(Thailand) Public Company Limited exceed the purchase price
of the product. This warranty applies only to Kohler Faucets installed in
Thailand.
• Ceramic Valve(leak/drip)
- Lifetime Limited Warranty* for residential use
- and Five (5) Years for commercial use
• Finish
Five(5) Years
• Fitting
Five(5) Years
• Automatic faucet
One(1) Year
• Hygiene spray(leak/drip
Five(5) Years for selected models
from hygiene spray body)
only
• Shower
Five(5) Years
• Bathroom accessories
Five(5) Years
This limited warranty DOES NOT COVER the defect or damage caused by
accident, natural disasters such as fire, flood, or earthquake, misuse or
abuse of products. Improper care and cleaning will avoid the warranty.
Consumers are responsible for the cost of service parts and service fee
for such cases.
To ensure continuous product quality and performance, as well as
product durability and lifetime, without any damage to the product,
consumers should purchase and use only genuine service parts and
after-sales services from Kohler (Thailand) Public Company Limited or
company's authorized service centers, distributors, or dealers only.
*KOHLER® Faucet Lifetime Limited Warranty
Kohler (Thailand) warrants its faucets manufactured after January 1,
1997, to be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his or her home. If the faucet should
leak or drip during normal use, Kohler (Thailand) will, free of charge;
replace the new cartridge necessary to put the faucet in good working
condition.
Kohler (Thailand) also warrants all other aspects of the faucet or
accessories ("Faucet")**to be free of defects in material and workmanship
during normal residential use for as long as the original consumer
purchaser owns his or her home. If a defect is found in normal residential
use, Kohler (Thailand) will, at its election, repair, provide a replacement
part or product, or make appropriate adjustment. Damage to a product
caused by accident, misuse, or abuse is not covered by this warranty.
Improper care and cleaning will also void the warranty.
Proof of purchase (original sales receipt) must be provided to
Kohler(Thailand) with all warranty claims. Kohler (Thailand) is not
responsible for labor charges, installation, or other incidental or
consequential costs. In no event shall the liability of Kohler (Thailand)
exceed the purchase price of the Faucet.
Important: Never use cleaners containing abrasive cleansers, ammonia,
bleach, acids, waxes, alcohol, solvents or other products not
recommended for chrome. This will void the warranty.
To obtain warranty service, please contact your dealers or contact the
KOHLER (Thailand) Call Center, together with proof of purchase at;
Call Center
KOHLER (Thailand) Public Company Limited
16th Floor, Jasmine City Building
2 Soi Sukhumvit 23, Sukhumvit Road,
Wattana, Bangkok 10110
Tel: 02204-6222
Email: callcenterthailand@kohler.com
COPYRIGHT ©2018 BY KOHLER (THAILAND) PUBLIC COMPANY
LIMITED

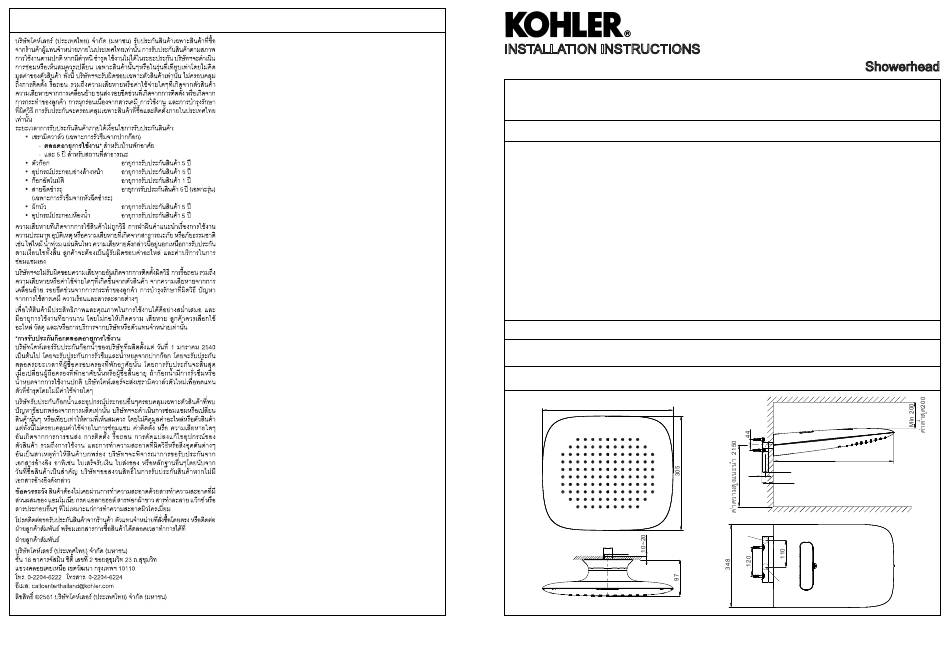

INSTALLATION INSTRUCTIONS
ข อ แนะนํ า การติ ด ตั ้ ง
ก อ นเริ ่ ม การติ ด ตั ้ ง
ข อ มู ล ในคู  ม ื อ นี ้ ม าจากข อ มู ล ผลิ ต ภั ณ ฑ ล  า สุ ด ที ่ ม ี อ ยู  ใ นช ว งเวลา
การจั ด พิ ม พ บ ริ ษ ั ท ฯขอสงวนสิ ท ธิ ์ ใ นการเปลี ่ ย นแปลงข อ มู ล
ผลิ ต ภั ณ ฑ บรรจุ ภ ั ณ ฑ ท ี ่ ม ี อ ยู  โ ดยมิ ต  อ งแจ ง ให ท ราบล ว งหน า
คู  ม ื อ นี ้ ม ี ข  อ มู ล สำคั ญ โปรดมอบเอกสารให ก ั บ เจ า ของผลิ ต ภั ณ ฑ
ข อ สั ง เกต:
1. ป ด วาล ว นํ ้ า ทำความสะอาดท อ นํ ้ า ดี เพื ่ อ ขจั ด เศษสิ ่ ง สกปรก
ต า งๆ
2. แนะนำค า แรงดั น น้ ำ ที ่ เ หมาะสม: 2 ถึ ง 5 บาร
3. แรงดั น น้ ำ สู ง สุ ด สำหรั บ หั ว ฝ ก บั ว คื อ 0.5 เมกะปาสคาล (5 บาร )
หากมากกว า 0.5 เมกะปาสคาล ต อ งใช ต ั ว ลดแรงดั น น้ ำ
อุ ณ หภู ม ิ น ้ ำ สู ง สุ ด ที ่
60°C
โปรดเก็ บ ฝ ก บั ว ให ห  า งจาก
เครื ่ อ งทำความร อ นซึ ่ ง อาจทำให ฝ  ก บั ว เสี ย หายหรื อ ผู  ใ ช ง าน
ได ร ั บ บาดเจ็ บ
มาตรฐานผลิ ต ภั ณ ฑ
สุ ข ภั ณ ฑ ผ ลิ ต ภายใต ม าตรฐานผลิ ต ภั ณ  อ ุ ต สาหกรรม (มอก.)
ระยะการติ ด ตั ้ ง
*ขนาดระยะแสดงค า โ ยประมาณ
*หน ว ย: มม.
Ø25
Finished Wall
ผนั ง
37268X
4
1170831-X2-D
หั ว ฝ ก บั ว ก า นแข็ ง รุ  น แอร ฟ อยล
37268X
หั ว ฝ ก บั ว ก า นแข็ ง ติ ด เพดาน
37269X
หั ว ฝ ก บั ว ก า นแข็ ง แบบติ ด ผนั ง
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Recommended working pressures: 2~5bar.
3. The highest working pressure for showerhead is 0.5
MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure
reducer is needed. The highest water and
environment temperature is 60°C. Please keep
showerhead away from heater, or it may become
damaged and cause injury to the user.
STANDARD APPLICABLE
Special model meets or exceeds the following at date
of manufacture: TIS
ROUGH-IN DIMENSIONS
Finished Wall
350
ผนั ง
G1/2˝
12
48~58
G1/2˝
Rain
ฝ ก บั ว ก า นแข็ ง
G1/2˝
G1/2˝
Waterfall
ม า นน้ ำ ตก
AIRFOIL
Showerhead
506
Finished Floor
พื ้ น
37269X
1
