Summary of Contents for Milwaukee M12 CLL4P

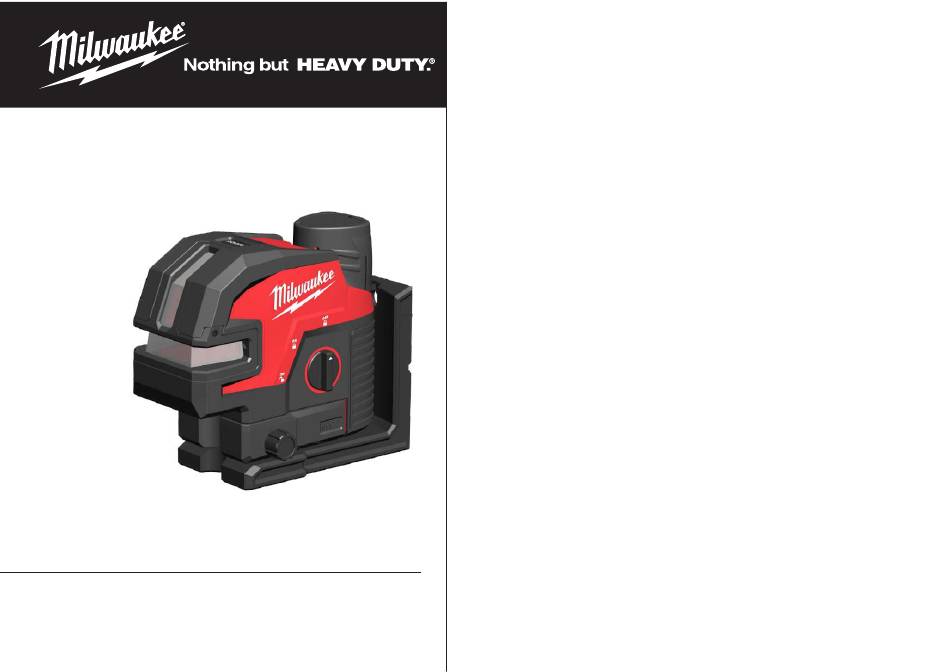

  • Page 1 M12 CLL4P...

  • Page 2: Table Of Contents

    WARNING: CONTENTS Avoid direct eye exposure. The laser beam can cause severe eye damage and/or blindness. Important safety instructions ........................1 Do not stare into the laser beam or direct it towards other people unnecessarily. Maintenance ............................... 2 Caution! The laser emitting product may be behind you in some applications. Be careful when facing the product. Technical data.............................

  • Page 3: Maintenance

    9 hrs (normal mode) / 16 hrs (power save mode) with M12 3.0 Ah Battery Do not use this product in any other way as stated for normal use. Tripod mount 1/4" / 5/8" thread Suitable detector Milwaukee LLD50, LRD100 ENGLISH...

  • Page 4: Overview

    OVERVIEW LED indicator fuel gauge Mode button Short press: choose between beams: Power save indicator - horizontal level line + horizontal points - vertical plumb line + plumb points - perpendicular level + plumb points + horizontal points M12 Battery Long press: switch normal mode / power save mode Marking for the horizontal beam Vertical laser beam &...

  • Page 5: Accessory

    ACCESSORY CHANGE BATTERIES Not included in standard equipment, available as an accessory. Change the batteries when the laser beams begin to dim. If the cross laser is not in use for a long period of time, remove the batteries from the battery compartment.

  • Page 6: Fuel Gauge

    FUEL GAUGE TRACK CLIP Fix the track clip with screws to a pillar. Or clamp the track clip to ceiling channels, After switch on the laser the fuel gauge will display the battery life racks..66-100% 45-65% 18-44% 8-17% <7% >...

  • Page 7: Magnetic Wall Mount

    MAGNETIC WALL MOUNT GREEN TARGET PLATE Use the green target plate to improve visibility of the laser beam in unfavourable conditions and at greater Use the magnetic wall mount to fix the laser to a Or fix it with a screw or nail on a pillar distances.

  • Page 8: Working In Self-Leveling Mode

    WORKING IN SELF-LEVELING MODE In self-leveling mode the cross laser will level itself in a ± 4° range and can project a horizontal beam and horizontal points, a vertical beam line and plumb points or a both beams together with plumb points and horizontal points Choose the beams that you want to work with by pushing the MODE...

  • Page 9: Working In Manual Mode

    WORKING IN MANUAL MODE In manual mode the cross lasers self-leveling mechanism is disabled and the laser lines can be set at any slope required. Choose the beams that you want to work with by pushing operation push button Place the cross laser on a solid flat vibration free surface or on a tripod.

  • Page 10: Plumb Function Detector

    For outdoor work under direct sunlight, or bright conditions and for extended indoor ranges of up to 50 meters / 164 feet, use the Milwaukee detector. Use the plumb function e.g. to transfer reference point for light installation, vents, transfer of heights.

  • Page 11: Accuracy Check

    0,5 m This cross laser left the factory fully calibrated. Milwaukee recommends the user to check the accuracy of 5. Turn the laser 180° towards wall B and mark the center of the cross beams as b1 on the wall.
  • Page 12 CHECKING THE LEVEL ACCURACY OF THE HORIZONTAL BEAM (SIDE TO SIDE INCLINATION) For this check, a free surface of approx. 10 x 10 meters is required. 5. Move the laser level approximately 10 meters away and turn the laser 180° towards wall A and B. 1.
  • Page 13 CHECKING THE LEVEL ACCURACY OF THE VERTICAL BEAM CHECKING PLUMB ACCURACY 0,5 m 0,5 m This procedure requires a room of with 1. Hang an approximately 2 m plumb line on approx. 5m distance between floor and a wall. ceiling. 2.
  • Page 14 SQUARING PROCEDURE 1. Mark a reference (point x) on the floor that 8. Lastly, rotate the laser 180º clockwise is equidistant from each wall in the center around plumb point (x) so that the right of a room. horizontal point is aligned with the previously marked point I.
