Manufacturer:
REMI ELEKTROTECHNIK LTD
Survey 65/1, Valiv Village, Vasai (East),
Palghar-401 208
India

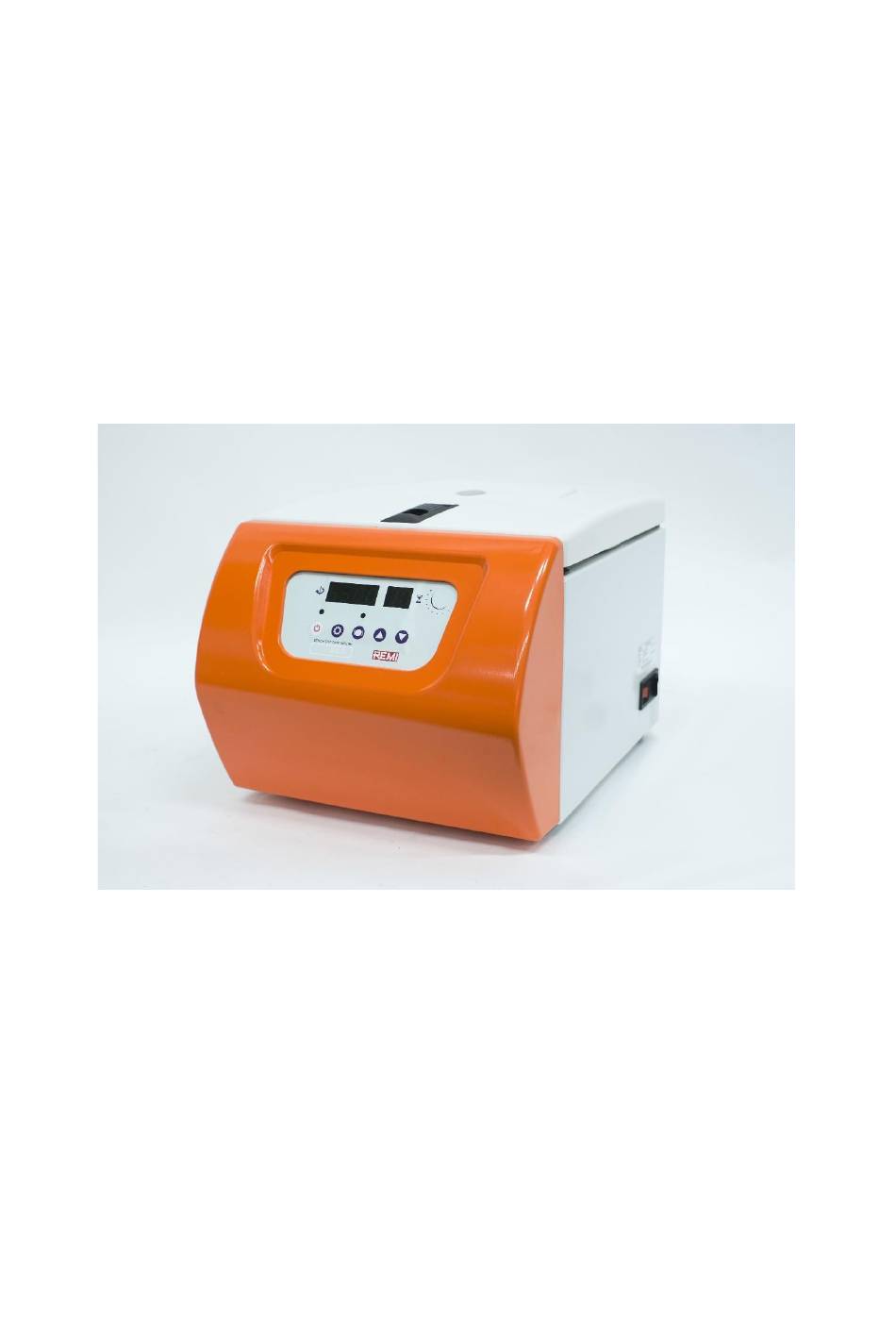

Centrifuge
R-5D
Operation and Maintenance Manual
Translations of the original instructions
Editing by the Authorized
Representative:
Giorgio Bormac s.r.l.
Via della Meccanica, 25
41012 Carpi (MO)
VAT number 04168650366
Tel. +39 059 653274
Email info@giorgiobormac.com
Advertisement
Table of Contents
Related Manuals for REMI ELEKTROTECHNIK R-5D
Summary of Contents for REMI ELEKTROTECHNIK R-5D
- Page 1 Centrifuge R-5D Operation and Maintenance Manual Translations of the original instructions Manufacturer: Editing by the Authorized REMI ELEKTROTECHNIK LTD Representative: Survey 65/1, Valiv Village, Vasai (East), Giorgio Bormac s.r.l. Palghar-401 208 Via della Meccanica, 25 India 41012 Carpi (MO) VAT number 04168650366 Tel.
-
Page 2: Table Of Contents
• Fault Indications: ....................14 9. Cleaning and Maintenance ..................15 • Greasing the motor shaft ..................15 10. Troubleshooting Guide .................... 16 11. Spare parts ......................6 12. Disposal of electronic equipment ................6 UM R-5D ENG rev.0 04.10.2024... -
Page 3: Safety Informations
ATTENTION The instrument must be used according to the instructions in the reference manual. Read the instructions carefully. WARNING This symbol draws attention to possible damage to instruments or instrument parts. UM R-5D ENG rev.0 04.10.2024... -
Page 4: Fundamental Requirements For Safe Use
The owner of the machine must inform users of its safe use at their place of work and manage potential risks and provide the required protective equipment. When using chemicals or solvents, follow the manufacturer's safety data sheets. UM R-5D ENG rev.0 04.10.2024... -
Page 5: General Warnings
Do not exceed the maximum rotor load. Never use cleaning chemicals or detergents that may be corrosive in nature. This could cause damage to the centrifuge. Use a dry cloth to clean the inside of the chamber. UM R-5D ENG rev.0 04.10.2024... -
Page 6: Biological Safety
• Biological safety During operation, the centrifuge can generate particles suspended in the air. Since the R-5D model is not refrigerated centrifuge therefore they do not have a completely sealed chamber. This type of ventilated centrifuge helps to reduce the excess heat created by the friction of the rotor with air in the internal chamber. -
Page 7: Ce Marking Data
3. CE marking data UM R-5D ENG rev.0 04.10.2024... -
Page 8: Guarantee
Power supply 220-240 V - 50 Hz with a current carrying capacity of at least 5 A. o The location of the device is not exposed to direct sunlight. o Do not place the centrifuge near sources of strong electromagnetic radiation. UM R-5D ENG rev.0 04.10.2024... -
Page 9: Technical Specifications
Control Microprocessor-based Noise 53 db External dimensions W x D x H (mm)/ Weight (kg) 320 x 440 x 290 Room access height 25 cm Power Supply / Consumption 220-240 Volt, 50 Hz, 250 W UM R-5D ENG rev.0 04.10.2024... -
Page 10: Special Features
Calibration window 7. Display and Control Panel The picture above shows the front panel of the R-5D display. It consists of two 7-segment displays, 2 LEDs and 5 buttons. • RPM display: This is a 4-digit display showing the actual number of rpm in Run mode (spinning) and the set number of rpm in normal mode. - Page 11 In 'normal mode', pressing the button switches the device to 'CENTRIFUGATION mode'. o In 'Centrifugation' mode, the button is used to stop the process and return to normal mode. o The button has no function in 'Set-up' mode. • SETUP button UM R-5D ENG rev.0 04.10.2024...
-
Page 12: Operation
• Preparing the initial centrifugation o Once removed from the packaging box, the R-5D must be placed on a suitable surface. o Connect the power adapter pin to the unit before connecting it to the power source. Once the power adapter is connected to both sides, turn on the main switch and the switch. -
Page 13: Loading And Balancing The Rotor
Clean the rotor and tubes before use. The R-5D centrifuge is supplied complete with an R-83A 12x15 ml fixed-angle rotor, 12 steel stainless bucket complete with rubber cushion and 15 ml round-bottomed plastic tube (see figure below). -
Page 14: Fault Indications
If any kind of fault occurs during centrifugation, the motor is stopped and a message is displayed on the screen according to the type of fault. The conditions giving rise to these error messages are as follows: Overvoltage - Hv Undervoltage - Lv Overcurrent - ovr.C Communication Error - C.Err UM R-5D ENG rev.0 04.10.2024... -
Page 15: Cleaning And Maintenance
The frequency of these maintenances depends on the frequency of use, working temperature, centrifugal loads etc., so it is recommended to check these parts weekly. Before greasing, it is essential to remove the old grease. UM R-5D ENG rev.0 04.10.2024... -
Page 16: Troubleshooting Guide
Wait for the rotor to stop and use the emergency opening to open the lid. Contact the supplier's technical service. Note: If the problem is not listed in this table or in the manual, please contact GIORGIO BORMAC S.r.l. technical support. UM R-5D ENG rev.0 04.10.2024... -
Page 17: Spare Parts
12. Disposal of electronic equipment This equipment is subject to regulations for electronic devices. Dispose of in accordance with existing local regulations. The illegal disposal of electrical and electronic equipment is punished with an administrative fine. UM R-5D ENG rev.0 04.10.2024...
