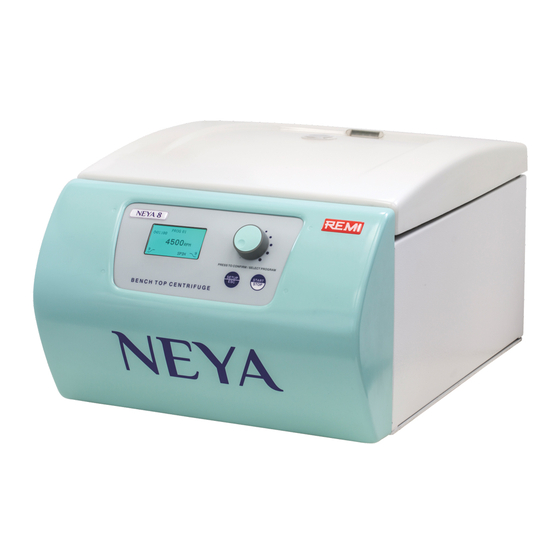

CENTRIFUGE
NEYA 8
NEYA 10R
Manufacturer:
REMI ELEKTROTECHNIK LTD
Survey 65/1, Valiv Village, Vasai (East),
Palghar-401 208
India
Instruction and Maintenance Manual
Extract from the original instructions
NEYA 10
Editing by the Authorized
Representative:
GIORGIO BORMAC s.r.l.
Via della Meccanica, 25 - 41012 Carpi (MO)
Italy
NEYA 16
NEYA 16R
Advertisement
Table of Contents
Related Manuals for REMI ELEKTROTECHNIK NEYA 8
Summary of Contents for REMI ELEKTROTECHNIK NEYA 8

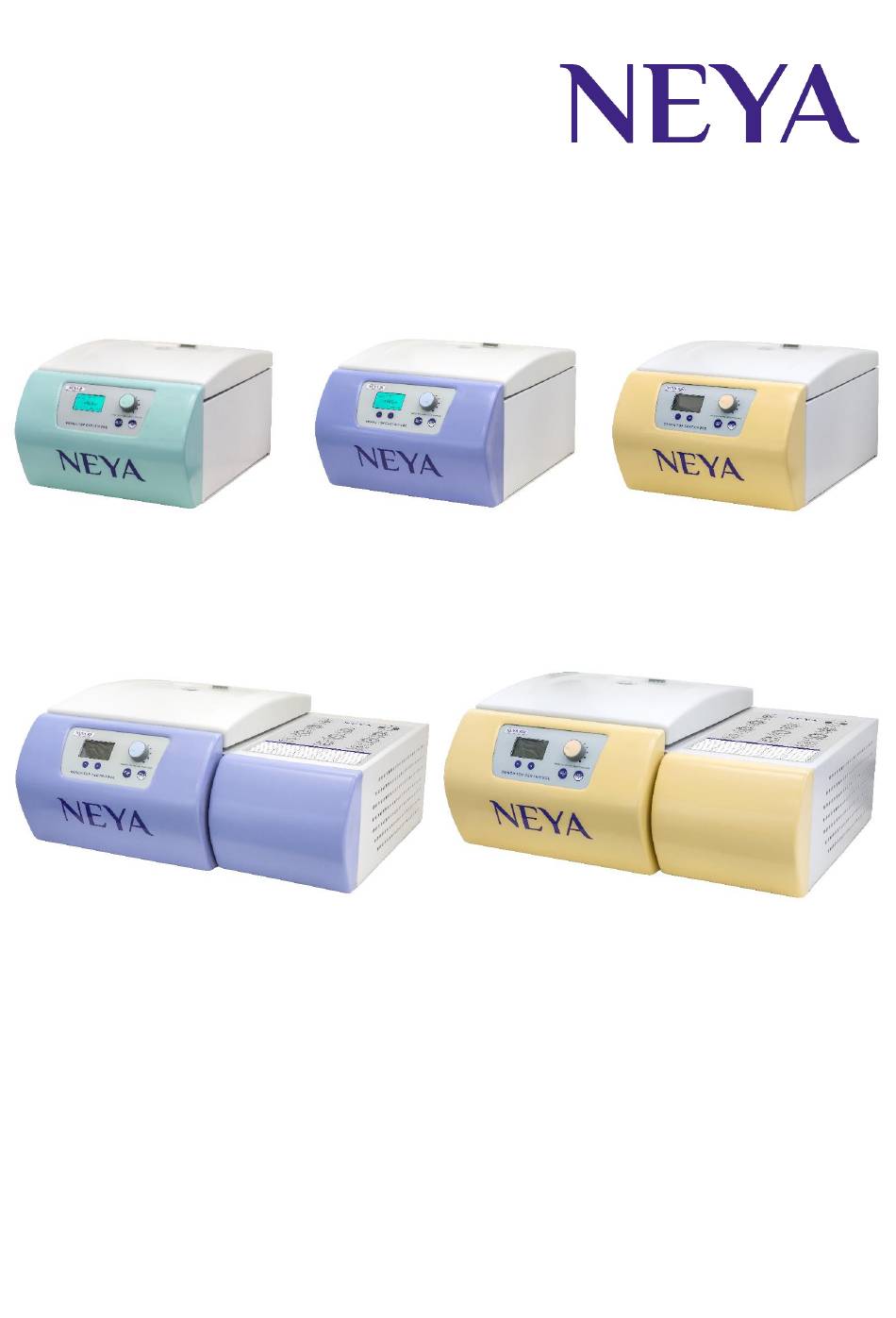

- Page 1 CENTRIFUGE Instruction and Maintenance Manual Extract from the original instructions NEYA 8 NEYA 10 NEYA 16 NEYA 10R NEYA 16R Manufacturer: Editing by the Authorized Representative: REMI ELEKTROTECHNIK LTD Survey 65/1, Valiv Village, Vasai (East), GIORGIO BORMAC s.r.l. Palghar-401 208...
-
Page 2: Table Of Contents
• Message “ERROR check imbalance switch” ..................18 • Setting of programs (if present) ....................... 18 • Setting of centrifugation cycle (NEYA 8 Only) .................. 19 • Selection of the program (if present) ....................20 UM Neya EN rev.0 28.02.2022... - Page 3 • Start/stop of a centrifugation cycle ....................20 • Block/unblock of a program (if present) ..................21 • PRECOOL function (if present) ......................22 • SPIN function (if present) ......................... 22 SYSTEM Menu ..........................23 • END cycle beep..........................23 •...
-
Page 4: Safety Informations
1. Safety informations • Definitions of warning words and symbols The safety information in this manual is very important to avoid personal injury, damage to the machine, accessories, malfunctions or incorrect results due to non-compliance with them. Read this manual carefully in its entirety and make sure you are familiar with the centrifuge before operating and starting to work with it. -
Page 5: Fundamental Requirements For Safe Use
NOTE This symbol highlights additional information and suggestions. ATTENTION This symbol highlights a general prohibition. • Fundamental requirements for safe use The correct functionality of the centrifuge and the safety of the operator are guaranteed only if all the following indications are respected: •... -
Page 6: Responsibility Of The Owner Of The Instrument
• Responsibility of the owner of the instrument The person who holds the ownership and who uses the centrifuge or authorizes its use by other people is the owner of the instrument and as such is responsible for the safety of all users of the machine and of third parties. The owner of the machine must inform users to use it safely in their workplace, to manage potential risks and providing the required protective devices. -
Page 7: General Warnings
2. General warnings Only authorized personnel can use this centrifuge. The user must go through the instructions and understand every aspect before using this machine. In case of malfunction, contact the supplier. This centrifuge must not be placed inside another unit or electrically or mechanically connected to another unit. -
Page 8: Biological Safety
• Biological safety During operation, the centrifuge can generate particles suspended in the air. Since these NEYA 8/10/16 models are not refrigerated centrifuges therefore they do not have a completely sealed chamber. This type of ventilated centrifuge helps to reduce the excess heat created by the friction of the rotor with air in the internal chamber, while the Neya 10R / 16R refrigerated models have a totally sealed chamber. -
Page 9: Ce Marking Data
3. CE marking data The equipment is made in accordance with Directive 2006/42/EC and the relevant and applicable Community Directives at the time of its placing on the market (fac-simile below). UM Neya EN rev.0 28.02.2022... -
Page 10: Guarantee
4. Guarantee Thank you for purchasing a centrifuge NEYA. In normal use conditions, the instrument is guaranteed for a period of 24 months from the date of purchase. The warranty is valid only if the product is original. It does not apply to any product or parts of it that have been damaged due to incorrect installation, improper connections, improper use, accident or abnormal conditions of operation. -
Page 11: Parts Of The Instrument
• Parts of the instrument Observation Signalisation window LED bar Lid of Display centrifugation bowl Commands panel Cooling system Figure 1 – Frontal view Lid opening Power supply handle socket Hole for emergency ON/OFF opening (under main switch the sticker) Figure 2 –... -
Page 12: Technical Specifications
6. Technical specifications Table 1 Features NEYA 8 Maximum capacity 4 x 175 ml (swing out) - 6 x 100 ml (fixed angle) Maximum speed 4.500 rpm (swing out) - 6.000 rpm (fixed angle) Setting RPM Setting RCF Display RCF Timer 00:30 ÷... -
Page 13: Display And Control Panel
Table 3 Features NEYA 16 NEYA 16R Maximum capacity 4 x 175 ml (swing out) - 6 x 100 ml (fixed angle) Maximum speed 4.500 rpm (swing out) - 16.000 rpm (fixed angle) Setting RPM Setting RCF Display RCF Timer 00:30 ÷... - Page 14 Figure 4 – Standby display Figure 5 – Working cycle Figure 6 – Protected program Figure 7 – Alarm signaling NOTE: some parameters of the above screens are different depending on the model centrifuge. Figure 8 – Frontal panel UM Neya EN rev.0 28.02.2022...
-
Page 15: Operation
RIGHT/LEFT Permits to scroll inside menus RIGHT Increases the value you are editing LEFT Decreases the value you are editing ENTER Chooses the program, confirms the selected menu or a modification Permits to start and stop a centrifugation cycle or to stop a precool START / STOP cycle In standby screen it permits to enter in SETUP menu, in all the rest... -
Page 16: Installation Of The Rotor
In that case, you must respect the instructions written on safety sticker that cover the emergency opening hole (see Figure 9). In case of emergency opening, wait at least 15 minutes before open the lid. Warranty and safety rules are not guaranteed if this sticker is broken. -
Page 17: Load And Balancing Of The Rotor
Hold the motor with one hand and with the other one screw the lock nut clockwise. Using the wrench supplied, tighten the lock nut until it is well locked (see side picture). Check that rotor is properly fixed trying to move it with both hands. •... - Page 18 Rotors are generally used completely full: all the places are filled with tubes. If the samples are not sufficient to fill all the places, it is recommended to use all of them filling the empty ones by tubes with water. This permits the correct symmetric balancing necessary for acceleration and deceleration phases more linear.
-
Page 19: Message "Motor Imbalance
• Setting of programs (if present) The follow instructions are valid for centrifuges NEYA 10/10R and NEYA 16/16R. To set centrifugation parameters for NEYA 8 please refer to paragraph 8. With closed lid and centrifuge in standby mode (see Figure 4), press shortly SETUP/ESC key, display goes into SETUP menu and word “PROGRAM”... -
Page 20: Setting Of Centrifugation Cycle (Neya 8 Only)
“parameters saved” shortly appears on display and it automatically returns in standby (see Figure 4). • Setting of centrifugation cycle (NEYA 8 Only) With closed lid and centrifuge in standby mode (see Figure 4), press shortly SETUP/ESC key, display goes into SETUP menu of centrifugation parameters. -
Page 21: Selection Of The Program (If Present)
Figure 15 Note: during the centrifugation cycle it is possible to see alternatively the speed in “rcf” and “rpm” pressing the multifunction key F2 (except NEYA 8). UM Neya EN rev.0 28.02.2022... -
Page 22: Block/Unblock Of A Program (If Present)
At the end of set timer or pressing START/STOP button the centrifugation cycle stops and the centrifuge starts to decelerate. When rotor is completely stopped, if it is not excluded by the operator in SYSTEM menu, a short intermittent beep alerts the user that the spin cycle has ended. Note: simultaneously to the sound alert and until the lid is opened, the LED bar flashes to indicate that the spin cycle has been completed (see Figure 16). -
Page 23: Precool Function (If Present)
Turn the knob if you desire to modify the program number to be blocked/unblocked. To block or unblock the selected program, keep contemporary pressed both the multifunction keys F1 and F2 for some seconds (about 5). The unblocked program become blocked with purple screen (see Figure 19) and viceversa. x x x x x x x x x... -
Page 24: System Menu
9. SYSTEM Menu In the menu there are some settings of the centrifuge that operator can modify. Figure 22 With closed lid and the centrifuge in standby mode (see Picture 4), press shortly SETUP/ESC button, the display passes in SETUP menu and the word “PROGRAM” starts to blink (see Picture 22). Turn the knob to move the selection on “SYSTEM”... -
Page 25: Cleaning And Maintenance
Cleaning and maintenance ATTENTION: All maintenance operations must be carried out by qualified and authorized personnel, equipped with gloves and protective clothing. It is forbidden to repair or clean moving parts. In any case, if the equipment does not appear suitable for correct and safe operation, it would be necessary to PUT IT OUT OF SERVICE until the repair or replacement of the damaged parts. -
Page 26: Troubleshooting Guide
Troubleshooting Guide The following table lists the main problems and possible solutions. Defect Solution Fuse that blows immediately on power up Replace the defective fuse and restart. If the anomaly persists, 'ON' contact the supplier's technical assistance. Check the power socket and make sure that the earth is present. The centrifuge causes mild electric shocks Check the current capacity of the 230 V AC power line that is sufficient and not less than 5 A. -
Page 27: Spare Parts
12. Spare parts Contact the after-sales service. Use only original spare parts. 13. Disposal of electronic equipment This equipment is subject to regulations for electronic devices. Dispose of in accordance with local regulations. The illegal disposal of electrical and electronic equipment is punished with an administrative fine.
