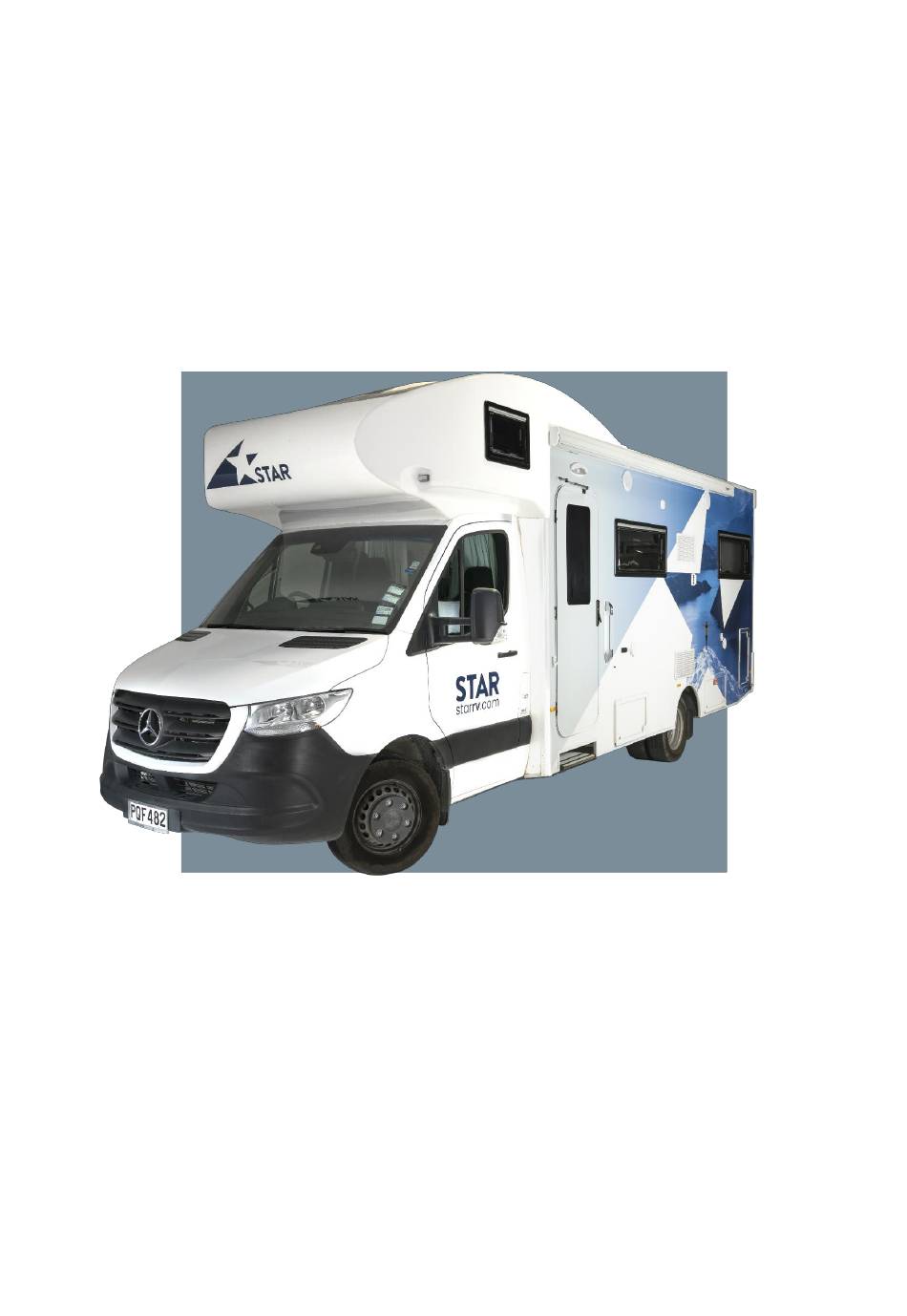

- Page 1 Polaris6 New Zealand Nova - Merc Self-contained Vehicle manual. 2024005 Vehicle Manual Templates Round 1...
-
Page 2: Table Of Contents
Try our online help hub. vehicle P6 Nova MANUAL helphub.starrvcom helphub.jucy.com Contents ........Description of keys ........Vehicle equipment ........Starting the vehicle ........Windows & vents ........... Entry door ..........Outdoor step ............. Seatbelts ......240-volt electrical system ......12-volt electrical system .......... -
Page 3: Description Of Keys
Try our online help hub. Description of keys helphub.starrvcom helphub.jucy.com IGNITION KEY: Use the indicated ignition key to: This needs to be close by the Start/Stop button for you to start the vehicle. SIDE ENTRY DOOR: Use this key to lock or unlock the vehicle’s side entry door lock. -
Page 4: Vehicle Equipment
Try our online help hub. Vehicle equipment helphub.starrvcom helphub.jucy.com FIRE EXTINGUISHER Each vehicle is equipped with a dry chemical fire extinguisher, meticulously selected to address both type B fires (involving grease and liquids) and type C fires (involving electrical elements). To deploy the extinguisher effectively, grasp the ring situated atop the bottle, direct the nozzle towards the top of the flames, and press down the lever firmly. -
Page 5: Starting The Vehicle
Try our online help hub. Starting the vehicle helphub.starrvcom helphub.jucy.com Gear stick must be in PARK (P) and your foot on the pedal in order for the vehicle to start. The dashboard will display a ‘P’ indicating that the vehicle is in park. Start the vehicle using the ignition the start/stop button. -
Page 6: Windows & Vents
Try our online help hub. Windows & vents helphub.starrvcom helphub.jucy.com WINDOWS To open the windows on board your vehicle, turn the handles inwards. Push the window out and click the latch in place. The window has a mosquito net and a sun blackout blind. -
Page 7: Entry Door
Try our online help hub. Entry door helphub.starrvcom helphub.jucy.com The entrance door may be opened from outside the vehicle by pulling the door handle outward. To open the door from the inside, pull the door handle downwards and apply slight pressure to the door. -
Page 8: Outdoor Step
Try our online help hub. Outdoor step helphub.starrvcom helphub.jucy.com Your motorhome is equipped with a manual side doorstep. To use, simply grip the middle of the step and pull out until it locks into place. To close push it towards the cabin until it clicks back into place. Please note: Do not leave the step out while driving as this may cause damage to the Cabin exterior and step or surrounding objects. -
Page 9: Seatbelts
Try our online help hub. Seatbelts helphub.starrvcom helphub.jucy.com It is the law in New Zealand that all passengers in a motorhome must be properly restrained with seatbelts. Vehicles are equipped with both lap and shoulder belts. Only seats fitted with seatbelts can be occupied while the vehicle is moving. To use, insert the belt tongue into the correct buckle until you feel it click and latch. -
Page 10: 240-Volt Electrical System
If above is not working then try and change the 240v plug (usually can hire these at the campsite). Or Try another power campsite *If all above fails then please call the Star RV helpline. manual VEHICLE Page 11 of 37... -
Page 11: 12-Volt Electrical System
Try our online help hub. 12-volt electrical system helphub.starrvcom helphub.jucy.com Your motorhome has two batteries, one in the engine compartment and one under the passenger’s seat. The battery inside the cabin is also called the auxiliary battery. The auxiliary battery operates the TV, water pump, fridge and interior lights, extractor fan and Toilet and is charged by both the alternator when the vehicle is being driven and the 240-volt system when it is plugged in to a mains power source. -
Page 12: Microwave
Problem: Microwave is operable (light on, turntable working) but is not heating food. Possible cause: Microwave may be broken. Please call the Star RV on roads team for assistance. Problem: Sparks or arcing when microwave is turned on. Possible cause: Metal object in microwave. -
Page 13: Freshwater Tank And Water Access
Try our online help hub. Freshwater tank and water access helphub.starrvcom helphub.jucy.com On board the vehicle is a freshwater system consisting of a water pump and freshwater tank. The water tank has a 120L freshwater tank and is located on the passenger side of the vehicle. -
Page 14: Grey Water Tank
Try our online help hub. Grey water tank helphub.starrvcom helphub.jucy.com The grey water holding tank collects wastewater from the kitchen, bathroom sink and shower. You can check the level of your water on the Domestic panel switchboard. This is labelled ‘’waste” It is not uncommon for the greywater level indicator to give an inaccurate reading. -
Page 15: Water Pump
Try our online help hub. Water pump helphub.starrvcom helphub.jucy.com To use water on board the vehicle, ensure there is water in your freshwater tank outside. On the switchboard, Push the PUMP switch down. You will hear the pump quietly start up. The pump operates as part of the 12-volt system. -
Page 16: Hot Water Heater
If everything is on then turn the switch back on. If the light is still bright and hasn’t dimmed. Turn off the switch leave for 15 seconds then turn on. Repeat this step another 3 times if it doesn’t dim. If it still not working please call the Star Help line. manual... -
Page 17: Toilet Use
Try our online help hub. Toilet use helphub.starrvcom helphub.jucy.com Turn on the water pump on the control panel. 2. Push the blue button on the toilet to fill the base with water (Diagram A) Diagram A 3. Once finished, adjust the lever on the bottom of the toilet to empty into cassette (Diagram B) Diagram B 4. -
Page 18: Toilet Cassette
Try our online help hub. Toilet cassette helphub.starrvcom helphub.jucy.com It is highly recommended to regularly empty the toilet cassette, and it is mandatory to empty and clean it before returning the vehicle to the depot. To empty the cassette: 1. Make sure the grey flush lever is in the closed position. -
Page 19: Gas Bottle
3. Shut off the gas supply at the gas bottle using the valve on top of the bottle. 4. Open doors, windows, hatches, and any other ventilation openings. 5. Evacuate the area until the gas odour dissipates. 6. Contact STAR RV for assistance. manual VEHICLE Page 20 of 37... -
Page 20: Stove Top & Grill
Try our online help hub. Stove top & grill helphub.starrvcom helphub.jucy.com Warning: It is not safe to use cooking appliances for comfort heating. How it operates The motorhome is equipped with 1 electric hob, 3 gas hobs and a gas stove which uses LPG. -
Page 21: Heater
Example: F 03 = Pause Pause Error Code Diagnostic Remedy Control unit Call the star help line error No Start Call the Star help line Under/over Check the battery level operating level for Voltage heater is 10.5v-15v Overheating Turn off heater and wait 20min and restart. -
Page 22: Fridge
Discharged batteries. ** If above action fails please call Star help line manual VEHICLE Page 23 of 37 2024005 Vehicle Manual Templates Round 1... -
Page 23: Lights
Try our online help hub. Lights helphub.starrvcom helphub.jucy.com To use the cabin lights, turn on the light switch on the Domestic panel by holding the power button. Some lights can be individually switch off. Switches are be located on the lights themselves. -
Page 24: Television
Try our online help hub. Television helphub.starrvcom helphub.jucy.com Each vehicle is fitted with a DVD/television for your entertainment. The TV operates on both 12- volt and 240-volt mains power. Kindly note that television reception may vary in rural areas and the TV receptions works a lot better when plugged into a powered campsite. -
Page 25: Bed Conversion
Try our online help hub. Bed conversion helphub.starrvcom helphub.jucy.com There are three double beds on board your motorhome. To make up each of the beds, please follow these instructions: BED 1 (middle dinette) Step 1: Remove the tabletop from the wall by pushing the clips down. Fold the leg and stow away behind front passenger seat. - Page 26 Try our online help hub. helphub.starrvcom helphub.jucy.com BED 2 (Rear dinette) Step 1: Remove the tabletop from the table leg and store table behind drivers seat and the table leg in the cupboard by the cabin door Step 2: Put aside swabs B and D to access the 2 panel boards. Step 3: Unclip the 2 panels (one on each side of the seat) and lay them in the gap where the dining table is supposed to be Step 4: Restore Swab B in the original position and add swab X on top of the 2...
- Page 27 Try our online help hub. BED 3 (Overhead bed) helphub.starrvcom helphub.jucy.com The overhead bed can be accessed using the ladder stored in the cupboard next to the cabin door. This ladder must be connected to the gap provided. manual VEHICLE Page 28 of 37 2024005 Vehicle Manual Templates Round 1...
-
Page 28: Awning
Try our online help hub. Awning helphub.starrvcom helphub.jucy.com To roll out the awning: Release the 2 hooks from the bolts at the top of the awning arms by pushing them up with the Pole. 2. Un tighten (anti clockwise) the 2 black bolts on both arms of the awning. Using the pole hook into the eye bolt in the middle or the awning and pull away from the motorhome. - Page 29 Try our online help hub. To roll up the awning: Loosen the blackbolts and using the Pole, insert into the eye bolt. Push the awning up and towards the motorhome. The awning will automatically role back into place. 2. Tighten up the black bolts and secure the top hooks manual VEHICLE Page 30 of 37...
-
Page 30: Diesel Fuel
Once filled with diesel, place the fuel cap on the inlet and turn the key clockwise to lock it. IMPORTANT: The vehicle accepts diesel fuel only. If you fill the vehicle with unleaded, water or AdBlue, please do not start the engine and call STAR RV Roadside Assistance immediately. manual... -
Page 31: Adblue
Try our online help hub. AdBlue helphub.starrvcom helphub.jucy.com Every 2500 km the vehicle will require AdBlue to be refilled. If the AdBlue level is low, a warning light or symbol illuminates on the dashboard and a message advises you to top up the AdBlue tank. Please find the nearest fuel station or auto shop which supplies AdBlue and refill the vehicle with AdBlue as soon as possible. -
Page 32: Jack & Spare Tyre
Try our online help hub. Jack & spare tyre helphub.starrvcom To find the jack tools in the motorhome, look on the floor in front of the passenger seat. To access the compartment, use a butter knife or any similar tool to gently unscrew the compartment cover.
