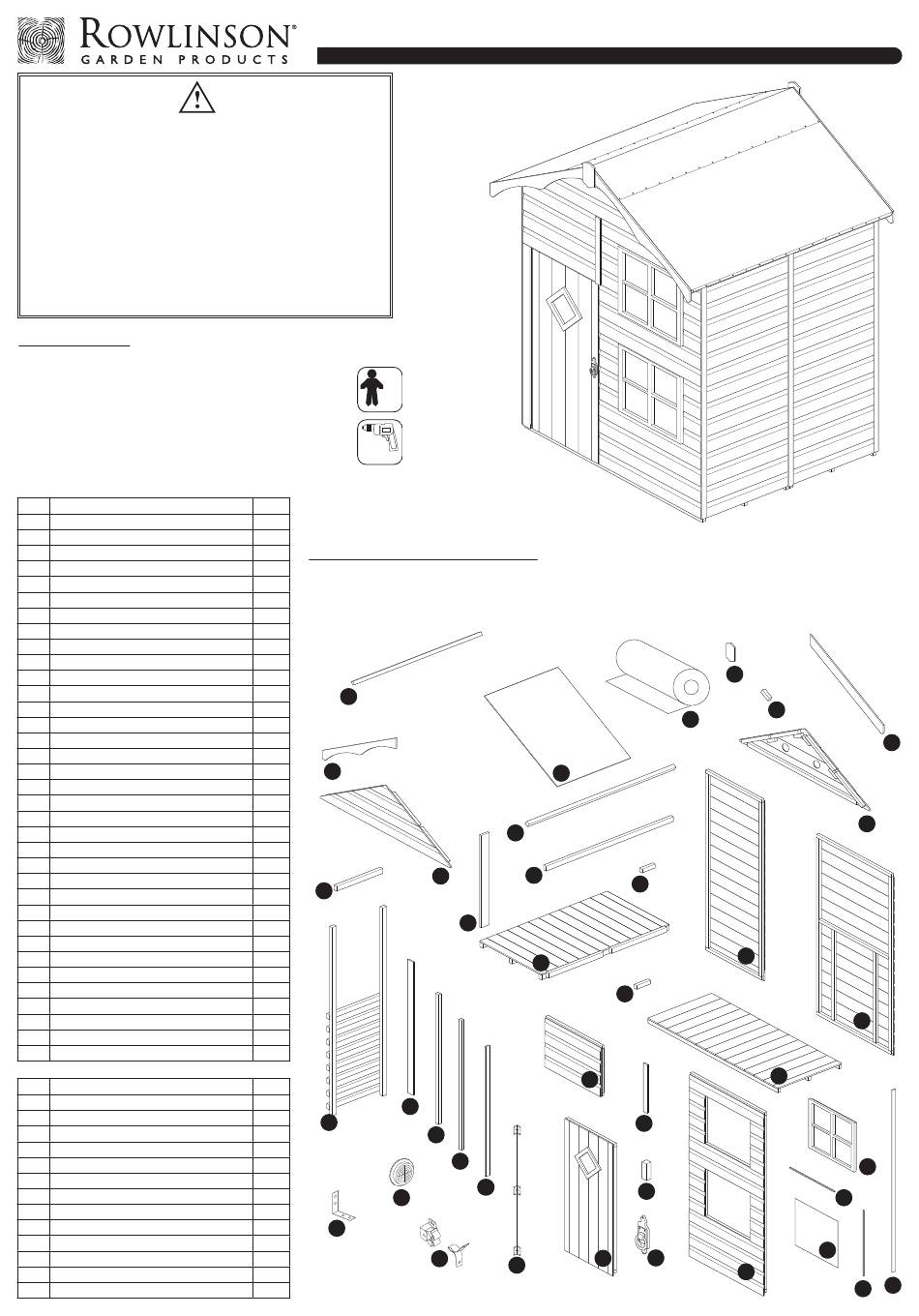

Rowlinson Playaway Townhouse Assembly Instructions Manual

IMPORTANT SAFETY INFORMATION
• Warning - Not suitable for children under 36 months.
• Warning - Suitable for children up to 50Kg
(maximum 6 children).
• Warning - Only 2 children on the landing at anyone time.
• Warning - Only for domestic use.
• Warning - For outdoor use.
• Warning - Adult assembly is required.
Further Information regarding safety and maintenance can
be found on the back page. Please retain these instructions
for future reference.
Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow the
step by step guide. The instruction sheet is only a guide
to the assembly. Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than two adults.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
No. Components
1 Floor panel
2 Floor support block
(35x28x150mm)
3 Small wall panel
4 Landing support back wall panel
5 Front window wall panel
6 Door header panel
7 Front apex panel
8 Rear apex panel with vent holes
9 Corner upright
(35x28x1220mm)
10 Door frame upright
(28x28x1220mm)
11 Door pillar strip
(63x12x1250mm)
12 Door hinge strip
(40x12x1220mm)
13 Window frame
14 Window glazing
(478x398mm)
15 Horizontal beading
(10x10x479mm)
16 Vertical beading
(10x10x382mm)
17 Landing support block
(35x28x100mm)
18 Landing floor
19 Fence top rail
20 Ladder attachment frame
(45x32x500mm)
21 Ladder
22 Fence railings
(89x16x865mm)
23 Roof purlin
(35x28x1374mm)
24 Roof panel
25 Felt battens
(28x28x1590mm)
26 Felt batten blocks
(28x28x140mm)
27 Door
28 Door hinge
29 Roofing felt roll
(5m)
30 Side/rear coverstrip
(12x40x1700mm)
31 Front coverstrip
(12x40x455mm)
32 Shaped bargeboard
33 Plain bargeboard
34 Finial
35 Catch mounting block
(28x28x80mm)
No. Fixing Kit
36 Metal L-Brackets
37 Vent
38 Roller catch kit
39 Door handle
40 70mm screws
41 50mm screws
42 35mm screws
43 25mm screws
44 19mm black round head screws
45 10mm round head screws
46 30mm nails
47 20mm nails
48 10mm felt nails
Playaway Townhouse
Assembly Instructions
x2
Drill
Qty.
2
1
Recommended tools for assembly
5
1
• Power Drill/Screwdriver
1
• Cross-head drill bit
1
• 3mm diameter drill bit
1
• Spirit level
1
1
1
1
1
25
2
2
4
4
32
1
1
1
1
1
6
4
4
20
2
8
1
1
1
7
1
2
2
2
1
Qty.
2
11
2
21
1
1
2
93
65
37
32
4 36
4
83
24
110
• Tape measure
• Hammer
• Sharp knife
• Silicon sealant
24
23
19
7
22
18
6
9
10
12
38 27
28
English SS644
34
26
29
17
3
2
1
31
35
39
5
33
8
4
13
15
14
30
16
