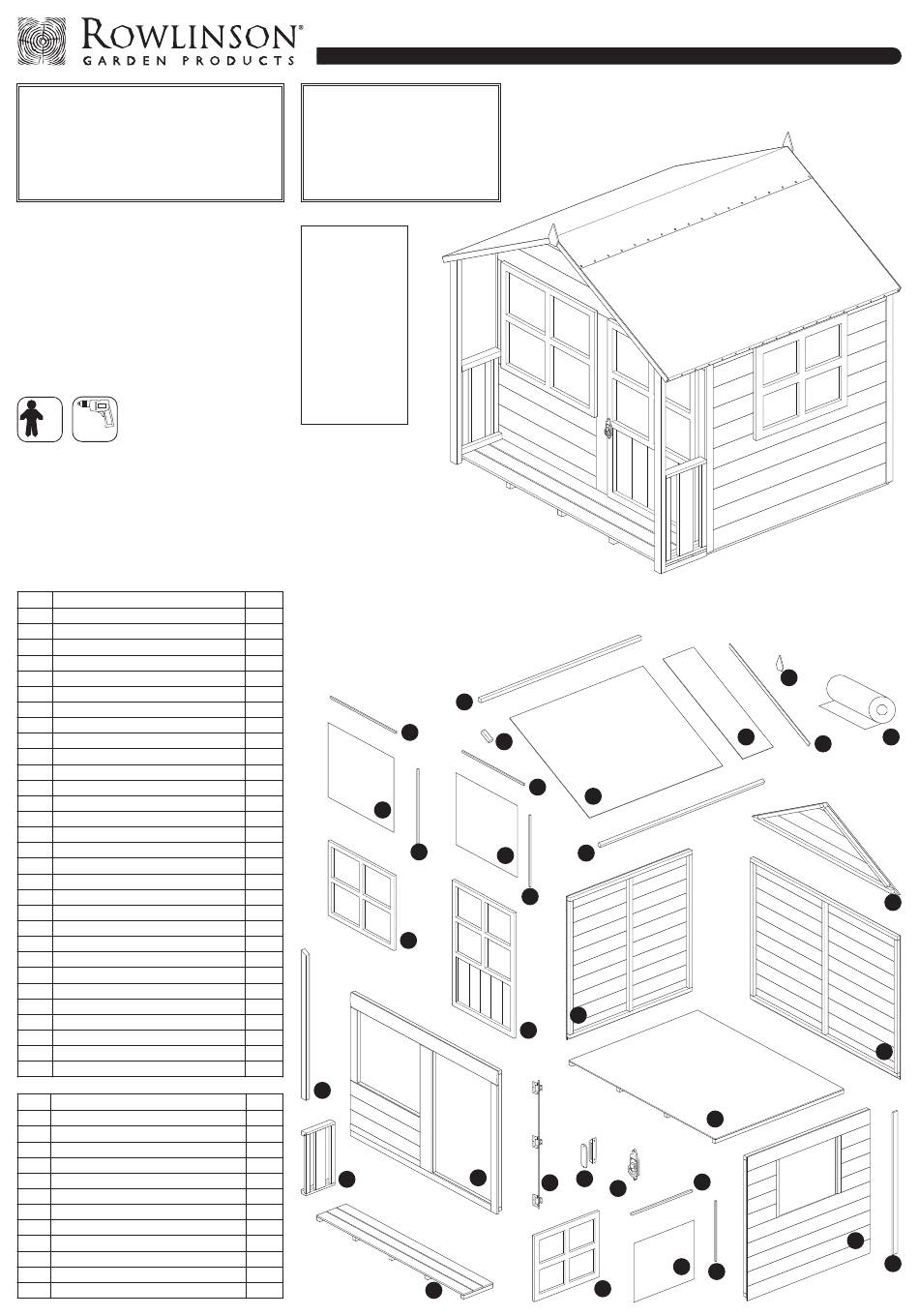

Rowlinson Playaway House Assembly Instructions

IMPORTANT SAFETY
INFORMATION
Adult assembly is required. Checks and
maintenance needs to be carried out on
the main parts (fixings etc.) at regular
intervals. If these checks are not carried
out the product could become unsafe.

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then follow
the easy step by step guide.
•
The instruction sheet is only a guide to the
assembly. Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than
two people.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for assembly
•
Cordless drill/screwdriver
•
Drill with 2mm drill bit
•
Hammer
•
Spirit level
•
Sharp knife
•
Silicon sealant
No. Components
1 Floor
2 Side panel
3 Back panel
4 Window side panel
5 Front panel
6 Apex panel
7 Roof purlin
(28 x 28 x 1178mm)
8 Roof panel
(8 x 915 x 1220mm)
9 Roof panel
(8 x 915 x 280mm)
10 Felt batten
(28 x 28 x 1500mm)
11 Roofing felt
(4m)
12 Bargeboard
13 Roof block
14 Corner coverstrip
15 Veranda floor
16 Veranda fence
17 Veranda roof support
18 Door
19 Front window
(650 x 590mm)
20 Side window
(550 x 470mm)
21 Perspex for door
(520 x 545mm)
22 Perspex for front window
(575 x 520mm)
23 Perspex for side window
(478 x 398mm)
24 Door beading
(10 x 10 x 545mm)
25 Door beading
(10 x 10 x 503mm)
26 Window beading
(10 x 10 x 580mm
27 Window beading
(10 x 10 x 503mm)
28 Window beading
(10 x 10 x 479mm)
29 Window beading
(10 x 10 x 380mm)
30 Door hinge
No. Fixing Kit
31 Finials
32 Door handle
33 Magnetic catch
34 50mm screws
35 32mm screws
36 25mm screws
37 19mm round head screws
38 19mm black round head screws
39 12mm screws
40 30mm nails
41 20mm nails
42 10mm felt nails
Playaway House
Assembly Instructions
WARNING
Not suitable for children under
36 months due to small parts
and sharp points.
For family domestic use only.
For outdoor use.
Dimensions
Overall external
Height = 1620mm
Width = 1600mm
Depth = 1565mm
Footprint
Width = 1468mm
Depth = 1455mm
Min. base area
Width = 1518mm
Depth = 1505mm
Qty.
1
1
1
1
1
2
1
2
27
2
2
1
4
4
22
4
1
2
26
2
1
1
1
1
19
1
1
2
2
2
2
2
2
1
17
Qty.
2
1
1
40
16
8
21
2
4
2
78
36
70
7
13
25
8
10
21
24
2
18
5
33
30
20
15
English SS190B
31
9
1
29
32
23
28
11
12
6
3
4
14
