U LT RA S PACE SAV ER
Double Capacity, Modular Construction

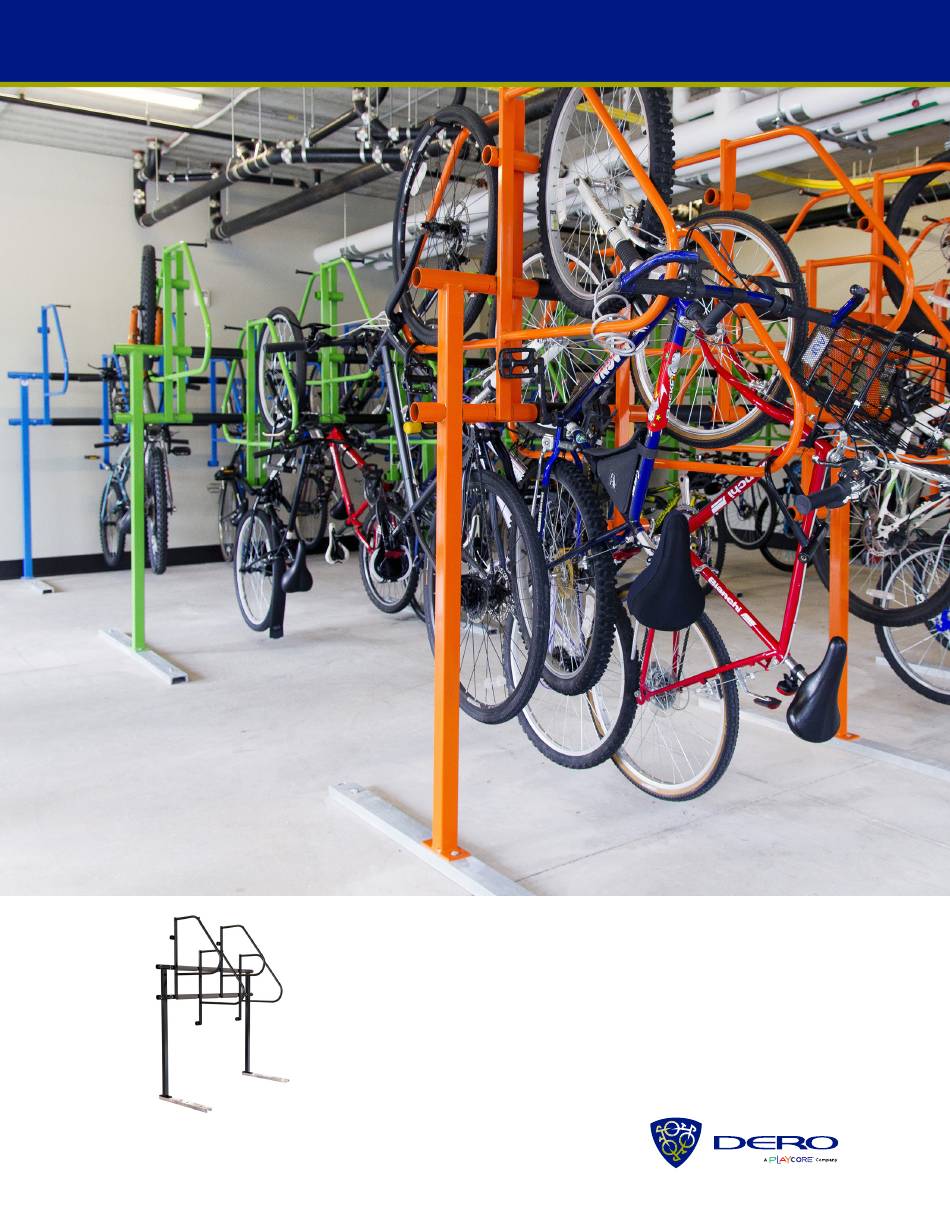

The Ultra Space Saver provides easy and ample space for u-lock security on
nearly any bike, including bikes with fenders. Thanks to design enhancements,
the double-sided Ultra Space Saver parks more than double the capacity of
a standard bike rack. The Ultra Space Saver is an easy to install, modular
system. It can be made to fit in nearly any space. Options include: wall-mount,
floor-mount, and double-sided.
© 2017 Dero
Advertisement
Related Manuals for DERO ULTRA SPACE SAVER
Summary of Contents for DERO ULTRA SPACE SAVER
- Page 1 Ultra Space Saver parks more than double the capacity of a standard bike rack. The Ultra Space Saver is an easy to install, modular system. It can be made to fit in nearly any space. Options include: wall-mount, floor-mount, and double-sided.
-
Page 2: Mount Options
Bronze Silver RAL 6018 RAL 6016 RAL 8014 9007 Dark Purple Flat Black Wine Red Beige Iron Gray RAL 3005 RAL 1001 7011 Galvanized Thermoplastic *Shown with optional tire stop Black Green Blue Gray Brown www.dero.com 1-888-337-6729 © 2017 Dero... - Page 3 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 60 bicycles. Aisle The Ultra Space Saver Squared parks one bike every 16” with a typical bike extending out 40” 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 from the wall.
-
Page 4: Installation Instructions
B2-B7 in the layout. This number corresponds to the length of crossbeams to be installed. In the example provided below the Ultra Space Saver is to be installed starting with two B4 units, which have 44” crossbeams, followed by a B5, which has 76”... -
Page 5: Tools Needed
ULTRA SPACE SAVER Installation Instructions – Wall Mount TOOLS NEEDED NOTE Before installing make sure the wall is strong enough to 9/16” Wrench/Socket accommodate the rack fully loaded with bikes. Steel stud walls are 3/8” or 1/2” Masonry Drill Bit... - Page 6 ULTRA SPACE SAVER Installation Instructions – Wall Mount Stagger height of arms 3” Spacer Thread 3/8” by 3/4” tightening bolts into holes in bracket. Insert crossbeams into bracket. Slide on arms and spacers, make sure arms are staggered. At end of last arm place 3” spacers and install end bracket, making sure cross beams are level.
- Page 7 ULTRA SPACE SAVER Installation Instructions – Floor Mount TOOLS NEEDED 9/16” Wrench/Socket 3/8” Masonry Drill Bit Tape Measure Drill (Hammer drill recommended) Hammer 3” 3” Mount double-sided rack at center holes Mount single-sided rack at end of foot Measure out space. Attach feet to uprights with carriage bolts provided.
- Page 8 ULTRA SPACE SAVER Installation Instructions – Floor Mount Double Sided Single Sided Lay assembled uprights with crossbeams attached on their side so crossbeams are facing up. Slide first hanger arm on. Then slide the plastic spacers on. Note staggered height Slide next arm on but make sure to stagger 3”...
- Page 9 ULTRA SPACE SAVER Installation Instructions – Floor Mount Anchor holes Tip rack up and attach the second upright. Tighten bolts. Slide assembled rack into final location. For add-on units repeat steps. Wedge anchor runs through rail into concrete Anchor holes...
- Page 10 ULTRA SPACE SAVER Installation Instructions – Tire Stop (optional) Attach tire stop to uprights with supplied hardware Continue attaching tire stops if using a modular system www.dero.com 1-888-337-6729 © 2017 Dero...
