DERO CYCLE STATION Parts List

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
CYCLE STATION

Parts List

Polycarbonate Panel
Wire Mesh Panel
Upright
Weldment
Decker Weldments
Door
Door Polycarbonate
Upright Dero
Truss Half 1
Weldment
Truss Half 2
Weldment
www.dero.com
© 2018 Dero
Dero Decker
Beam Weldment
Louver Front
Louver Side
Panel Support
Front Weldment
Panel
Panel Support
Side Weldment
Purlin Panel
Weldment
Weldment
|
1-888-337-6729
Purlin
Type S
Deck

Advertisement

loading
Need help?

Need help?

Do you have a question about the CYCLE STATION and is the answer not in the manual?

Questions and answers

Related Manuals for DERO CYCLE STATION

Summary of Contents for DERO CYCLE STATION

  • Page 1: Parts List

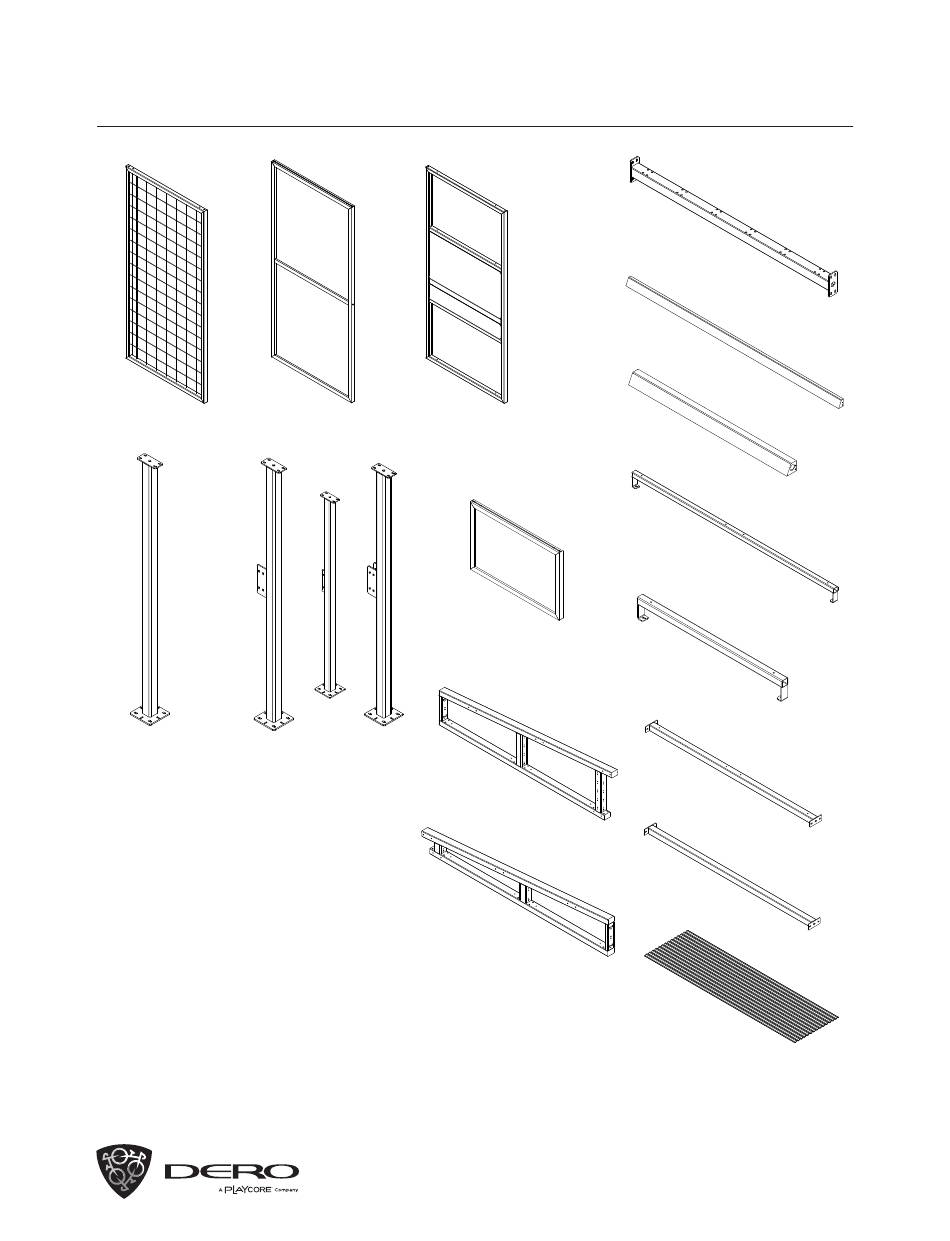

    CYCLE STATION Parts List Dero Decker Beam Weldment Louver Front Polycarbonate Panel Wire Mesh Panel Door Louver Side Panel Support Front Weldment Door Polycarbonate Panel Panel Support Side Weldment Upright Upright Dero Weldment Decker Weldments Truss Half 1 Purlin Panel...
  • Page 2 CYCLE STATION Footing Details www.dero.com 1-888-337-6729 © 2018 Dero...

  • Page 3: Installation Instructions

    CYCLE STATION Installation Instructions TOOLS NEEDED Hammer Drill Wrenches: 7/16”, 1/2”, 9/16”, 3/4”, 15/16”, 1 1/8”, 13mm Masonry Bits: 3/8”, 5/8” Socket Wrench with Sockets: 7/16”, 1/2”, 9/16”, 3/4”, 15/16”, 1 1/8” Large Hammer Spud Wrench Level Drill Chalk Line Drill Bit 7/32”...
  • Page 4 CYCLE STATION Installation Instructions For shelters with Dero Decker racks, install the DD beams with (8) 5/8” x 2” carriage bolts, (8) lock washers, and (8) nuts each. Leave finger-tight. Carriage bolts at the end of the shelter should have the heads facing out. See shelter assembly drawing for specific DD beam placement locations.
  • Page 5 CYCLE STATION Installation Instructions Once all the panels are properly placed, tighten all the upright anchors and bolts attaching the trusses. The carriage bolts attaching the DD beams can also be tightened. Install front and side louvers with (4) ¼” x 5”...
  • Page 6 CYCLE STATION Installation Instructions See shelter assembly drawing for specific bike rack placement locations. Install strike guard with (4) self-drilling screws. Door should close just enough to allow the latch to engage the strike. www.dero.com 1-888-337-6729 © 2018 Dero...
